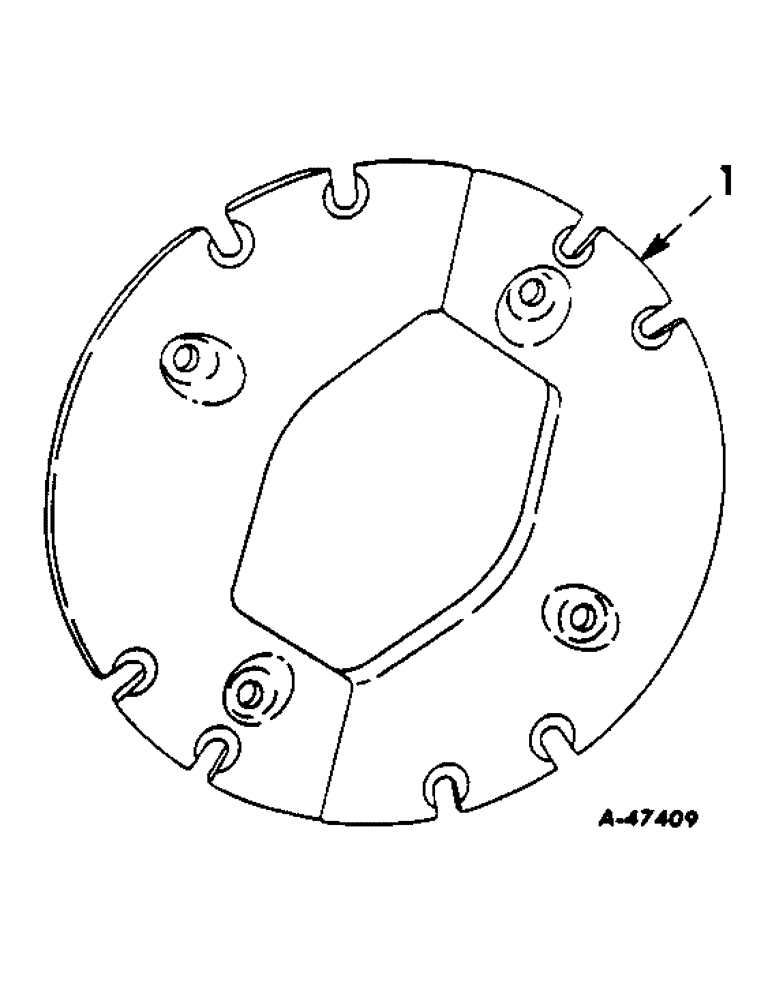

Запчасти Case IH 350 (327) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPLIT TYPE, SPECIAL, FOR TRACTORS EQUIPPED WITH PNEUMATIC TIRES Attachments

1

366109R1

WEIGHT

half rear wheel (approx. 75 lbs.) (A only)

4шт.

366110R1

BOLT,Sq Hd, 3/4" - 10 x 4 3/4"

machine, sq-hd, cd-pltd., 3/4-10 NC x 4-3/4" (A only)

8шт.

280954

NUT,3/4"-10, G5

(A only) 3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

jam, hex., cd-pltd., 3/4-10 NC (A only)

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4" (A only)

8шт.

361109R1

WEIGHT, half rear wheel (approx. 75 lbs.) (B only)

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

machine, sq-hd, cd-pltd., 3/4-10 NC x 3-1/4" (B only)

8шт.

280954

NUT,3/4"-10, G5

(B only) 3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

jam, hex., cd-pltd., 3/4-10 NC (B only)

8шт.

366112R1

WASHER

plain, 25/32" ID x 1-1/4" OD x No. 16 ga. (B only)

16шт.

366122R91

BOLT

PACKAGE, hardware, rear wheel weight mounting (first set), consists of: (8) bolt 366110R91, (8) nut 220086, (8) nut 426897, (8) washer 131046 (A only)

1шт.

366123R91

BOLT

PACKAGE, hardware, rear wheel weight mounting (second or third set), consists of: (8) bolt 366111R1, (8) nut 220086, (8) nut 426897, (16) washer 366112R1 (B only)

1шт.
