Запчасти Case IH 350 (324) - ATTACHMENTS, FRONT WHEEL WEIGHTS, SPECIAL, FOR TRACTORS EQUIPPED WITH PNEUMATIC TIRE FRONT WHEELS Attachments

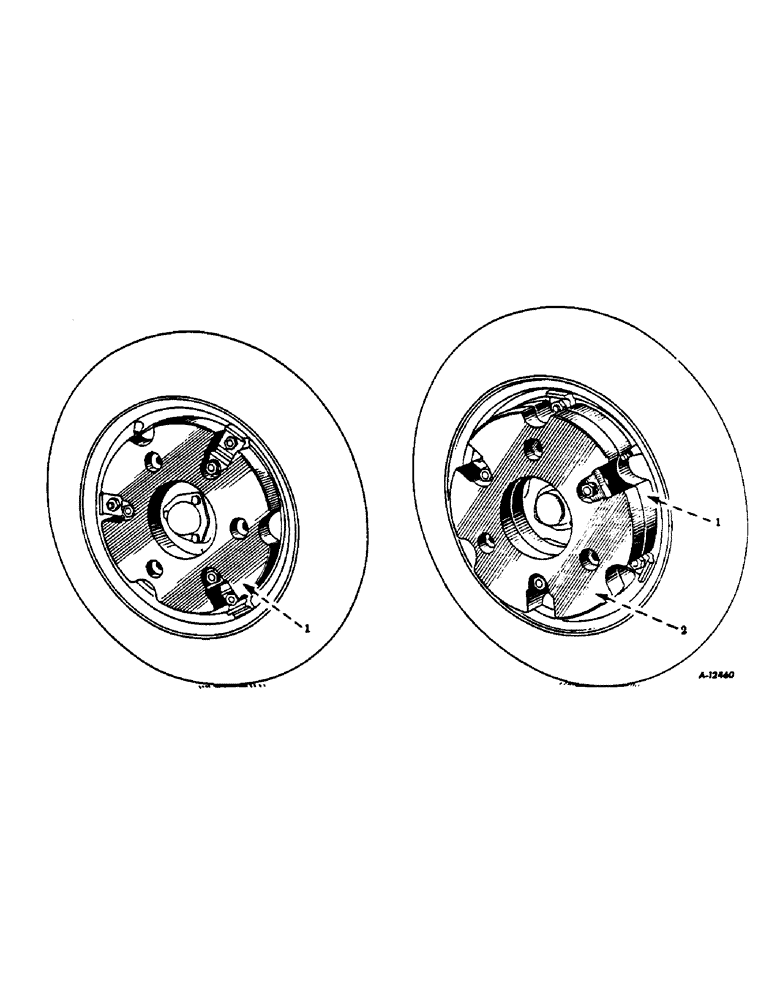

Схема запчастей Case IH 350 - (324) - ATTACHMENTS, FRONT WHEEL WEIGHTS, SPECIAL, FOR TRACTORS EQUIPPED WITH PNEUMATIC TIRE FRONT WHEELS Attachments
2
1
1

Артикул

Название

Примечание

Количество

1

6788D

WEIGHT, front wheel (first) (approx. 42-1/2 lbs.) (A only)

2шт.

13370R1

BOLT, machine, sq-hd, 1/2-13 NC x 2-3/8" (A only)

6шт.

102637

NUT,1/2"-13, G5

(A only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A only) 1/2"

6шт.

1

9042D

WEIGHT, front wheel (first) (approx. 73 lbs.) (B only)

2шт.

13359R1

BOLT, machine, sq-hd, 1/2-13 NC x 2-1/4 (B only)

6шт.

102637

NUT,1/2"-13, G5

(B only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B only) 1/2"

6шт.

2

6788D

WEIGHT, front wheel (second) (approx. 42-1/2 lbs) (C only)

2шт.

13416R1

BOLT

machine, sq-hd, 1/2-13 NC x 3" (C only)

6шт.

102637

NUT,1/2"-13, G5

(C only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (C only) 1/2"

6шт.

2

9042D

WEIGHT, front wheel (second) (approx. 73 lbs) (D only)

2шт.

13433R1

BOLT, machine, sq-hd, 1/2-13 NC x 3-1/4" (D only)

6шт.

102637

NUT,1/2"-13, G5

(D only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (D only) 1/2"

6шт.

366025R91

BOLT (MACHINE)

PACKAGE, hardware, front wheel weight mounting (first set), consists of: (6) bolt 13370R1, (6) nut 102637, (6) washer 103323 (A only)

1шт.

366027R91

PACKAGE, hardware, front wheel weight mounting (first set), consists of: (6) bolt 13359R1, (6) nut 102637, (6) washer 103323 (B only)

1шт.

366026R91

BOLT (MACHINE)

PACKAGE, hardware, front wheel weight mounting (second set), consists of: (6) bolt 13416R1, (6) nut 102637, (6) washer 103323 (C only)

1шт.

366028R91

PACKAGE, hardware, front wheel weight mounting (second set), consists of: (6) bolt 13433R1, (6) nut 102637, (6) washer 103323 (D only)

1шт.

Выбрано товаров: 20
