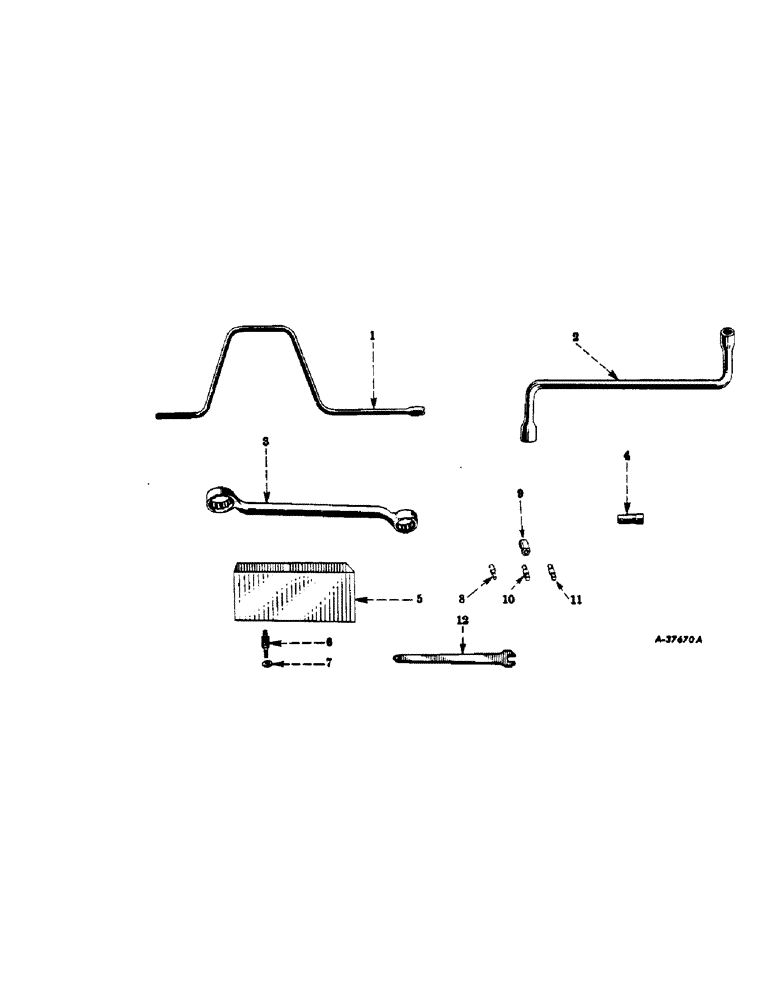

Запчасти Case IH 350 (248A) - CHASSIS, TOOLS AND TOOL BOX (12) - CHASSIS

1

30011DA

WRENCH, drawbar (1-5/16")

1шт.

2

66335D

WRENCH, socket, double end (1-1/64" and 1-9/64") (for steel rear wheels)

1шт.

3

363021R1

WRENCH, socket, double end (1-1/8" and 1-5/16")

1шт.

4

46190DC

TOOL

WRENCH, spark plug (7/8")

1шт.

5

362607R12

BOX, tool, Farmall 300 series, 29549 up, Farmall 350 series, 501 up

1шт.

5

362605R91

BOX, tool, w/bracket (not illustrated) (order 365881R91), Farmall 300 series, Serial Range: 501-29548

1шт.

102635

NUT,3/8"-16, G5

Farmall 300 series, 501 to 29548 3/8"-16, G5

2шт.

Farmall 300 series, 29549 up, Farmall 350 series, 501 up

3шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Farmall 300 series, 501 to 29548 3/8"

2шт.

Farmall 300 series, 29549 up, Farmall 350 series, 501 up

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

5

365881R91

BOX, tool, 362607R12, w/nut, 102635, spacer, 22828D, stud, 362609R1, and two washers, 103321, Farmall 300 series, Serial Range: 501-29548

1шт.

6

362609R1

STUD, tool box mounting, Farmall 300 series, Serial Range: 501-29548

2шт.

Farmall 300 series, 29549 up, Farmall 350 series, 501 up

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Farmall 300 series, 501 to 29548 3/8"

2шт.

Farmall 300 series, 29549 up, Farmall 350 series, 501 up

3шт.

7

22828D

SPACER, tool box stud (not used on tractors equipped with independent power take-off drive or torque amplifier), Farmall 300 series, Serial Range: 501-29548

2шт.

Farmall 300 series, 29549 up, Farmall 350 series, 501 up

3шт.

8

364678R1

INSERT, 1/4" male square (for square socket pipe plugs)

1шт.

9

364675R91

ADAPTER, 1/2" square drive w/set screw (adapts inserts for use with 1/2" square drive socket tools)

1шт.

10

364677R1

INSERT, 5/16" male square (for square socket pipe plugs)

1шт.

11

364676R1

INSERT, 3/8" male square (for square socket pipe plugs)

1шт.

12

366106R1

WRENCH, jackscrew (1-11/16")

1шт.
