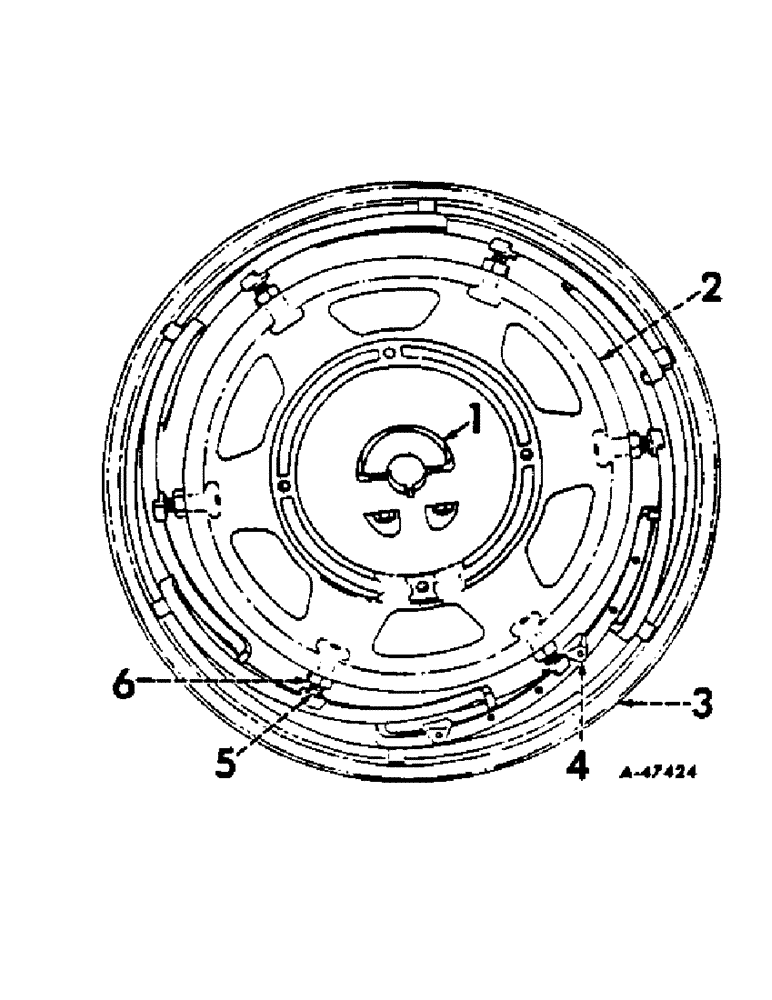

Запчасти Case IH 350 (243) - CHASSIS, REAR WHEELS, FOR TRACTORS EQUIPPED WITH POWER ADJUSTED REAR WHEELS (12) - CHASSIS

1

363020R1

CLAMP

hub, rear wheel

4шт.

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 4"

8шт.

575813R1

WASHER

plain, 25/32" ID x 1-1/4" OD x no 11 ga

8шт.

1

355440R2

CLAMP

rear wheel hub (for tractors equipped with heavy duty rear axle attachment)

4шт.

14-1464

BOLT,Hex, 7/8" - 14 x 4", Gr 5

SCREW, cap, hex-hd., 7/8-14NF x 4"

8шт.

2

366115R11

WHEEL, rear, power adjusted, w/key, 364699R1

2шт.

364699R1

KEY, drive, rear wheel

2шт.

2

366101R11

WHEEL, rear, power adjusted, w/key, 363015R2 (for tractors equipped with heavy duty rear axle attachment)

2шт.

363015R2

KEY

drive, rear wheel

2шт.

3

366102R91

RIM, power adjusted rear wheel, w/six rails (W11-38 rim for 12-38 tire)

2шт.

3

366103R91

RIM, power adjusted rear wheel, w/six rails (W12-38 rim for 13-38 tire)

2шт.

4

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

365326R1

SCREW

power adjusted rear wheel stop

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

power adjusted rear wheel jack

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

power adjusted rear wheel jack screw

12шт.

366106R1

WRENCH, jackscrew, (1-11/16") (illustrated with tools and tool box)

1шт.
