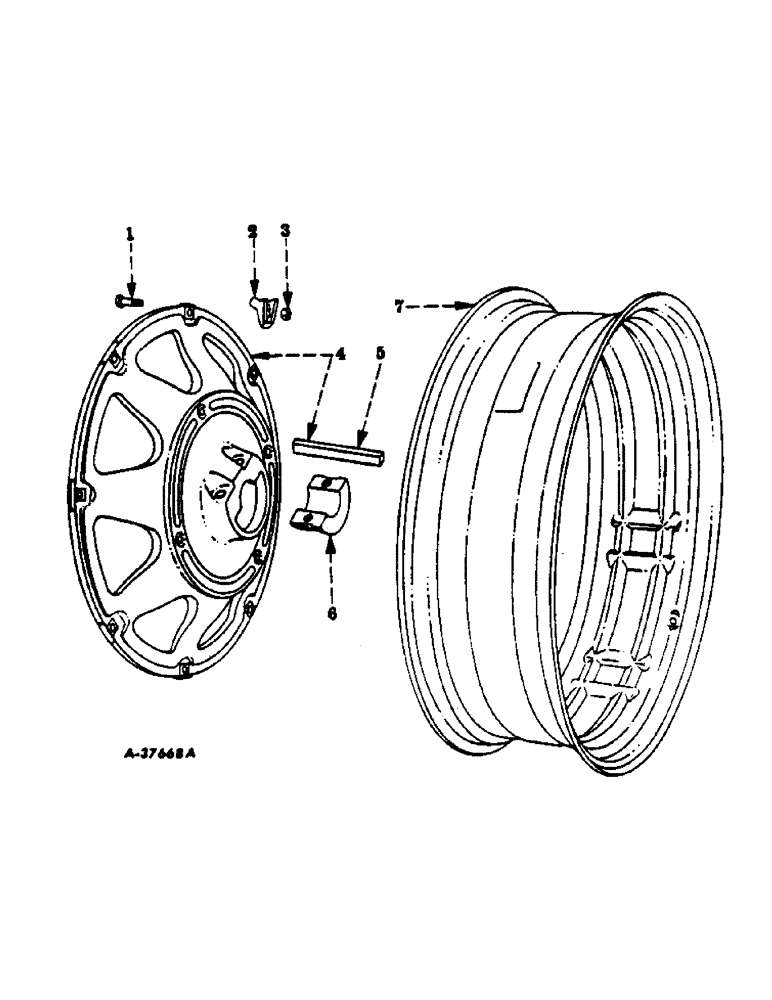

Запчасти Case IH 350 (242) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES (12) - CHASSIS

363031R93

WHEEL, rear, w/W10-38 rim, assembly (composed of (8) bolt 363017R1, (2) clamp 355440R2, (8) clamp 363016R1, (8) nut 363018R1, (1) rim 363145R1, (4) screw 271686, (1) wheel 363014R31)

2шт.

363033R93

WHEEL, rear, w/W12-38 rim, assembly (composed of (8) bolt 363017R1, (2) clamp 355440R2, (8) clamp 363016R1, (8) nut 363018R1, (1) rim 363023R1, (4) screw 271686, (1) wheel 363014R31)

2шт.

363034R93

WHEEL, rear, w/W11-38 rim, assembly (composed of (8) bolt 363017R1, (2) clamp 355440R2, (8) clamp 363016R1, (8) nut 363018R1, (1) rim 363022R1, (4) screw 271686, (1) wheel 363014R31)

2шт.

1

363017R1

BOLT,5/8" - 18 x 2 1/4"

clamp, rear wheel hub

16шт.

2

363016R1

CLAMP

rim, rear wheel

16шт.

3

363018R1

NUT

rim clamp

16шт.

4

363014R31

WHEEL, rear, w/key, 363015R2

2шт.

271686

SPRING

SCREW, cap, hex-hd., 7/8-14NF x 4"

8шт.

5

363015R2

KEY

rear wheel

2шт.

6

355440R2

CLAMP

hub, rear wheel

4шт.

7

363145R1

RIM, rear wheel (W10-38 rim for 10-38 or 11-38 tire)

2шт.

7

363022R1

RIM

rear wheel (W11-38 rim for 11-38 or 12-38 tire)

2шт.

7

363023R1

RIM

rear wheel (W12-38 rim for 12-38 or 13-38 or 13-6-38)

2шт.
