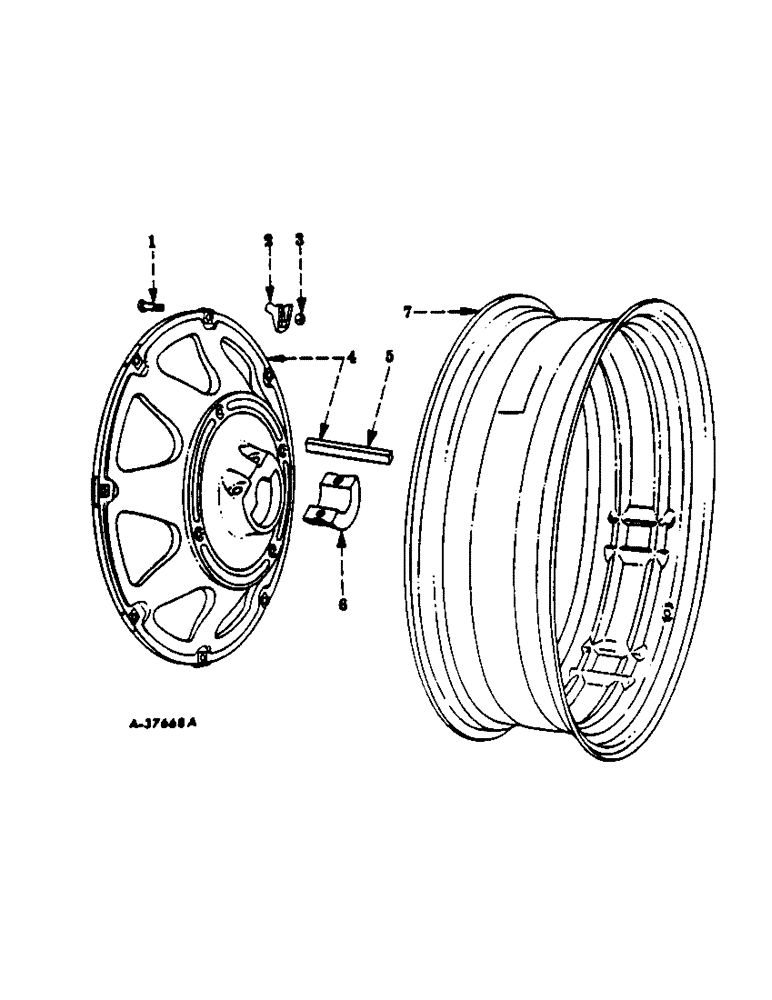

Запчасти Case IH 350 (241) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES (12) - CHASSIS

363030R93

WHEEL, rear, w/W10-38 rim, assembly (composed of (8) bolt 363017R1, (8) clamp 363016R1, (2) clamp 363020R1, (8) nut 363018R1, (1) rim 363145R1, (4) screw 271642, (4) washer 575813R1, (1) wheel 364698R11)

2шт.

363032R93

WHEEL, rear, w/W11-38 rim, assembly (composed of (8) bolt 363017R1, (8) clamp 363016R1, (2) clamp 363020R1, (8) nut 363018R1, (1) rim 363022R1, (4) screw 271642, (4) washer 575813R1, (1) wheel 364698R11)

2шт.

363035R93

WHEEL, rear, w/W12-38 rim, assembly (composed of (8) bolt 363017R1, (8) clamp 363016R1, (2) clamp 363020R1, (8) nut 363018R1, (1) rim 363023R1, (4) screw 271642, (4) washer 575813R1, (1) wheel 364698R11)

2шт.

1

363017R1

BOLT,5/8" - 18 x 2 1/4"

clamp, rear wheel rim

16шт.

2

363016R1

CLAMP

rim, rear wheel

16шт.

3

363018R1

NUT

rim clamp

16шт.

4

364698R11

WHEEL, rear (will work for 363019R2)

2шт.

271642

ELBOW

cap, hex-hd., 3/4-16NF x 4"

8шт.

575813R1

WASHER

plain, 25/32" ID x 1-1/4" OD x no 11 ga

8шт.

5

364699R1

KEY, rear wheel (used with 364698R1 wheel), Farmall 300 series, 25891 up, Farmall 350 series, 501 up

1шт.

6

363020R1

CLAMP

hub, rear wheel

4шт.

7

363145R1

RIM, rear wheel (W10-38 rim for 10-38 or 11-38 tire)

2шт.

7

363022R1

RIM

rear wheel (W11-38 rim for 11-38 or 12-38 tire)

2шт.

7

363023R1

RIM

rear wheel (W12-38 rim for 12-38 or 13-38 or 13-6-38 tire)

2шт.
