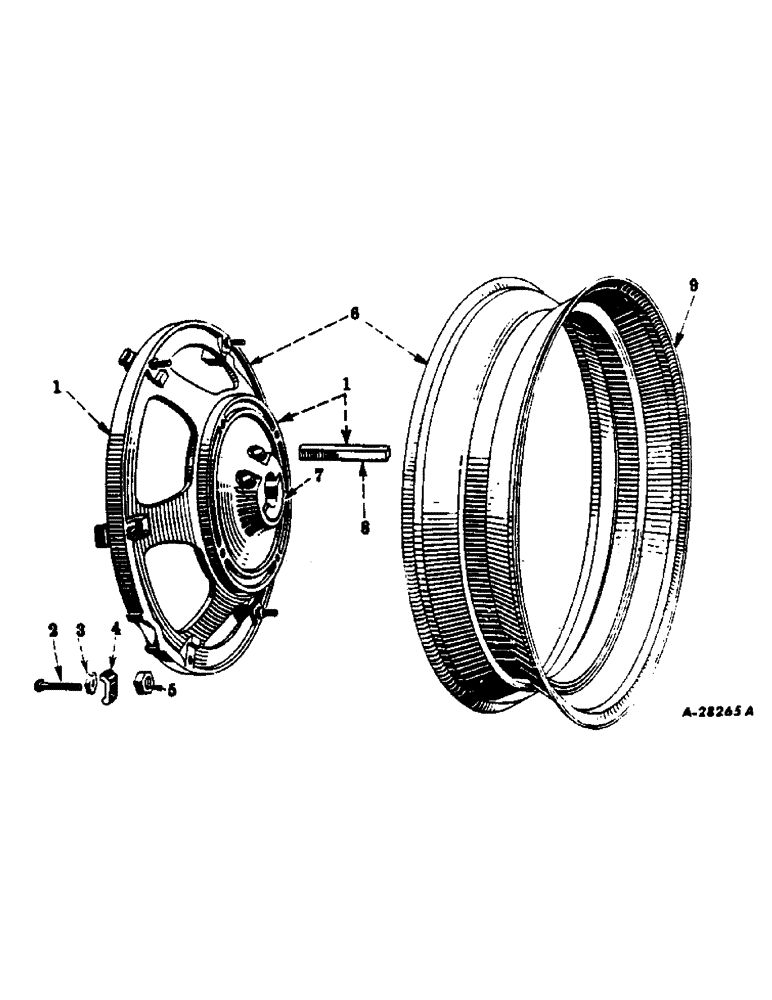

Запчасти Case IH 350 (240) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, FARMALL 300 HI-CLEAR, 501 TO 3726 (12) - CHASSIS

1

355439R2

WHEEL, rear (order 365344R91)

2шт.

1

365344R91

WHEEL, rear, 365345R11, with two clamps, 355440R2, two screws, 271686, and four washers, PO12898 (will work for 355439R2)

2шт.

14-1464

BOLT,Hex, 7/8" - 14 x 4", Gr 5

SCREW, cap, hex-hd., 7/8-14NF x 4"

8шт.

PO12898

WASHER

plain, 29/32" ID x 1-1/2" OD x no 16 ga (used with 365345R11 wheel)

8шт.

1

365345R11

WHEEL, rear, with key, 363015R2

2шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp

12шт.

3

351833R1

NUT

jam, rear wheel rim mounting

12шт.

4

48984D

CLAMP

rear wheel rim

24шт.

5

351832R1

NUT

rear wheel rim mounting

12шт.

6

355026R94

WHEEL, rear, w/DW10-38 rim, assembly (composed of (6) bolt 48985DA, (12) clamp 48984D, (2) clamp 355440R2, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55563D, (4) screw 271686, (4) washer PO12898, (1) wheel 363345R11)

2шт.

7

355440R2

CLAMP

hub, rear wheel

4шт.

8

363015R2

KEY

drive, rear wheel (used on wheel 365345R11)

2шт.

9

55563D

RIM

rear wheel (DW10-38 rim for 11-38 or 12-38 or 13-38 tires)

2шт.
