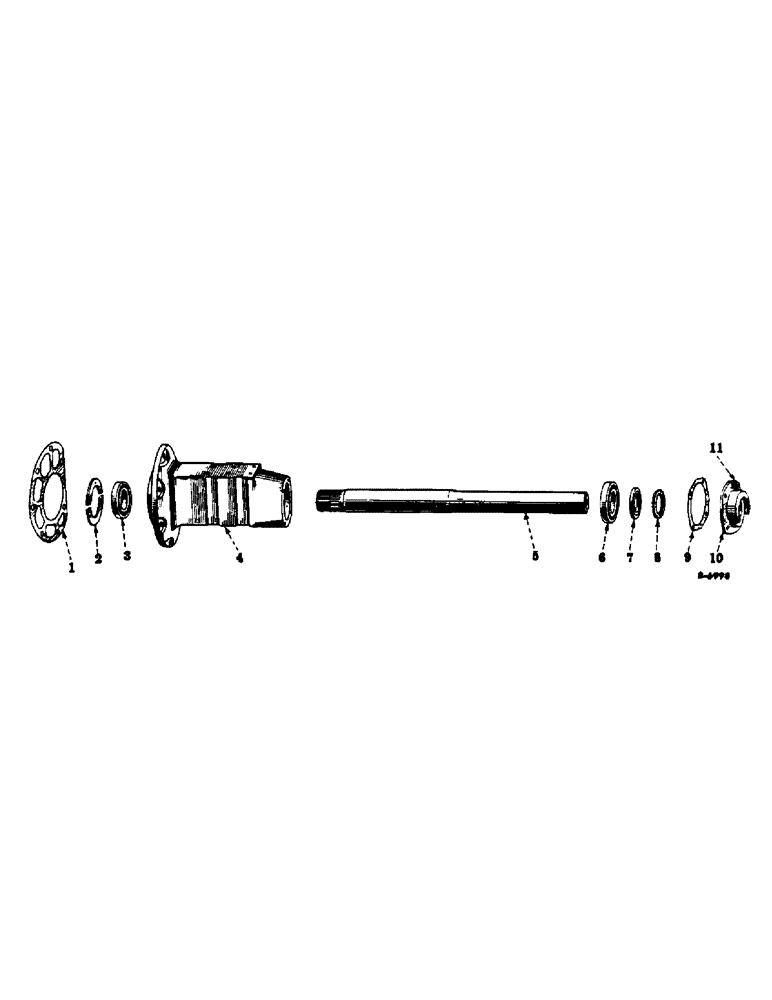

Запчасти Case IH 350 (235) - CHASSIS, REAR AXLE, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS (12) - CHASSIS

1

360543R1

GASKET

rear axle carrier

2шт.

2

360545R1

SUPPORT

RETAINER, rear axle ball bearing, inner

4шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

ST218

BEARING

ball (rear axle, inner)

2шт.

4

360541R1

CARRIER, rear axle, L H (A only)

1шт.

4

360542R2

CARRIER, rear axle, R H (A only)

1шт.

4

364649R1

CARRIER, rear axle, L H (B only)

1шт.

4

364650R1

CARRIER, rear axle, R H (B only)

1шт.

361856R1

SCREW

cap, rear axle carrier

14шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

5

360544R2

AXLE, rear (2-1/2" wheel end dia. x 38-13/16" long) (A only)

2шт.

5

360930R2

AXLE, rear (for tractors equipped with wide tread rear axle) (2-1/2" wheel end dia. x 45" long) (A only)

2шт.

5

364651R2

AXLE, rear (2-3/4" wheel end dia. x 39" long) (B only)

2шт.

5

365484R2

AXLE, rear (for tractors equipped with wide tread rear axle) (2-3/4" wheel end dia. x 45" long) (B only)

2шт.

6

ST328A

BALL BEARING,65mm ID x 120mm OD x 23mm W

BEARING, ball (rear axle, outer) (A only) (Replaces ST328)

2шт.

6

ST310A

BALL BEARING,70mm ID x 125mm OD x 24mm W

BEARING, ball (rear axle, outer) (B only) (Replaces ST310)

2шт.

7

43722D

SEAL

OIL SEAL, rear axle (A only)

2шт.

7

360457R91

SEAL

OIL SEAL, rear axle (will work for 361025R91)

1шт.

8

43720D

SEALING WASHER,62.71mm ID x 84.93mm OD x 7.94mm Thk

WASHER, felt, rear axle (A only)

2шт.

8

45085D

SEALING WASHER

WASHER, felt, rear axle (B only)

2шт.

9

48463D

GASKET

rear axle carrier cap (A only)

2шт.

9

48950D

GASKET

rear axle carrier cap (B only)

2шт.

10

6669DBX

CAP, rear axle carrier, w/oil seal, 43722D and washer, 43720D (A only)

2шт.

10

6727DBXA

CAGE

CAP, rear axle carrier, w/oil seal, 360457R91 and washer, 45085D (B only)

2шт.

NLS

NO LONGER SERVICED

(A only) Hex, 3/8"-16 x 1", G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

8шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (rear axle outer bearing) 1/8"-27 x .66 lg

2шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (rear axle outer bearing)

2шт.

355440R2

CLAMP

hub, rear wheel (illustrated with "rear wheels") (B only)

4шт.

363014R31

WHEEL, rear, w/key, 363015R2 (illustrated with "rear wheels") (B only)

2шт.

14-1464

BOLT,Hex, 7/8" - 14 x 4", Gr 5

SCREW, cap, hex-hd., 7/8-14NF x 4" (B only)

8шт.

Plus the following parts (illustrated with "rear wheels") if the tractor is not already so equipped

1шт.

363017R1

BOLT,5/8" - 18 x 2 1/4"

clamp, rear wheel hub (B only)

16шт.

363016R1

CLAMP

rim, rear wheel (B only)

16шт.

363018R1

NUT

rim clamp (B only)

16шт.

363022R1

RIM

rear wheel (W11-38 rim for 12-38 tire) (B only), or

2шт.

363023R1

RIM

rear wheel (W12-38 rim for 13-38 tire) (B only), or

2шт.

363145R1

RIM, rear wheel (W10-38 rim for 10-38 or 11-38 tire) (B only)

2шт.
