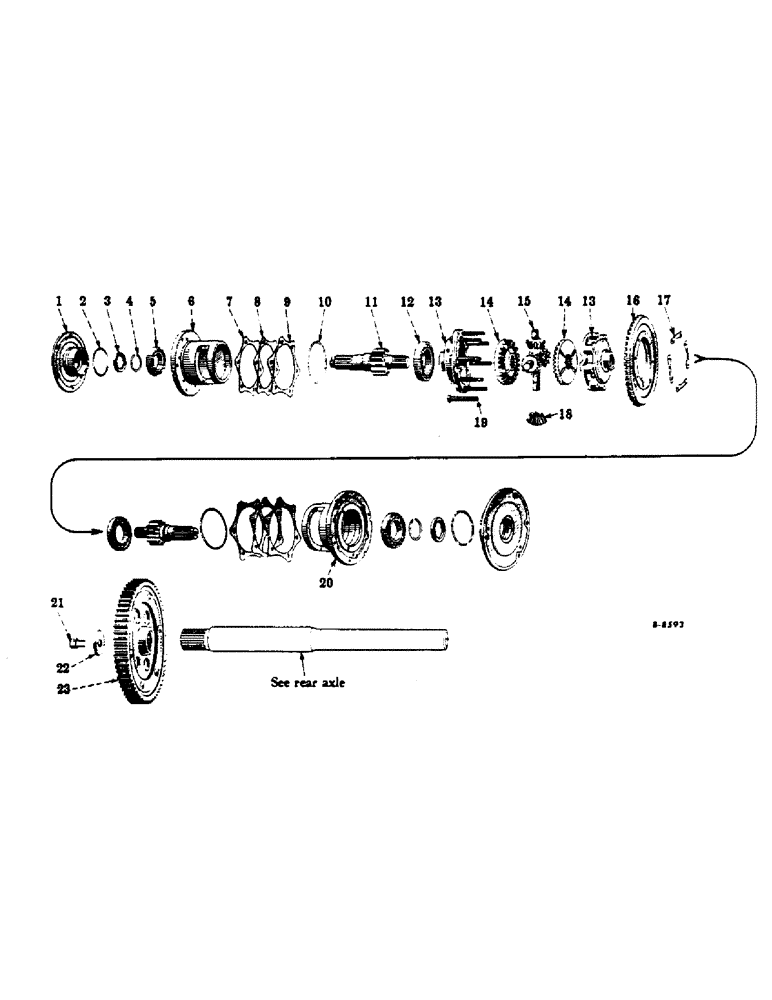

Запчасти Case IH 350 (234) - CHASSIS, REAR AXLE DIFFERENTIAL (12) - CHASSIS

1

358100R11

RETAINER, bull pinion shaft bearing, w/oil seal, 20290D and 358101R1

2шт.

2

358101R1

O-RING,0.551" ID x 0.07" Width

RING, seal, bull pinion shaft bearing retainer

2шт.

3

20290D

OIL SEAL

OIL SEAL, bull pinion shaft (optional with 357770R91 or 357774R91)

2шт.

3

357770R91

SEAL

OIL SEAL, bull pinion shaft (optional with 20290D or 357774R91)

2шт.

3

357774R91

SEAL

OIL SEAL, bull pinion shaft (optional with 20290D or 357770R91)

2шт.

4

358059R1

SNAP RING

RING, snap, bull pinion and brake shaft

2шт.

5

ST279

BALL BEARING

BEARING, ball (bull pinion and brake shaft)

2шт.

6

358057R11

CAGE, bull pinion shaft bearing, LH, w/ring, 4222D

1шт.

357034R1

BOLT

SCREW, cap, bull pinion shaft bearing cage

6шт.

7

358098R1

SHIM

bull pinion shaft bearing cage, light (.007")

1шт.

8

358061R1

SHIM

bull pinion shaft bearing cage, medium (.015")

2шт.

9

358060R1

SHIM

bull pinion shaft bearing cage, heavy (.030")

2шт.

10

4222D

SEAL

RING, seal, bull pinion shaft bearing cage

2шт.

11

3588056R2

PINION, bull, (12 teeth) and brake shaft

2шт.

12

ST218

BEARING

ball (differential)

2шт.

13

358054R31

CASE, differential (2 halves) L H and R H

1шт.

14

360962R1

BEVEL GEAR

GEAR, bevel, differential (28 teeth)

2шт.

15

20731DA

SPIDER, differential

1шт.

16

362570R1

WHEEL

GEAR, bevel drive (49 teeth)

1шт.

17

43699D

STRIP

PLATE, lock, differential case bolt

4шт.

18

360961R1

GEAR

PINION, bevel, differential (15 teeth)

4шт.

19

48471D

BOLT (SPREADER),7/16" - 20 x 4"

BOLT, differential case

8шт.

271505

BODY

hex., 7/16-20NF

8шт.

20

358058R11

CAGE, bull pinion shaft bearing, R H, w/ring, 4222D

1шт.

357034R1

BOLT

SCREW, cap, bull pinion shaft bearing cage

6шт.

21

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

49673DA

WASHER, bull gear retainer

2шт.

23

360537R92

GEAR, bull (66 teeth) w/hub and six rivets, 18387R1 (optional with 360538R92)

2шт.

23

360538R92

GEAR, bull (66 teeth) w/hub and six rivets, 18387R1 (optional with 360537R92)

2шт.

18387R1

RIVET, stl., wagon-box-hd., unanld., 1/2 x 1-3/4"

12шт.
