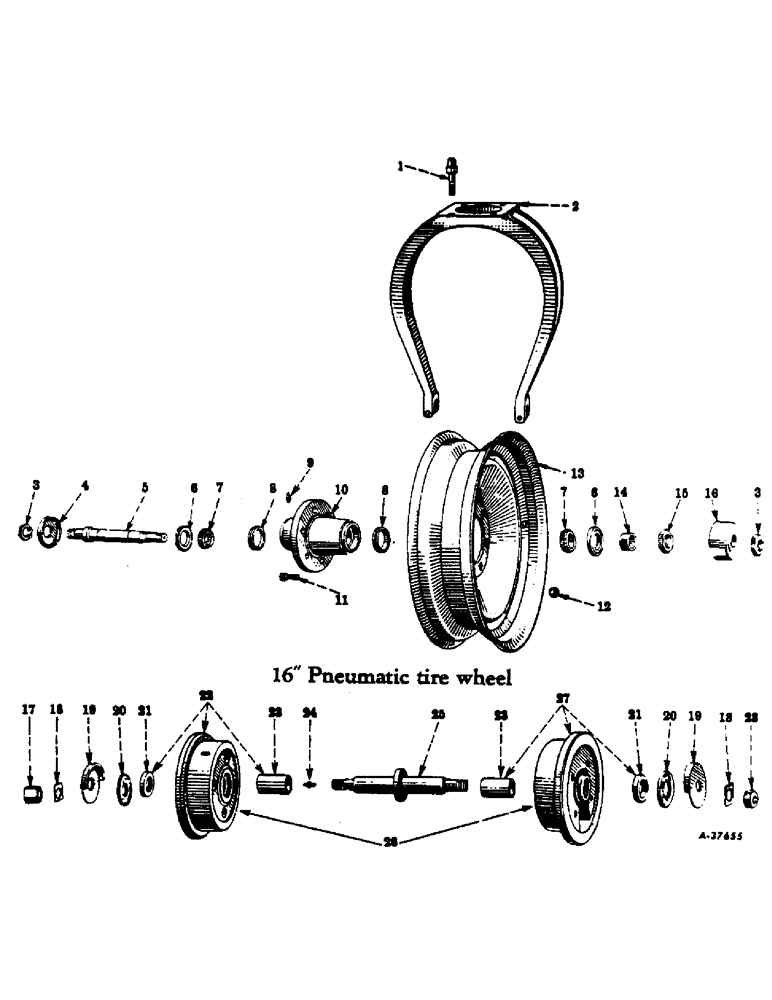

Запчасти Case IH 350 (228) - CHASSIS, SINGLE FRONT WHEEL, SPECIAL, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS (12) - CHASSIS

1

49109DA

BOLT, steering stop

1шт.

352535R1

NUT, steering stop bolt

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

6195DB

FORK, front bolster

1шт.

13376R1

BOLT, machine, sq-hd., 3/8-16NC x 2-1/2"

2шт.

102635

NUT,3/8"-16, G5

2шт.

352535R1

NUT, front bolster fork bolt

3шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-18NF x 2-1/4" (A only), Fine Thread

3шт.

271587

WASHER

SCREW, cap, hex-hd., 5/8-18NF x 2" (B only)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

451034

PTO

NUT, lock, 7/8-14NF (optional with 355134R1) (B only)

2шт.

3

355134R1

NUT, front axle (optional with 451034) (B only)

2шт.

103347

WASHER

plain, 15/16" ID x 1-3/4" OD x no 10 ga (B only)

2шт.

4

355127R11

SHIELD, front wheel hub, short (B only)

1шт.

5

355133R1

AXLE, front (B only)

1шт.

6

355131R91

SEAL

OIL SEAL, front wheel bearing (B only)

2шт.

7

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, tapered roller bearing (B only)

2шт.

8

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, tapered roller bearing (B only)

2шт.

9

109353

FITTING, lubrication, 30 degrees elbow, 1/8" (optional with 109459) (B only)

1шт.

9

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 30 degrees elbow, 1/8" (optional with 109353) (B only)

1шт.

10

355129R11

HUB, front wheel, w/two cups, 642954R1 (B only)

1шт.

11

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

SCREW, cap, hex-hd., cd-pltd., 9/16-18NF x 1-3/4" (B only)

6шт.

12

351793R1

WHEEL NUT

NUT, mounting, front wheel (B only)

6шт.

13

354195R91

WHEEL

front (rim size 5.50F-16 for 7.50-16" tire) (B only)

1шт.

14

355132R1

SPACER, front wheel bearing (B only)

1шт.

15

451094

NUT, lock, jam, 1-1/8-12NF (optional with 355135R1) (B only)

1шт.

15

355135R1

NUT, adjusting, front wheel bearing (optional with 451094) (B only)

1шт.

16

355128R11

SHIELD, front wheel hub, long (B only)

1шт.

17

23742D

NUT, front axle (A only)

1шт.

18

23743D

LOCK WASHER

lock, front axle nut (A only)

2шт.

19

23762DX

SHIELD

front wheel hub, w/lock (A only)

2шт.

20

23760D

SEALING WASHER

WASHER, felt, front wheel (A only)

2шт.

21

364469R91

SEAL

OIL SEAL, front wheel bearing (will work for 42183DA, 358766R91 and 358809R91) (A only)

2шт.

22

5630DAX

WHEEL, front, male half, w/bushing, 359340R1 and oil seal, 364469R91 (A only)

1шт.

102639

NUT,5/8"-11, G5

(A only) 5/8"-11, G5

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

cap, hex-hd., 5/8-11NC x 7" (A only)

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A only) 5/8"

4шт.

23

359340R1

BUSHING

front wheel (A only)

2шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (A only) 1/8"-27 x .66 lg

1шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (A only)

1шт.

25

23740DA

SHAFT

AXLE, front (A only)

1шт.

26

40833DA

WHEEL, front, assembly (composed of (4) nut 102639, (4) screw 17184R1, (4) washer 103325, (1) wheel 5630DAX, (1) wheel 5631DAX) (A only)

1шт.

27

5631DAX

WHEEL, front, female half, w/bushing, 359340R1 and oil seal, 364469R91 (A only)

1шт.

28

218200

NUT,7/8"-14, G5

hex., 7/8-12NF (A only)

1шт.
