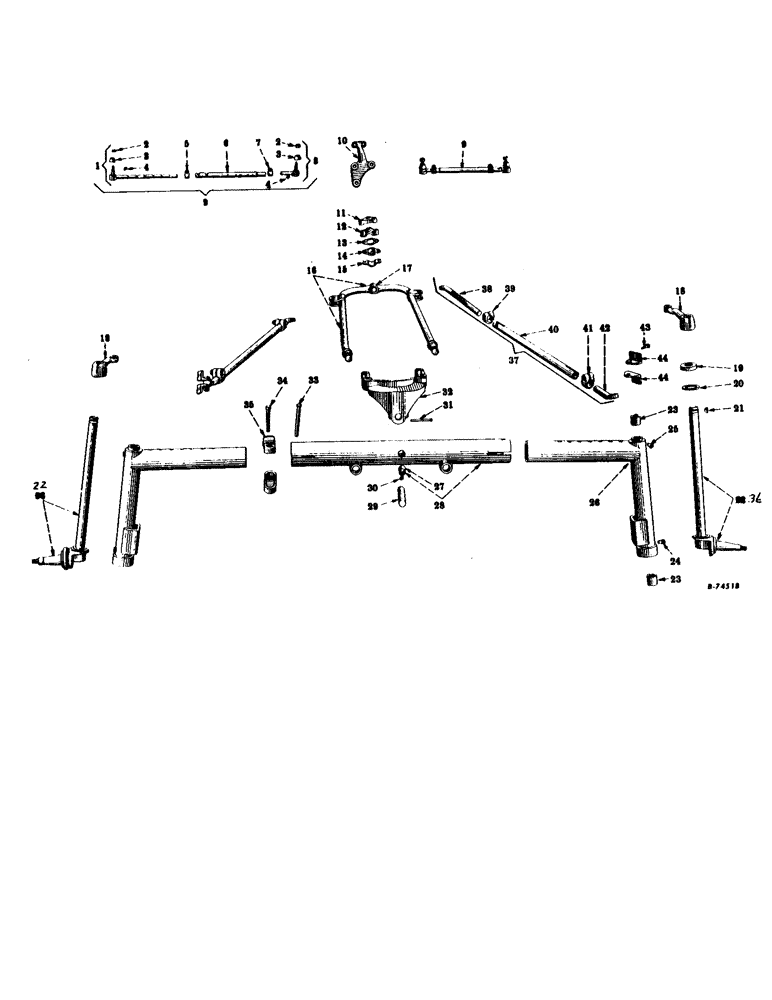

Запчасти Case IH 350 (219) - CHASSIS, ADJUSTABLE FRONT AXLE, AUXILIARY STAY ROD, AND STEERING CONNECTIONS, HI-CLEAR TRACTORS (12) - CHASSIS

1

358983R91

TIE-ROD

END, tie rod (adjustable), assembly (optional with 359984R91) (composed of (1) cover 358900R1, (1) end (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

1

359984R91

ROD

END, tie rod (adjustable), assembly (optional with 358983R91) (composed of (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1, (1) pin 103386)

2шт.

2

358901R1

SLOTTED NUT

tie rod end (optional with 359983R1)

4шт.

2

359983R1

NUT

tie rod end (optional with 358901R1)

4шт.

1033386

PIN, cotter, 1/8 x 1-1/4"

4шт.

3

358900R1

SEAL

COVER, dust, tie rod end (optional with 359982R1)

4шт.

3

359982R1

COVER

dust, tie rod end (optional with 358900R1)

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod end) (optional with 119512) 1/8"-27 x .66 lg

4шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (tie rod end) (optional with 109461)

4шт.

5

358982R1

CLAMP, tie rod (tube adjustable end) (optional with 359986R1)

2шт.

5

359986R1

CLAMP

tie rod (tube adjustable end) (optional with 358982R1)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

6

358980R1

TUBE, tie rod (optional with 359980R1)

2шт.

6

359980R1

TUBE

tie rod (optional with 358980R1)

2шт.

7

358981R1

CLAMP, tie rod (tube threaded end) (optional with 359985R1)

2шт.

7

359985R1

CLAMP

tie rod (tube threaded end) (optional with 358981R1)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

8

360678R91

END

tie rod (threaded) assesmbly (optional with 359981R91) (composed of (1) cover 358900R1, (1) end (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

8

359981R91

END

tie rod (threaded) assembly (optional with 360678R91) (composed of (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1, (1) pin 103386)

2шт.

9

358979R91

TIE ROD, assembly (optional with 359569R91) (composed of (1) clamp 358981R1, (1) clamp 358982R1, (1) end 358983R91, (1) end 360678R91, (2) nut 103028, (2) screw 181435, (1) tube 358980R1, (2) washer 114608)

2шт.

9

359569R91

TIE ROD, assembly (optional with 358979R91) (composed of (1) clamp 359985R1, (1) clamp 359986R1, (1) end 359981R91, (1) end 359984R91, (2) nut 103028, (2) screw 181435, (1) tube 359980R1, (2) washer 114608)

2шт.

10

360365R1

ARM, steering gear

1шт.

425-1110

NUT,5/8"-18, G5

3шт.

181485

LEVER

SCREW, cap, hex-hd., 5/8-18NF x 2-1/4"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

11

360293R1

SPACER, stay rod ball socket, Farmall 300 series, Serial Range: 501-27987

1шт.

11

365460R1

SPACER, stay rod ball socket, Farmall 300 series, 27988 up, Farmall 350 series, 501 up

1шт.

12

9020D

SOCKET

ball, stay rod, Farmall 300 series, Serial Range: 501-27987

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

365459R1

SOCKET

ball, stay rod, Farmall 300 series, 27988 up, Farmall 350 series, 501 up

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC 2-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

60762D

SHIM

ball socket, stay rod, Farmall 300 series, Serial Range: 501-27987

4шт.

13

365457R1

SHIM

ball socket, stay rod, Farmall 300 series, 27988 up, Farmall 350 series, 501 up

4шт.

14

60763DB

CYLINDER END CAP

CAP, ball socket, stay rod, Farmall 300 series, Serial Range: 501-27987

1шт.

14

365456R1

CAP

ball socket, stay rod, Farmall 300 series, 27988 up, Farmall 350 series, 501 up

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 4-1/4", Course Threads

2шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 4"

2шт.

15

358345R1

PLATE ASSY.

PLATE, lock, stay rod ball socket cap, Farmall 300 series, Serial Range: 501-27987

1шт.

15

365458R1

CLAMP

PLATE, lock, stay rod ball socket cap, Farmall 300 series, 27988 up, Farmall 350 series, 501 up

2шт.

16

362257R11

ROD, stay, w/ball, 10546D and four brackets

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

jam, hex., 1-3/8-12NF

2шт.

118028

WASHER, lock, light, 1-3/8"

2шт.

17

10546D

BALL

stay rod

1шт.

18

358971R1

ARM, steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

361034R91

BEARING

ball, thrust (optional with 357349R91)

2шт.

19

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ball, thrust (optional with 361034R91)

2шт.

20

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

21

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, alloy-stl., 1/4 x 2-1/8"

2шт.

22

358968R91

KNUCKLE, steering, R.H., assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704D, (1) pin 358966R1 (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

1шт.

REF; 22A 358967R91 KNUCKLE L.H. ASSY

1шт.

IS THE CORRECT DESC. 08-MAY-96

1шт.

23

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

24

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degrees elbow, 1/8" (steering knuckle pivot pin) (optional with 109354) (not illustrated) (used with threaded hole)

2шт.

24

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degrees elbow, 1/8" (steering knuckle pivot pin) (optional with 109462) (not illustrated) (used with threaded hole)

2шт.

24

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, 1/8" drive type (optional with 110161) (used with plain hole)

2шт.

24

110161

FITTING, lubrication, straight, 1/8" drive type (optional with 125617) (used with plain hole)

2шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot pin) (optional with 119512) (not illustrated) (used with threaded hole) 1/8"-27 x .66 lg

2шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (steering knuckle pivot pin) (optional with 109461) (not illustrated) (used with threaded hole)

2шт.

25

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, 1/8", drive type (optional with 110161) (used with plain hole)

2шт.

25

110161

FITTING, lubrication, straight, 1/8", drive type (optional with 125617) (used with plain hole)

2шт.

26

358959R91

EXTENSION, front axle, w/two bushings, 358958R2

2шт.

27

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

28

358976R11

FRONT AXLE

AXLE, front, w/two bushings, 48841D

1шт.

29

358978R1

PIN

front axle pivot

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Taper (Front axle pivot pin) (Optional with 110347) 1/4"-28 NPT x .54" lg

1шт.

30

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4-28NS taper (front axle pivot pin) (optional with 109454)

1шт.

31

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, std-hd., dld., 3/8 x 4-1/8" (front axle pivot pin lock)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

358969R2

BOLSTER, lower

1шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 3-3/4"

2шт.

33

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

34

350558R1

BOLT

front axle clamp

4шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

35

350556R1

CLAMP

front axle

4шт.

36

358967R91

KNUCKLE, steering, L H, assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704D, (1) pin 358966R1 (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

1шт.

REF; 36A 358968R91 KNUCKLE RH ASSY

1шт.

IS THE CORRECT DESC. 08-MAY-96

1шт.

37

360385R91

STAY ROD, auxiliary, assembly (see note) (composed of (1) clamp 359003R1, (1) clamp 359004R1, (1) end 359002R1, (1) end 359001R1, (2) nut 103030, (2) screw 181488, (1) tube 360386R1, (2) washer 114609)

2шт.

38

359001R1

END, adjustable, auxiliary stay rod (see note)

2шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF (see note)

2шт.

271636

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2" (see note)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note) 3/4"

2шт.

39

359003R1

CLAMP

auxiliary stay rod (adjustable end) (see note)

2шт.

425-1110

NUT,5/8"-18, G5

(See note) 5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3" (see note)

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8" (See note)

2шт.

40

360386R1

TUBE, auxiliary stay rod (see note)

2шт.

41

359004R1

CLAMP

auxiliary stay rod (threaded end) (see note)

2шт.

425-1110

NUT,5/8"-18, G5

(See note) 5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3" (see note)

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8" (See note)

2шт.

42

359002R1

END, threaded, auxiliary stay rod (see note)

2шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF (see note)

2шт.

271636

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2" (see note)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note) 3/4"

2шт.

43

359006R1

BOLT

BOLT, auxiliary stay rod mounting, front (see note)

8шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF (see note)

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (See Note) 1/2"

8шт.

44

359005R1

BRACKET, auxiliary stay rod mounting, front (see note)

4шт.

360384R91

PARTS ACCESSORY, auxiliary stay rod (composed of (8) bolt 359006R1, (4) bracket 359005R1, (8) nut 103028, (4) nut 218197, (2) stay rod 360385R91, (4) screw 271636, (8) washer 103323, (4) washer 103326)

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
