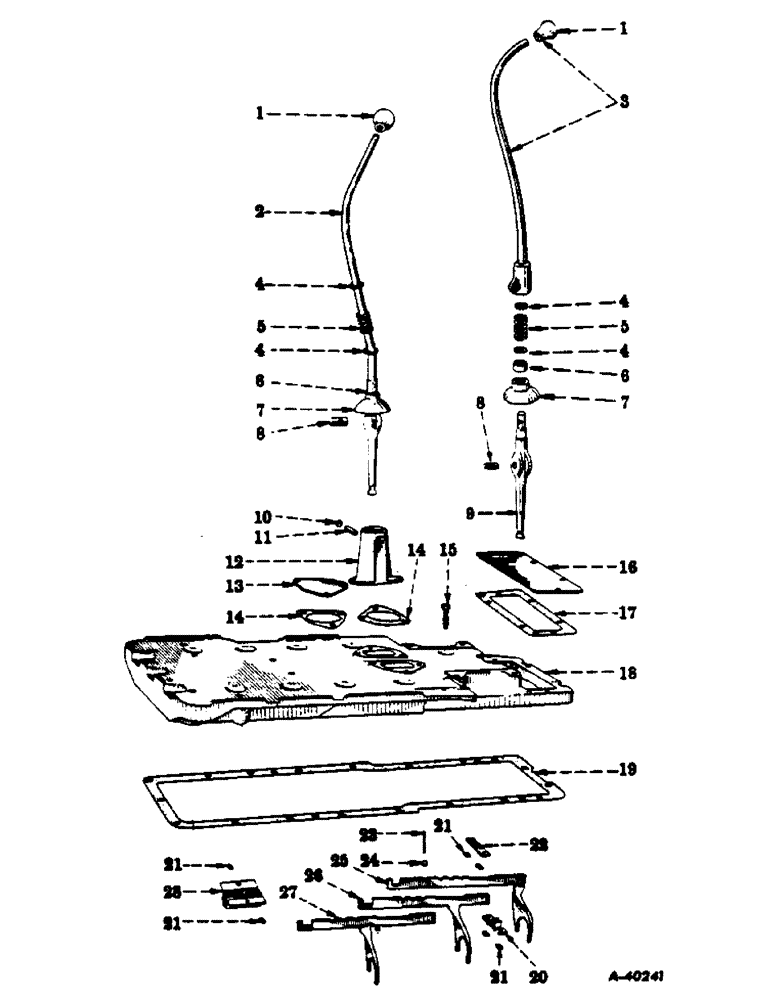

Запчасти Case IH 350 (208) - CHASSIS, GEAR SHIFT MECHANISM, FORWARD OPERATION, AND REAR FRAME COVER (12) - CHASSIS

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

361800R12

LEVER, gear shift (not used on tractors equipped with cotton picker mounting parts)

1шт.

3

364161R11

LEVER, gear shift (forward operation), w/knob, 53717DA (for tractors equipped with cotton picker mounting parts)

1шт.

271505

BODY

hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

1657E

STOP

WASHER, plain, 57/64" ID x 1-1/4" OD x no 13 ga (gear shift lever spring stop)

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

5

SPRING, gear shift lever

1шт.

6

20887DA

BUSHING, gear shift lever swivel housing shield (used with 42496DXA)

1шт.

7

42496DXA

SHIELD, gear shift lever swivel housing, (sheet steel) w/bushing, 20887DA (order 355889R2)

1шт.

7

355889R2

SHIELD

gear shift lever swivel housing (aluminum) (will work for 42496DXA)

1шт.

8

256918R11

DOWEL

SHAFT, gear shift swivel, large, w/two plug, 172529 (will work for 40465DA)

1шт.

9

364162R1

LEVER

END, gear shift lever (for tractors equipped with cotton picker mounting parts)

1шт.

10

172529

PLUG

expansion, 5/8"

2шт.

11

256919R11

HITCH PIN

SHAFT, gear shift swivel, small, w/two plug, 172529 (will work for 357003R1)

1шт.

12

361569R21

HOUSING, gear shift shaft swivel, w/two plug, 172529

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

361802R1

COVER, gear shift opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

361687R1

GASKET

gear shift swivel housing or opening cover

2шт.

15

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Not illustrated) (Used on tractors with pneumatic tires to plug fifth speed lockout screw hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

49637D

SCREW, fifth speed lockout (used on tractors equipped with steel rear wheels)

1шт.

16

49618DA

BAR

COVER, belt pulley drive opening (sheet steel) (will work for 365129R1) (note A)

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1" (note A)

2шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

(Note A) Hex, 7/16"-14 x 2", G5

4шт.

16

COVER, belt pulley drive opening (gear iron) (order 49618DA) (see note A)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4" (note A)

2шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2" (note A)

4шт.

17

49619DB

GASKET

pulley drive opening cover

1шт.

18

361921R31

COVER, rear frame, w/two screw, 179837 and two washer, 103321

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Note C) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3" (8 used, note B)

6шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3" (2 used, note B)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note C) 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (8 used, note B) 7/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (2 used, Note B) 1/2"

4шт.

19

360556R2

GASKET

rear frame cover

1шт.

20

358888R91

GUIDE

gear shift rail, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

59473D

LOCK

shift rail guide bolt and stop plate bolt

6шт.

22

48391D

PLATE, stop, gear shift rail

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

41058DA

SPRING

gear shift poppet

4шт.

24

D2616

BALL

chrome stl., 1/2" (gear shift poppet) (optional with 13722D)

4шт.

24

13722D

BALL

chrome stl., 1/2" (gear shift poppet) (optional with D2616)

4шт.

25

360583R11

FORK

AND RAIL, fourth and fifth speed shift

1шт.

26

360581R11

FORK AND RAIL, second and third speed shift

1шт.

27

360579R11

FORK AND RAIL, fist and reverse speed shift

1шт.

28

355739R92

GUIDE

gear shift rail, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
