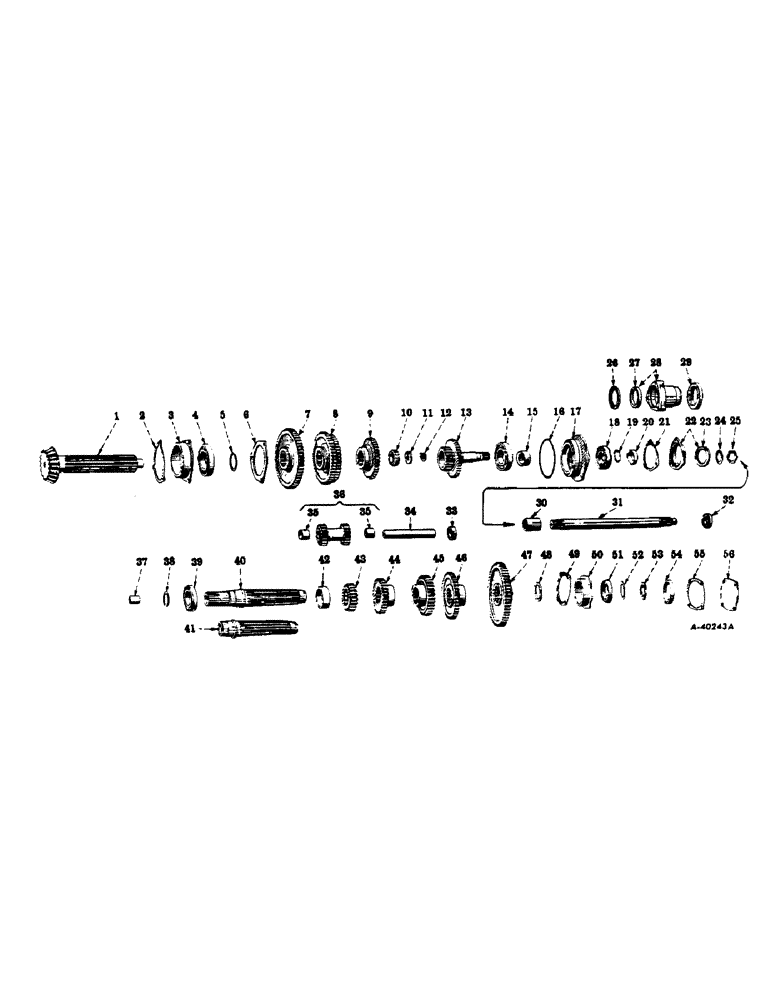

Запчасти Case IH 350 (205) - CHASSIS, TRANSMISSION (12) - CHASSIS

1

362569R1

SHAFT, transmission main, w/pinion (15 teeth)

1шт.

2

363751R1

SHIM

transmission main shaft bearing cage, extra light (.003")

1шт.

2

360569R1

SHIM

transmission main shaft bearing cage, light (.007")

1шт.

2

360570R1

SHIM

transmission main shaft bearing cage, medium (.015")

1шт.

2

360571R1

SHIM

transmission main shaft bearing cage, heavy (.030")

1шт.

3

360568R1

CAGE, transmission main shaft rear bearing

1шт.

4

ST227A

BEARING, ball (transmission main shaft, rear)

1шт.

REF #4-P/N ST227A SHOWN-TRY P/N ST227B (CASE#515926 D/C 6161041B)JBEDFORD 2/20/98.

1шт.

5

357194R1

RING

snap, transmission main shaft rear bearing

1шт.

6

360572R1

RETAINER, transmission main shaft rear bearing

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

7

360573R1

GEAR

sliding, first and reverse speed (55 teeth)

1шт.

8

360564R1

GEAR

sliding, second and third speed (47 and 41 teeth)

1шт.

9

360574R1

GEAR

sliding, fourth and fifth speed (36 and 20 teeth)

1шт.

10

53323DA

BEARING ASSY,30mm ID x 54.04mm OD x 24.9mm W

BEARING, cylindrical roller unit, w/inner race (transmission main shaft pilot)

1шт.

11

360575R1

WASHER, transmission main shaft pilot bearing retainer

1шт.

12

360576R1

PLATE, lock, transmission main shaft pilot bearing retainer screw

1шт.

181394

BOLT,Hex, 7/16" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 7/8"

1шт.

13

360492R1

GEAR

SHAFT, transmission driving (20 and 35 teeth) (note A)

1шт.

14

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

(transmission driving shaft, rear) (note A)

1шт.

15

360493R1

BUSHING

SPACER, driving shaft bearing (note A)

1шт.

16

360497R1

RING

seal, transmission driving shaft front bearing case (note A)

1шт.

17

360496R1

CAGE

transmission driving shaft bearing (note A)

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, HEX-HD., 3/8-16NC X 1-5/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

w/snap ring (transmission driving shaft, front) (note A)

1шт.

19

360494R1

RING

seal, transmission driving shaft front bearing spacer (note A)

1шт.

20

360495R1

SPACER, transmission driving shaft front bearing (note A and B)

1шт.

20

360740R1

BUSHING

SPACER, transmission drivign shaft front bearing (for tractors equipped with independent power take-off drive) (note C)

1шт.

21

360498R1

GASKET

transmission driving shaft front bearing retainer (note A)

1шт.

22

360499R11

RETAINER

transmission driving shaft front bearing, w/oil seal, 49177D (note A and B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

49177D

SEAL

OIL SEAL, transmission driving shaft (will work for 358822R91) (note A and B)

1шт.

24

358875R1

WASHER

transmission driving shaft front bearing nut (note A)

1шт.

25

358876R1

LOCK NUT

lock, transmission driving shaft front bearing (note A)

1шт.

26

360741R1

WASHER

SPACER, transmission driving shaft bearing retainer (for tractors equipped with independent power take-off drive) (note C)

1шт.

27

56630H

SEAL

OIL SEAL, transmission driving shaft (for tractors equipped with independent power take-off drive) (note C)

1шт.

28

360739R11

HUB

RETAINER, transmission driving shaft front bearing, w/oil seal, 56630H (for tractors equipped with independent power take-off drive) (note C)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing retainer (for tractors equipped with independent power take-off drive) (note C)

1шт.

30

358878R1

SLEEVE

COUPLING, transmission driving shaft (note A)

1шт.

31

360491R3

SHAFT

transmission main drive (note A)

1шт.

32

ST575

BEARING, BALL,20mm ID x 52mm OD x 15mm W

(drive shaft pilot bearing)

1шт.

33

361314R1

PLUG, reverse idler shaft cup (in rear frame) (note A and B)

1шт.

34

360577R1

SHAFT

reverse idler

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

reverse idler gear

2шт.

36

360578R12

GEAR, reverse idler (21 and 22 teeth) with two bushings, 42312DA

1шт.

37

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft (note A and B)

1шт.

38

358236R1

RING

snap, countershaft rear bearing

1шт.

39

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

(countershaft, rear)

1шт.

40

360557R11

COUNTERSHAFT, transmission, assembly (note A and B) (composed of (1) bushing 43328D, (1) pin 360559R1 (NSS), (1) shaft 360557R1 (NSS), (1) stub shaft 360558R1 (NSS)

1шт.

41

360671R1

COUNTERSHAFT, transmission (will work for 360557R1) (for tractors equipped with independent power take-off drive or torque amplifier) (note C)

1шт.

42

360560R2

SPACER, first speed driving gear

1шт.

43

360561R1

GEAR, driving, first speed (26 teeth)

1шт.

44

360562R1

WHEEL

GEAR, driving, second speed (34 teeth)

1шт.

45

360563R1

GEAR

driving, third speed (40 teeth)

1шт.

46

360566R1

GEAR

driving, fourth speed (45 teeth)

1шт.

47

360567R1

GEAR

constant mesh (61 teeth)

1шт.

48

358847R1

SPACER, constant mesh gear

1шт.

49

358850R1

GASKET

countershaft front bearing cage

1шт.

50

358849R2

CAGE, countershaft front bearing

1шт.

51

ST561

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING, ball, w/snap ring (countershaft, front)

1шт.

52

358852R1

WASHER

LOCK, countershaft front bearing nut

1шт.

53

358853R1

BEARING LOCK NUT

countershaft front bearing

1шт.

54

358848R1

SPACER, countershaft front bearing (note A and B)

1шт.

55

358850R1

GASKET

countershaft front bearing cap (note A and B)

1шт.

56

358851R1

CAP, countershaft front bearing (note A and B)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

365798R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant (for all weather use) (gallon can)

1шт.
