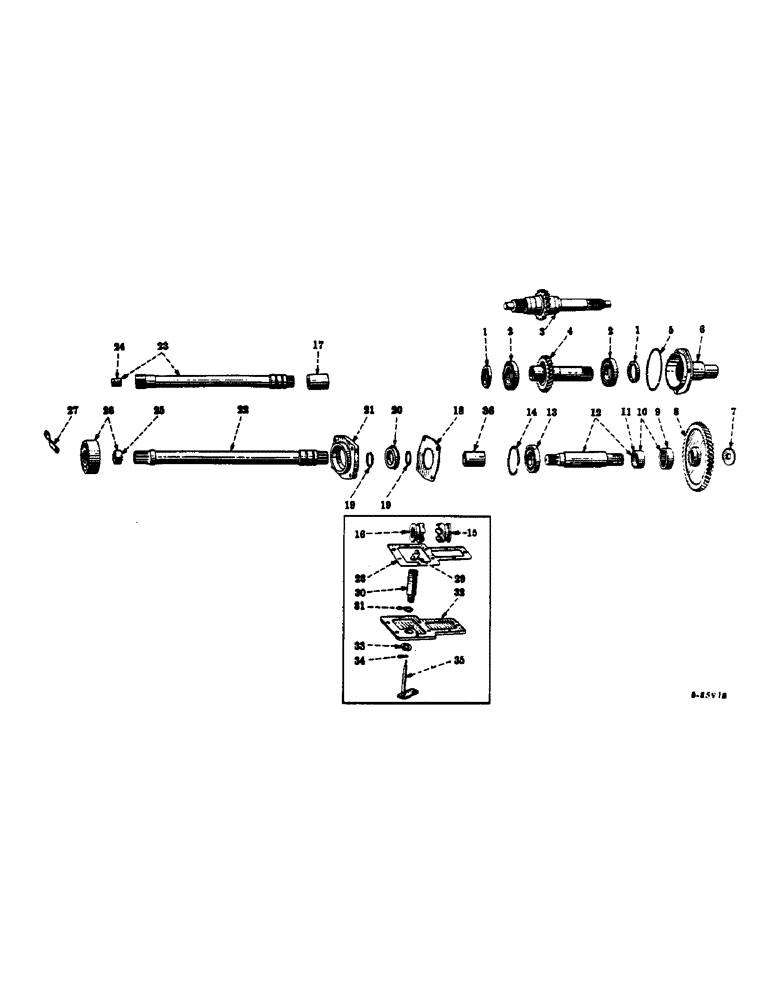

Запчасти Case IH 350 (202) - CHASSIS, POWER TAKE-OFF DRIVE (12) - CHASSIS

1

362119R93

SEAL

OIL SEAL, power take-off drive gear

2шт.

2

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

2шт.

3

363475R12

SHAFT, torque amplifier drive, w/integral power take-off drive gear (19 teeth) and coupling, 364432R91 (see clutch connections) (B only)

1шт.

4

362619R1

SHAFT

AND GEAR (25 teeth), independent power take-off drive (A only)

1шт.

5

358239R1

RING

RIG, seal, power take-off drive shaft bearing cage

1шт.

6

360657R22

CAGE, bearing, powre take-off drive shaft, w/oil seal, 362119R93)

1шт.

NLS

NO LONGER SERVICED

3шт.

7

359972R1

WASHER

retaining, power take-off driven gear

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-1/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

363474R1

GEAR, power take-off driven (62 teeth) (B only)

1шт.

8

362620R1

GEAR

independent power take-off driven (56 teeth) (A only)

1шт.

9

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

needle

1шт.

10

360663R91

BEARING

needle, 360665R91, w/race, 360664R1

1шт.

11

360664R1

RACE

inner

1шт.

12

360658R11

SHAFT

power take-off driven, front, w/race, 360664R1

1шт.

13

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

1шт.

14

359138R1

RING

snap, power take-off driven shaft rear bearing

1шт.

15

359139R2

HUB, seasonal disconnect coupling (see note A) (A only)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, (A only) 1/4" x 1 3/4", Slotted

1шт.

16

359140R2

SLEEVE, seasonal disconnect coupling (see note A) (A only)

1шт.

17

359912R1

COUPLING

power take-off driven shaft (B only)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

18

359142R1

RETAINER, power take-off extension shaft front bearing

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

359141R1

RING, SNAP

power take-off extension shaft front bearing

2шт.

20

ST567

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball, w/snap ring

1шт.

21

359143R2

CAGE, power take-off extension shaft front bearing

1шт.

22

360748R1

SHAFT, independent power take-off extension (A only)

1шт.

23

360668R11

SHAFT, power take-off extension, w/bushing, 43328D (B only)

1шт.

24

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft (B only)

1шт.

25

359145R1

BUSHING

extension shaft rear bearing (1.313" ID, 1.437" OD, .740" long) (A only)

1шт.

25

359915R1

BUSHING, extension shaft rear bearing (1.501" ID, 1.625" OD, .740" long) (B only)

1шт.

26

360749R11

CARRIER, independent power take-off extension shaft rear bearing, w/bushing, 359145R1 (A only)

1шт.

26

360669R11

CARRIER, power take-off extension shaft rear bearing, w/bushing 359915R1 (B only)

1шт.

27

360670R1

STRAP, power take-off extension shaft rear bearing

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

360667R2

GASKET

seasonal disconnect (A only)

1шт.

29

359154R11

BAR

ARM, seasonal disconnect coupling shifter (see note B) (A only)

1шт.

30

359150R1

BEARING, seasonal disconnect coupling shifter shaft (see note B) (A only)

1шт.

138510

LOCK WASHER,Ext Tooth, 7/8"

WASHER, lock, external-tooth, 7/8" (A only)

1шт.

31

359157R1

RING

seal, shifter bearing (see note B) (A only)

1шт.

32

COVER, seasonal disconnect (see clutch connections) (see note B) (A only)

1шт.

33

359151R1

NUT, lock, seasonal disconnect shifter shaft bearing (see note B) (A only)

1шт.

34

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Seasonal disconnect lever shaft (see note B) (A only)

1шт.

35

359152R11

BAR

LEVER, seasonal disconnect couplings shifter, w/shaft (see note B) (A only)

1шт.

271505

BODY

hex., 7/16-20NF (A only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

1шт.

36

359912R1

COUPLING

power take-off driven shaft (not used on tractors equipped with seasonal disconnect), Farmall 300 series, 24837 up, Farmall 350 series, 501 up (A only)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, (A only) 1/4" x 1 3/4", Slotted

1шт.
