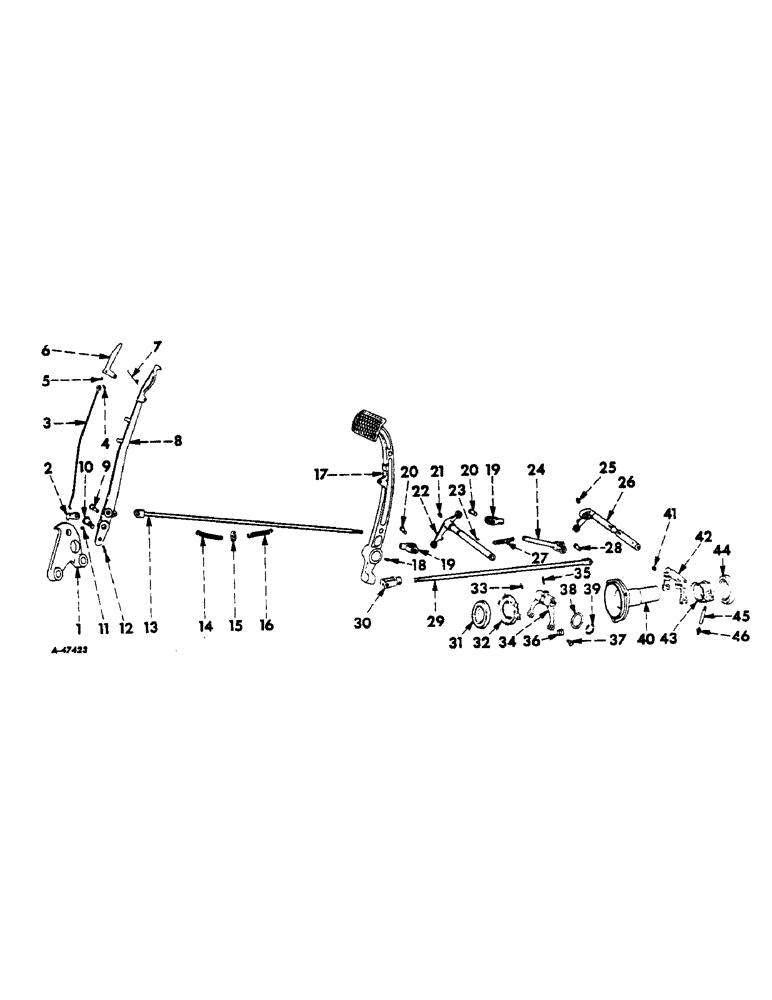

Запчасти Case IH 350 (195) - CHASSIS, CLUTCH CONTROLS AND TORQUE AMPLIFIER CONTROLS (12) - CHASSIS

1

360672R1

RATCHET, torque amplifier operating handle (note C)

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 3-3/4" (note C), Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (Note C) 5/8"

2шт.

2

359925R3

PAWL

torque amplifier operating handle (note C)

1шт.

3

359923R11

ROD, torque amplifier operating handle actuating pawl (note C)

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2" (note C)

1шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x no 16 ga (note C)

1шт.

4

359922R1

PIN

torque amplifier operating handle pawl grip (note C)

2шт.

5

149505

SPRING, retainer, cd-pltd., 3/16" (torque amplifier operating handle pawl grip) (note C)

2шт.

6

359921R1

GRIP, torque amplifier operating handle pawl control (note C)

1шт.

7

359920R2

SPRING

torque amplifier operating handle pawl control grip (note C)

1шт.

8

359917R11

HANDLE, torque amplifier operating, w/pin, 141283 and pin, 359918R1 (note C)

1шт.

9

359918R1

PIN, torque amplifier clutch control rod (note C)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (Note C) 1/8" x 1"

1шт.

10

359919R2

BOLT, torque amplifier operating handle pivot (note C)

1шт.

103029

NUT,9/16"-18, G5

hex., 9/16-18NF (note C)

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, (Note C) 9/16"

1шт.

13611VA

WASHER

plain, 25/32" ID x 1-3/8" OD x no. 11 ga (note C)

1шт.

11

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (torque amplifier operating handle) (optional with 443566) (note C)

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (torque amplifier operating handle) (optional with 273354) (note C)

1шт.

12

141283

SUPPORT,1/2" x 1"

PIN, dowel, 1/2 x 1" (torque amplifier amplifier operating handle stop pin) (note C)

1шт.

13

360673R11

ROD, torque amplifier clutch control, w/yoke (note C)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF (note C)

1шт.

14

357164R1

SPRING

return, torque amplifier operating handle (note C)

1шт.

15

360507R1

ANCHOR

return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

360508R1

SPRING

clutch pedal return

1шт.

17

360506R1

PEDAL, clutch (not illustrated), Farmall 300 series

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

Farmall 300 Series Jam, 1/2"-13, G5

1шт.

114540

PULLEY

SCREW, set, sq-hd., oval-pt., 1/2-13NC x 2-1/4", Farmall 300 series

1шт.

17

366329R1

PEDAL, clutch, Farmall 350 series

1шт.

18

66584D

FITTING

lubrication, straight, drive type, 3/16"

1шт.

19

359928R1

YOKE, torque amplifier clutch operating (note C)

2шт.

20

359929R1

PIN

torque amplifier release lever (note C)

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (Note C) 1/8" x 1"

2шт.

11002VA

WASHER

plain, 17/32" ID x 7/8" OD x no. 16 ga (note C)

4шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Torque amplifier clutch release shaft) (optional with 119512) (note C) 1/8"-27 x .66 lg

2шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (torque amplifier clutch release shaft) (optional with 109461) (note C)

2шт.

22

365960R91

SHAFT

torque amplifier clutch release, w/lever (note C), Farmall 350 series

1шт.

22

360654R11

SHAFT, torque amplifier clutch release, w/lever (note C), Farmall 300 series

1шт.

23

NLS

NO LONGER SERVICED

KEY, woodruff, no. 8 (torque amplifier clutch release shaft) (note C)

2шт.

24

360674R11

ROD, engine clutch to torque amplifier clutch, w/clevis (note C)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF (note C)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (Note C) 1/8" x 1"

1шт.

114787

AXLE PIN

PIN, rod end, drilled, 1/2 x 1-27/64" (note C)

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Clutch release shaft) (optional with 119512) 1/8"-27 x .66 lg

2шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (clutch release shaft) (optional with 109461)

2шт.

26

360504R11

SHAFT, clutch release, w/lever

1шт.

27

360677R1

SPRING

torque amplifier clutch release shaft lever

1шт.

28

114787

AXLE PIN

PIN, clutch operating rod clevis, Farmall 350 series

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

28

352131R1

PIN

clutch operating rod clevis, Farmall 300 series

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

29

366330R11

ROD, clutch operating, w/clevis, Farmall 350 series

1шт.

114796

CONNECTOR, ELEC

NUT, jam, hex., 1/2-20NC

1шт.

29

360509R11

ROD, clutch operating, w/clevis, Farmall 300 series

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

30

6692D

YOKE, clutch operating rod adjustable (optional with 350151R1) Farmall 300 series

1шт.

30

350151R1

YOKE, clutch operating rod adjustable (optional with 6692D) Farmall 300 series

1шт.

4226S

PIN

std-hd., dld., 1/2 x 1-15/16"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

30

213-318

CLEVIS

YOKE, clutch operating rod adjustable, Farmall 350 series

1шт.

114787

AXLE PIN

PIN, clutch operating rod adjustable, yoke

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11002VA

WASHER

plain, 17/32" ID x 7/8" OD x no. 16 ga

1шт.

31

362028R91

BALL BEARING

BEARING, ball, thrust (torque amplifier clutch release) (note C)

1шт.

32

359900R1

RING

SLEEVE, torque amplifier clutch release (note C)

1шт.

33

359901R1

SPRING

torque amplifier clutch release sleeve (note C)

2шт.

34

360653R1

NO LONGER SERVICED

FORK, torque amplifier clutch release (note C)

1шт.

35

359906R1

SCREW

lock, torque amplifier clutch release fork (note C)

1шт.

218438

NUT, jam, hex., 3/8-16NC (note C)

1шт.

36

359903R1

LOCK, pivot, torque amplifier clutch release sleeve (note C)

2шт.

37

359904R1

PIVOT

torque amplifier clutch release sleeve (note C)

2шт.

38

359908R1

THRUST WASHER

torque amplifier clutch release shaft (note C)

2шт.

39

359909R1

RING

RETAINER, torque amplifier clutch release shaft (note C)

2шт.

40

360500R1

CARRIER, clutch release sleeve (for tractors not equipped with independent power take-off drive or torque amplifier)

1шт.

40

360657R22

CAGE, bearing, power take-off drive shaft, w/oil seal, 362119R93 (illustrated with "Power take-off drive") (for tractors equipped with independent power take-off drive or torque amplifier) (note C)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

41

41116D

KEY

clutch release fork

2шт.

42

360503R1

FORK

clutch release

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

360501R2

SLEEVE CYLINDER

SLEEVE, clutch release

1шт.

44

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

ball, thrust (engine clutch release) (will work for 360502R91) (optional with 59879D)

1шт.

REF; 44 NOTES ON 365865R91 CANCEL STATEMENT ABOUT 360502R91 08-MAY-96

1шт.

AND REF. 365865R91

1шт.

44

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

ball, thrust (engine clutch release) (optional with 365865R91)

1шт.

45

365720R1

PIPE

grease, clutch release bearing (used only with sleeve, 360601R2, has threaded hole)

1шт.

REF; 45 SLEEVE 360501RW NOT 601R2 08-MAY-96

1шт.

46

109368

FITTING, lubrication, straight, 5/16-32NEF (optional with Q3618) (used with pipe, 365720R1)

1шт.

46

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, lubrication, straight, 5/16-32NEF (optional with 109368)

1шт.
