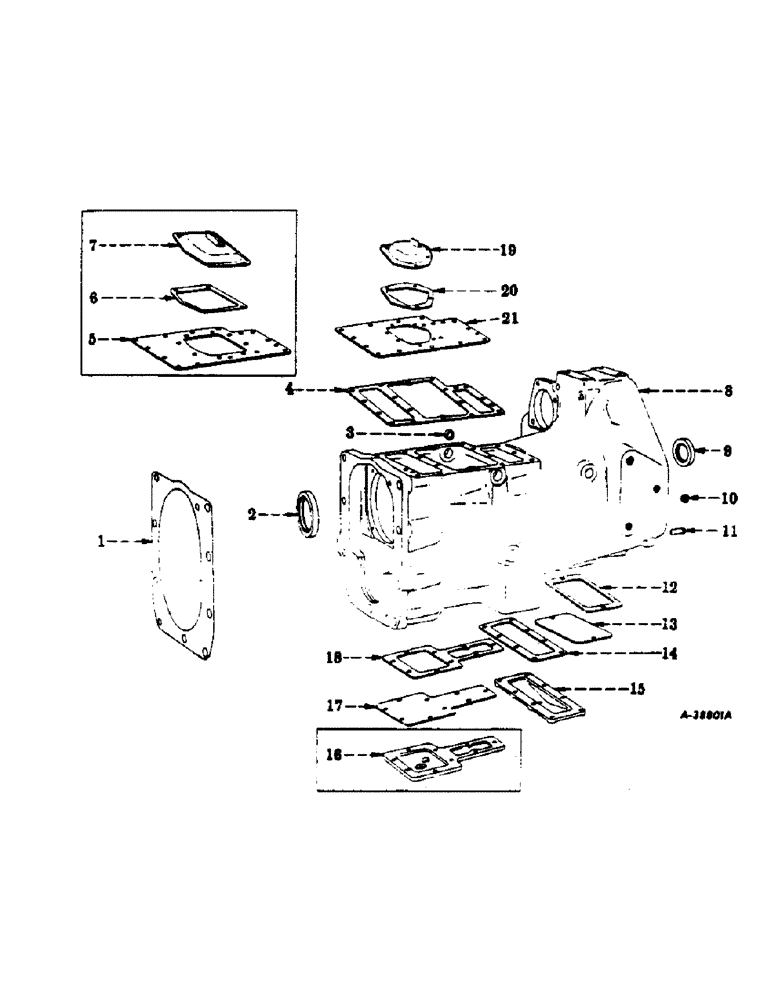

Запчасти Case IH 350 (192) - CHASSIS, CLUTCH HOUSING AND COVERS (12) - CHASSIS

1

360641R1

GASKET

clutch housing (note A)

1шт.

2

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing retainer or planet carrier front bearing (note A)

1шт.

3

359011R1

PLUG

cup (for sealing torque amplifier clutch release shaft openings on tractors not equipped with torque amplifier)

2шт.

4

360642R2

GASKET

clutch housing top cover (note A) (will work for 363362R1)

1шт.

5

360487R2

COVER, clutch housing top (not illustrated) (for tractors not equipped with independent power take-off drive or torque amplifier)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

22828D

SPACER, tool box stud (illustrated with tools and tool box)

2шт.

362609R1

STUD, tool box mounting (illustrated with tools and tool box)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

361185R1

COVER, clutch housing top (note A) (order package, 364893R91), Farmall 300 series, Serial Range: 501-23281

1шт.

6

361187R1

GASKET

clutch housing top cover cap (note A), Farmall 300 series, Serial Range: 501-23281

1шт.

7

361189R1

CAP, clutch housing top cover (note A), Farmall 300 series, Serial Range: 501-23281

1шт.

181353

SCREW, cap, hex-hd., 3/8-24NF x 7/16"

4шт.

8

368478R91

1шт.

HOUSING, clutch, assembly (will work for 360486R31, 360640R92 and 360738R98) (note A) (composed of (1) bearing 360665R91, (1) cork 104937, (1) housing 368479R1 (NSS), (1) oil seal 361248R92, (1) oil seal 362119R93, (1) plug 103868, (1) plug 187056, (8) plug 364683R1, (2) plug 359011R1)

1шт.

104937

PLUG

CORK, no. 1-7/16 x 5/8", long

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. (Oil level plug) Sq Hd, 1/2"-14 NPTF

1шт.

187056

PLUG, pipe, sq-hd., C1, 2" (power take-off driven shaft opening plug) (note A)

1шт.

12576R1

SCREW, cap, hex-hd., 1/2-13NC x 6-3/4" (for tractors without the steering gear stabilizer bracket)

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, hex-hd., 5/8-11NC x 2"

9шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

9

362119R93

SEAL

OIL SEAL, power take-off drive gear (optional with 303514R91) (note A)

1шт.

9

363514R92

SEAL

OIL SEAL, power take-off drive gear (optional with 362119R92) (note A)

1шт.

10

364683R1

PLUG, clutch housing dust seal (used to plug implement mounting holes) (will work for 64881D)

8шт.

11

45979D

STUD

PIN, dowel, engine rear support

2шт.

12

360871R1

GASKET

bottom, clutch compartment

1шт.

13

360872R1

COVER

bottom, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

359129R2

GASKET

power take-off driven gear cover (note A)

1шт.

15

359010R1

COVER, power take-off drive compartment (not illustrated) (for tractors not equipped with independent power take-off drive or torque amplifier)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

8шт.

15

359128R11

COVER, power take-off driven gear, w/plug, 143162 (note A)

1шт.

143162

PLUG

pipe, sq-socket, stl., 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

8шт.

16

360870R1

COVER, seasonal disconnect (for tractors equipped with independent power take-off drive and seasonal disconnect)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

8шт.

17

360869R1

1шт.

COVER, bottom, clutch housing, rear (for tractors without independent power take-off drive or torque amplifier with independent power take-off drive), Farmall 300 series, 501 to 24836, (for all models) Farmall 300 series, 24837 up, (for all models Farmall 350 series, 501 up

1шт.

366464R91

SCREW, cap, hex-hd., w/internal-tooth lockwasher

9шт.

18

360667R2

GASKET

seasonal disconnect or bottom cover (note A)

1шт.

19

364720R1

CAP

clutch housing top cover w/guide (for carbureted engine tractors) (note A), Farmall 300 series, 23282 up, Farmall 350 series, 501 up

1шт.

181352

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 3/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

364721R1

GASKET

clutch housing top cover cap (note A), Farmall 300 series, 23282 up, Farmall 350 series, 501 up

1шт.

21

361185R2

COVER, clutch housing top (not used on tractors with liquefied petroleum gas burning engine) (note A), Farmall 300 series, 23282 up, Farmall 350 series, 501 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

15шт.

362609R1

STUD, tool box mounting (illustrated with tools and toolbox), Farmall 300 series, 501, Serial Range: -295481

2шт.

Farmall 300 series, 295482 up

3шт.

21

364719R1

COVER, clutch housing top (not illustrated) (for diesel or liquefied petroleum gas burning engine tractors) (see note A)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

14шт.

359716R1

COVER, cranking motor opening (for tractors without starting and lighting system)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

363819R92

PACKAGE, implement bracket, complete (special) (for implement attachments) (consists of (1) cover 363818R1, (1) gasket 359129R1, (8) screw 179840, (8) washer 103321)

1шт.

363818R1

COVER, power take-off drive compartment, w/implement bracket (for implement attachments)

1шт.

143162

PLUG

pipe, sq-socket, stl., 3/8"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

364893R91

PACKAGE, service clutch housing top cover (will work for cap, 361189R1, cover, 361185R1 and gasket, 361187R1), Farmall 300 series, 501 to 23281, (consists of (1) cap 364720R1, (1) cover 361185R2, (1) gasket 364721R1)

1шт.
