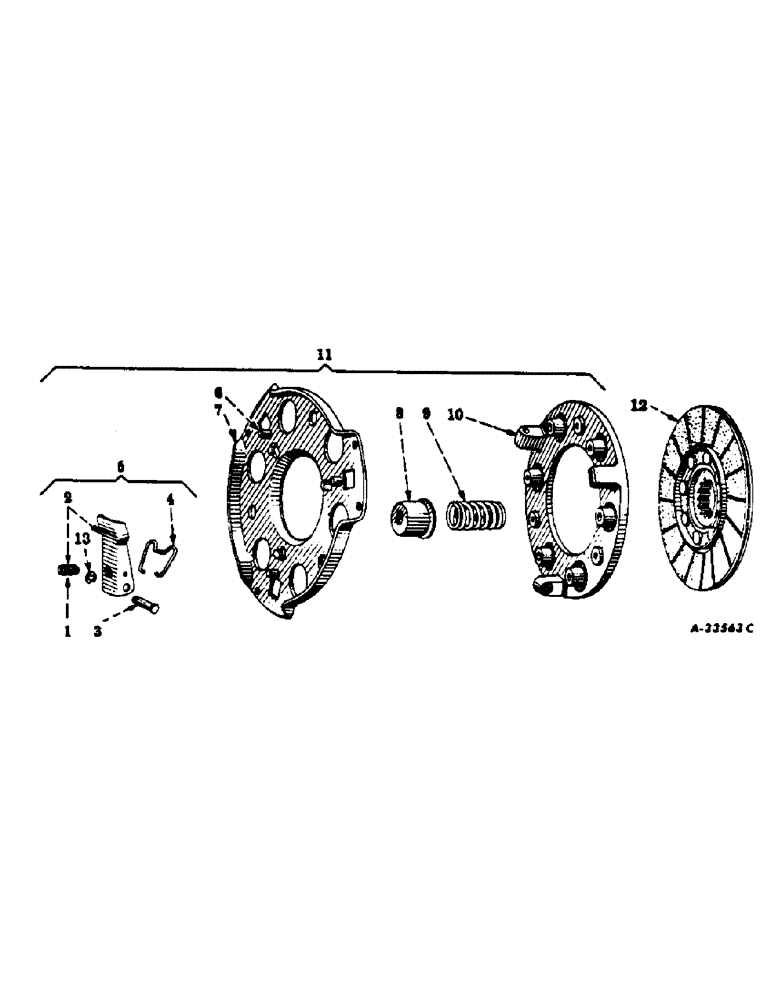

Запчасти Case IH 350 (190) - CHASSIS, CLUTCH, 7 INCH, FOR TRACTORS EQUIPPED WITH TORQUE AMPLIFIER (12) - CHASSIS

1

359935R1

ADJUSTMENT SCREW

adjusting, lever

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

2

359936R11

LEVER

w/nut, 114493, AND SCREW, 359935R1

3шт.

3

359938R1

PIN

lever (dld. end) (order 369116R91 package)

3шт.

3

369106R1

PIN

torque amplifier clutch release lever

3шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), (Used w/dld., pin) 3/32" x 1/2"

3шт.

4

359937R2

SPRING

lever

3шт.

5

359948R93

KIT

PACKAGE, lever, assembly (consists of (3) lever 359936R11, (3) pin 369106R1, (3) ring 369107R1, (3) spring 359937R2)

1шт.

6

359933R1

SEAT, lever adjusting screw

3шт.

7

359932R91

PLATE, back, w/three seats, 359933R1

1шт.

8

359934R1

CUP, pressure plate spring

6шт.

9

359939R2

SPRING

pressure plate

6шт.

9

360237R92

PACKAGE

pressure plate spring (consists of six springs, 359939R2)

1шт.

10

359946R1

PLATE, pressure, Farmall 300 series, Serial Range: 501-3139

1шт.

10

362197R1

PLATE ASSY.

PLATE, pressure, Farmall 300 series, 3140 up, Farmall 350 series, 501 up

1шт.

11

360215R93

PLATE

pressure, clutch, assembly (composed of (6) cup 359934R1, (1) package 359948R93, (1) package 360237R92, (1) plate 359932R91, (1) plate 362197R1)

1шт.

12

367910R91

DISC

driven, clutch, w/bonded facing (will work for 359944R91)

1шт.

13

369107R1

SNAP RING,#21, Ext

Ring, Snap, , torque amplifier clutch release lever pin #21, Ext

3шт.

369116R91

PACKAGE

torque amplifier clutch release lever pin (consists of one pin, 369106R1, and one ring, 369107R1)

1шт.

28754D

RIVET, clutch facing (for service on 359944R91 only)

12шт.

359973R91

FACING SET, clutch (consists of two facings, w/twelve rivets, 28754D) (for service on 359944R91)

1шт.
