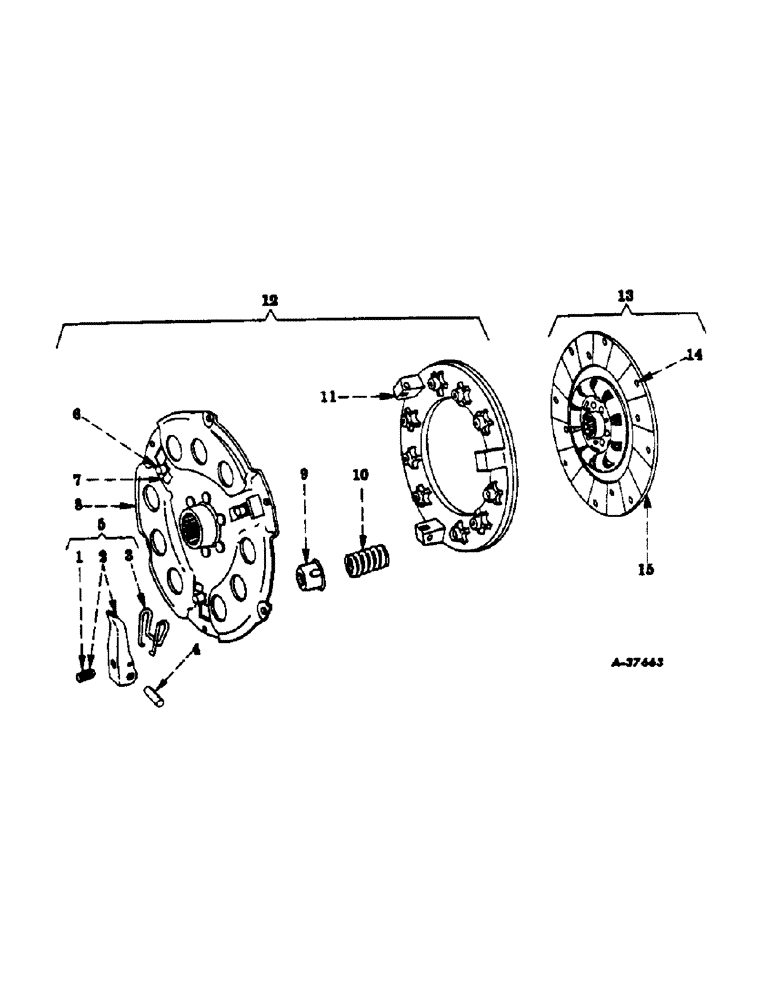

Запчасти Case IH 350 (188) - CHASSIS, CLUTCH, 10-1/2 INCH, I.H. (12) - CHASSIS

1

358307R1

SPARE PART SCREW, adjusting, lever

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

NUT, Jam, 7/16"-20, G5

3шт.

2

360857R11

LEVER

LEVER, release, clutch, w/nut, 272121 and screw, 358307R1

3шт.

3

365724R1

SPRING

SPRING, lever (will work for 358297R2)

3шт.

4

358298R1

PIN

PIN, lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

5

360856R93

LEVER

PACKAGE, lever, assembly (consists of (3) lever 360857R11, (3) pin 358298R1, (3) pin 107762, (3) spring 365724R1)

1шт.

6

360854R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

358295R1

SPARE PART CLIP, lever spring

3шт.

8

360851R91

BACKING PLATE

PLATE, back, w/hub, three clips, 358295R1 and three seats, 360854R1

1шт.

9

358292R1

SPARE PART CUP, clutch pressure spring

9шт.

10

360850R1

SPARE PART SPRING, clutch pressure (regulator duty)

9шт.

10

360849R91

PACKAGE

PACKAGE, clutch pressure spring (consists of nine spring, 360850R1) (regular duty)

1шт.

10

367255R91

SPARE PART PACKAGE, clutch pressure spring (consists of nine springs) (heavy duty)

1шт.

11

360848R1

CLUTCH PLATE

PLATE, pressure

1шт.

12

360746R91

CLUTCH PLATE

PLATE, pressure, clutch, assembly (optional with 360745R93) (composed of (9) cup 358292R1, (1) package 360849R91, (1) package 360856R93, (1) plate 360848R1, (1) plate 360851R91)

1шт.

12

376360R94R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, 10.5 in

1шт.

12

376360R94C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

384633R91R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 10 1/2 in., 10 Tooth Hub, 4 Paddle Disc Assembly

1шт.

12

384633R91C

CORE-CLUTCH DISC

Return Part Number

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

360488R92

DISC

DISC, driven, clutch, w/facing set, 358592R11 (regular duty)

1шт.

13

367902R91

CLUTCH

DISC, driven, clutch, w/facings (heavy-duty) (not illustrated)

1шт.

14

61176V

RIVET

RIVET, clutch facing

14шт.

15

358592R11

FACING

FACING SET, clutch (consists of two facings, w/fourteen rivets, 61176V) (regular duty)

1шт.
