Запчасти Case IH 350 (186) - CHASSIS, FUEL STRAINERS, FOR TRACTORS EQUIPPED W/ DISTILLATE, GASOLINE, OR KEROSENE BURNING ENGINES (12) - CHASSIS

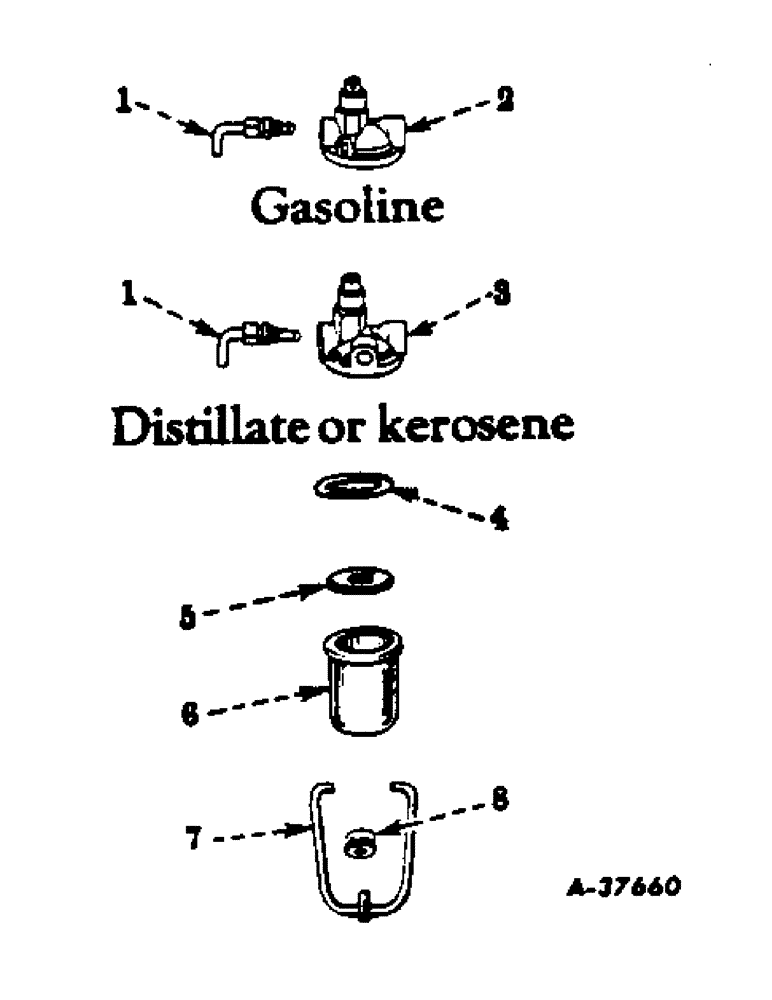

Схема запчастей Case IH 350 - (186) - CHASSIS, FUEL STRAINERS, FOR TRACTORS EQUIPPED W/ DISTILLATE, GASOLINE, OR KEROSENE BURNING ENGINES (12) - CHASSIS
6
5
1
1
2
3
7
8
4

Артикул

Название

Примечание

Количество

1

259403R91

COCK

STEM, w/two nuts and packing

1шт.

2

363752R91

BODY

strainer, w/baffle (gasoline) (A and C only)

1шт.

3

363753R91

BODY, strainer, w/baffle (distillate or kerosene (B and D only)

1шт.

4

355888R2

GASKET

strainer

1шт.

5

13194D

STRAINER ASSY.

SCREEN, strainer

1шт.

6

58839D

BOWL

strainer (metal) (C and D only)

1шт.

6

357957R1

BOWL

strainer (glass) (A and B only)

1шт.

7

17564D

HOLDER

BAIL, strainer

1шт.

8

17565DA

CUP

NUT, strainer

1шт.

Выбрано товаров: 9
