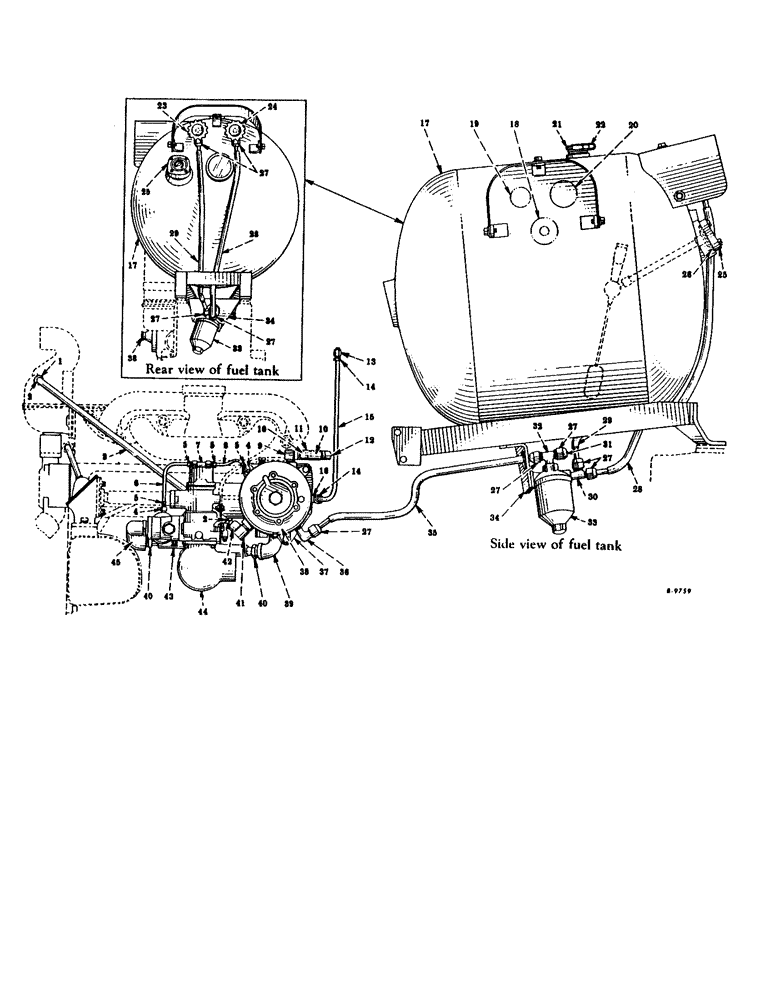

Запчасти Case IH 350 (182) - CHASSIS, FUEL SYSTEM, FOR TRACTORS EQUIPPED WITH LIQUIFIED PETROLEUM GAS BURNING ENGINES (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
35653H
CONNECTOR, 37287H, w/nut, 37288H
1шт.
1
37287H
CONNECTOR, male, hi-duty tube fitting brs., 1/2" OD tubing
1шт.
2
222-506
TUBE NUT,11/16"-16
NUT, hi-duty tube fitting, brs., 1/2" OD tubing
2шт.
3
363791R11
PIPE, water, w/two nuts, 37288H
1шт.
4
36521DX
CONNECTOR, 36521D, w/nut, 25038HA
2шт.
4
36521D
CONNECTOR, male, hi-duty tube fitting brs., 3/16" OD tubing
2шт.
5
25038HA
TUBE NUT,3/8"-24
NUT, hi-duty tube fitting, brs., 3/16" OD tubing
4шт.
6
363789R11
PIPE, economizer, w/two nuts, 25038HA
1шт.
7
80020HA
TEE, hi-duty tube fitting, brs., 3/16 OD tubing
1шт.
8
363790R11
PIPE, idle, w/two nuts, 25038HA
1шт.
9
364264R1
ELBOW, cylinder head to regulator water pipe
1шт.
10
364670R1
PIPE, water hose (cylinder, Serial Range: head-regulator)
2шт.
11
364669R1
HOSE, water (cylinder, Serial Range: head-regulator)
1шт.
39093H
HOSE CLAMP
CLAMP, water hose
2шт.
12
120063
BOLT,Hex, M8 x 80, 8.8
street, 90 degrees x 3/8" (cylinder head end)
1шт.
13
366117R11
CONNECTOR, balance pipe, 366117R1, w/nut 29899D (air cleaner end)
1шт.
13
366117R1
CONNECTOR, balance pipe
1шт.
14
222-503
TUBE NUT,1/2"-20
NUT, hi-duty tube filling brs., 5/16" OD tubing
2шт.
15
363806R11
PIPE, balance, w/two nuts, 29899D
1шт.
16
24847HX
ELBOW, 24847H, w/nut, 29899D
1шт.
16
24847H
ELBOW,90 Degree x 1/8" NPT x 1/2"-20
male pipe, hi-duty tube fitting brs., 90 degrees 5/16" OD tubing (regulator end)
1шт.
17
364273R91
TANK, fuel, w/valves, assembly (composed of (1) cap 363691R1, (1) gage 357068R91, (1) gage 364673R91, (1) tank 364272R91 (NSS), (1) valve 357064R92, (2) valve 357068R91, (1) valve 363687R91, (1) valve 363689R91)
1шт.
179860
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"
2шт.
181361
BOLT,Hex, 3/8" - 24 x 7/8", Gr 5
SCREW, cap, hex-hd., 3/8-24NF x 7/8"
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
18
357068R91
GAGE, fixed, liquid level, w/clip, dial and valve, 359830R91 (not illustrated) (Selwyn-Pacific) (optional with 363693R91)
1шт.
18
363693R91
GAGE, fixed, liquid level w/dial and clip (Bastian-Blessing Co.) (optional with 357068R91)
1шт.
18
359830R91
VALVE, and disc out-age (not illustrated) (used with valve, 357068R91)
1шт.
19
357064R92
VALVE, vapor and excess flow, assembly (Selwyn-Pacific) (optional with 363694R91) (for components see list of parts under details of "Vapor and Excess Flow Valve")
1шт.
19
363694R91
VALVE, vapor and excess flow (Bastian-Blessing) (optional with 357064R92)
1шт.
20
363687R91
VALVE, filler back check (Selwyn-Pacific) (optional with 363688R91)
1шт.
20
363688R91
VALVE, filler back check (Bastian-Blessing) (optional with 363687R91)
1шт.
21
363689R91
VALVE, relief (not illustrated) (optional with 363690R91)
1шт.
21
363690R91
VALVE, relief (optional with 363689R91)
1шт.
22
363691R91
CAP, relief, valve rain, w/chain and wire (not illustrated) (optional with 363692R1)
1шт.
22
363692R1
CAP, relief, valve rain (rubber) (optional with 363691R91)
1шт.
23
357069R91
VALVE, service, vapor, w/handwheel and excess flow check (Selwyn-Pacific) (for components see list of parts under details of service valve, w/handwheel and excess flow check) (optional with 357630R92) (order 109850R91)
1шт.
23
357630R92
VALVE, service, vapor, w/handwheel and excess flow check (Bastian-Blessing) (optional with 357069R91) (order 109850R91)
1шт.
24
357630R92
VALVE, service, liquid, w/handwheel and excess flow check (Bastian-Blessing Co) (optional with 357069R91) (order 109850R91)
1шт.
24
357069R91
VALVE, service liquid, w/handwheel and excess flow check (Selwyn- Pacific Co) (optional with 357630R92) (for components see list of parts under detail of "Service Valve with Handwheel and Excess Flow Check") (order 109850R91)
1шт.
25
364673R91
GAGE, magnetic, liquid level (optional with 365248R91)
1шт.
25
365248R91
GAGE, magnetic, liquid level (optional with 364673R91) (not illustrated)
1шт.
225594
SCREW
fillister head, cd-pltd., 5/16-24NF x 1"
4шт.
26
364263R1
GASKET, liquid level magnetic gage
1шт.
27
357078R1
NUT, fuel line, (optional with 361533R1)
7шт.
27
361533R1
NUT, fuel line, (optional with 357078R1)
7шт.
28
364049R11
LINE, fuel, w/loom and two nuts, 357078R1 (liquid, Serial Range: valve-filter)
1шт.
29
364050R11
LINE, fuel, w/loom and two nuts, 357078R1 (vaport, Serial Range: valve-filter)
1шт.
30
364598R1
TEE, fuel filter
1шт.
31
357495R1
CAP, fuel line tee
1шт.
32
364602R1
TEE, fuel line, Serial Range: (filter-regulator)
1шт.
33
64147D
FILTER, fuel (for components see list of parts under details of "Fuel Filter")
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
34
364060R1
BRACKET, fuel filter mounting
1шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
35
364270R11
LINE, fuel, w/loom and two nuts, 357078R1, Serial Range: (filter-regulator)
1шт.
36
109563R1
ELBOW
90 degrees (at regulator)
1шт.
37
363794R11
BRACKET, regulator
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
38
357051R91
REGULATOR, fuel, assembly (for components see list of parts under details of "Fuel Regulator")
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
39
108686
ELBOW,90 Degree, 1/2" NPT Street
street 90 degrees, 1/2"
1шт.
40
357484R1
FITTING, straight, 5/8" ID hose x 1/2" NPT
2шт.
41
364264R1
ELBOW, water pipe, regulator to thermostat housing
1шт.
42
40876DX
ELBOW
40876D, w/nut, 37288H
1шт.
42
40876D
ELBOW, male pipe, hi-duty tube fitting, brs., 90 degrees, 1/2" OD tubing 90º x 3/8" NPT x 11/16"-16
1шт.
43
364668R1
HOSE, fuel line, Serial Range: regulator-carburetor
1шт.
261498R91
COLLAR CLAMP,nasp
CLAMP, hose, fuel line (will work for 39093H)
2шт.
44
364682R91
CARBURETOR, assembly (for components see list of parts under details of "Carburetor")
1шт.
103026
NUT,3/8"-24, G5
2шт.
12215D
STUD
carburetor
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
45
363796R1
BEND, fuel line return
1шт.
