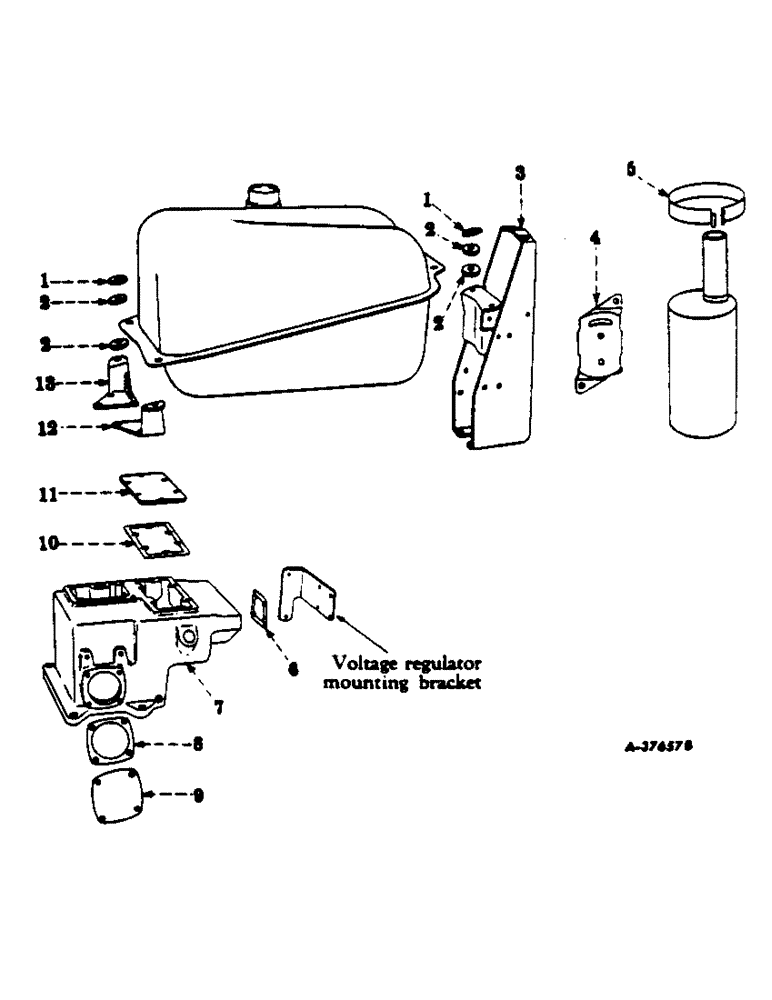

Запчасти Case IH 350 (179) - CHASSIS, FUEL TANK SUPPORTS AND HYDRAULIC RESERVOIR (12) - CHASSIS

1

362321R1

RETAINER, fuel tank insulating pad (for distillate, gasoline, and kerosene burning engine)

4шт.

2

60671D

INSULATOR BLOCK

PAD, fuel tank insulating (for distillate, gasoline, and kerosene burning engine)

8шт.

3

361488R41

SUPPORT, fuel tank and air cleaner, w/two nut, 363885R91 (not used on tractors equipped with liquefied petroleum gas or diesel burning engine) will work for 363620R21

1шт.

3

364860R92

SUPPORT, fuel tank and air cleaner, w/two nut, 363885R91 (not illustrated) (for tractors equipped with liquefied petroleum gas burning engine)

1шт.

3

366763R91

SUPPORT, fuel tank and air cleaner, w/two nut, 363885R91 (for tractors equipped with diesel burning engine)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage hood center channel fastener screw (note B)

2шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

4

363103R1

BRACKET, gasoline tank (note A)

1шт.

102635

NUT,3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

357816R1

BAND, gasoline tank bracket (note A)

2шт.

25-285

SQUARE NUT,Sq, 5/16"-18

sq., 5/16-18NC

2шт.

117296

SCREW, slotted-fil-hd., 5/16-18NC x 1-1/2"

2шт.

6

362448R1

GASKET, reservior end

1шт.

7

361520R11

RESERVOIR, hydraulic, w/plug 103879 and plug 143999 (order package, 364071R91), Farmall 300 series, Serial Range: 501-18161

1шт.

7

361520R21

RESERVOIR, hydraulic, w/plug, 103879 and plug 143999, Farmall 300 series, 18162 up, Farmall 350 series, 501 up

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (drain plug)

1шт.

143999

PLUG

pipe, sq., socket, stl., 3/4" (filler hole plug) (not used in tractors equipped with hydra-touch system)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

8

361441R1

GASKET

reservoir side plate

1шт.

9

363088R1

PLATE, reservoir side (not used on tractors equipped with hydar-touch system)

1шт.

179812

GEAR

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

4шт.

10

361443R2

GASKET

reservoir top cover plate

1шт.

11

361442R2

PLATE, reservoir top cover

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (not used on tractors equipped with hydra-touch system)

1шт.

12

361400R21

SUPPORT, rear, fuel tank, RH (for distillate, gasoline and kerosene burning engine)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8", Farmall 300 series, 501 to 18161

3шт.

Farmall 300 series, 18162 up, Farmall 350 series, 501 up

2шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8", Farmall 300 series, 18162 up, Farmall 350 series, 501 up

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Farmall 300 series, 501 to 18161 3/8"

3шт.

Farmall 300 series, 18162 up, Farmall 350 series, 501 up

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Farmall 300 series, 18162 up, Farmall 350 series, 501 up 7/16"

1шт.

13

361399R21

SUPPORT, rear, fuel tank, LH (for distillate, gasoline, burning engine)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8", Farmall 300 series, 501 to 18161

3шт.

Farmall 300 series, 18162 up, Farmall 350 series, 501 up

2шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8", Farmall 300 series, 18162 up, Farmall 350 series, 501 up

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Farmall 300 series, 501 to 18161 3/8"

3шт.

Farmall 300 series, 18162 up, Farmall 350 series, 501 up

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Farmall 300 series, 18162 up, Farmall 350 series, 501 up 7/16"

1шт.

364071R91

PACKAGE, service hydraulic reservoir (will work for 361520R11) (consists of gasket, 361443R2, reservoir, 361520R21 and two screws 179866), Farmall 300 series, Serial Range: 501-18161

1шт.
