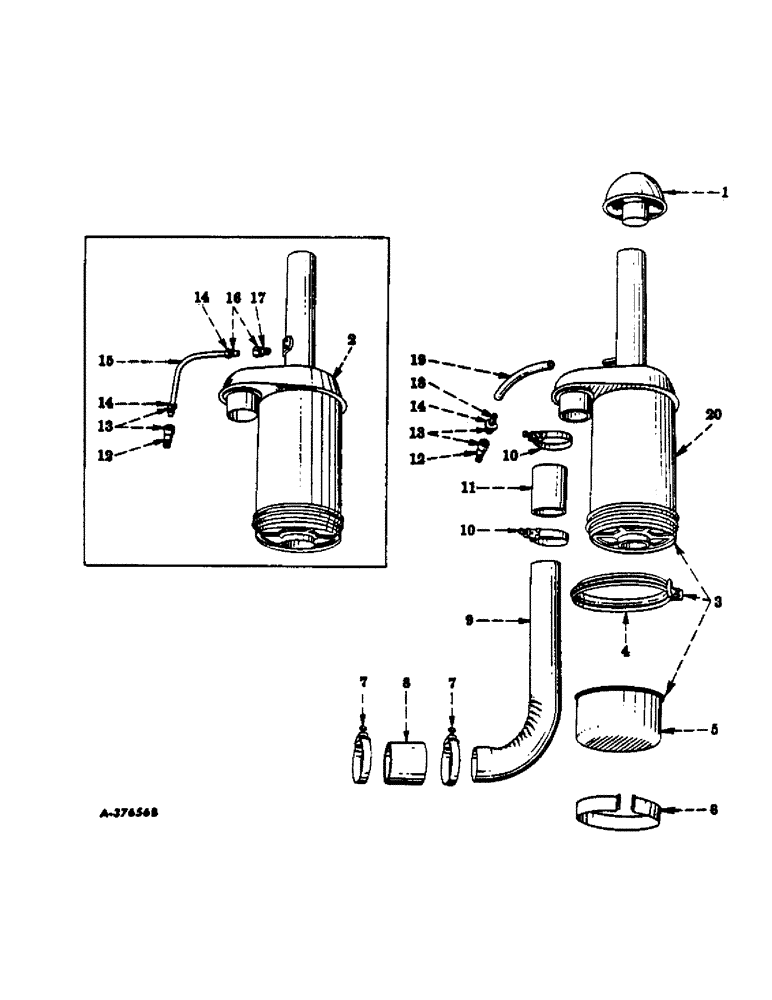

Запчасти Case IH 350 (174) - CHASSIS, AIR CLEANER AND CONNECTIONS, FOR CARBURETED ENGINE TRACTORS (12) - CHASSIS

1

353019R92

CYLINDER END CAP

CAP, air cleaner intake pipe

1шт.

2

361807R91

BODY, w/cover, element, and screens, Farmall 300 series, Serial Range: 501-18066

1шт.

2

361804R91

CLEANER, air, assembly, Farmall 300 series, 501 to 18066, (composed of (1) body 361807R91, (1) clamp 52865DA, (1) cup 362974R91)

1шт.

3

364286R91

CLEANER, air, assembly (for tractors without liquefied petroleum gas burning engine), Farmall 300 series, 18067 up, Farmall 350 series, 501 up (composed of (1) body 364806R91, (1) clamp 52865DA, (1) cup 362974R91)

1шт.

3

364281R91

CLEANER, air, assembly (for tractors with liquefied petroleum gas burning engine) (composed of (1) body 364805R91, (1) clamp 52865DA, (1) cup 362975R91)

1шт.

4

52865DA

CLAMP

oil cup retaining, w/nut, screw and washer

1шт.

5

362974R91

CUP, oil

1шт.

6

357816R1

BAND, air cleaner mounting

2шт.

105605

NUT

sq., 5/16-18NC

2шт.

117296

SCREW, slotted-fil-hd., 5/16-18NC x 1-1/2"

2шт.

7

45813D

CLAMP

air cleaner pipe to carburetor hose, w/clip, nut and screw

2шт.

8

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

9

361814R1

PIPE, air cleaner (for tractors not equipped with liquefied petroleum gas burning engine)

1шт.

9

364047R1

PIPE, air cleaner (for tractors equipped with liquefied petroleum gas burning engine)

1шт.

10

45715D

CLAMP

air cleaner pipe to air cleaner hose, w/clip, nut, and screw

2шт.

11

362760R1

HOSE, air cleaner pipe to air cleaner (2" ID x 3" long x 3 ply)

1шт.

12

361815R1

ELBOW, breather pipe (valve cover end)

1шт.

13

361815R11

ELBOW, 361815R1, w/nut, 37165D

1шт.

14

222-504

TUBE NUT,9/16"-20

NUT, hi-duty tube fitting, brs., 3/8" OD tubing, Farmall 300 series, 501 to 18066

2шт.

Farmall 300 series, 18067 up, Farmall 350 series, 501 up

1шт.

15

361816R11

PIPE, air cleaner to valve cover, w/two nuts, 37165D, Farmall 300 series, 501 to 18066, Farmall 350 series, 501 up

1шт.

16

38026DMX

CONNECTOR, ELEC

CONNECTOR, 38026DM, w/nut, 37165D, Farmall 300 series, 501 to 18066, Farmall 350 series, 501 up

1шт.

17

38026DM

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR, male, hi-duty tube fitting, brs., 3/8" OD tubing, Farmall 300 series, 501 to 18066, Farmall 350 series, 501 up

1шт.

18

364252R1

PIPE, breather, Farmall 300 series, 18067 up, Farmall 350 series, 501 up

1шт.

19

364441R1

HOSE, air cleaner to valve cover (for tractors without liquefied petroleum gas burning engine), Farmall 300 series, 18067 up, Farmall 350 series, 501 up

1шт.

19

368982R1

HOSE, air cleaner pipe to air cleaner (for tractors with liquefied petroleum gas burning engine) (will work for 259112R1)

1шт.

20

364806R91

BODY, w/cover, element, and screens (for tractors without liquefied petroleum gas burning engine), Farmall 300 series, 18067 up, Farmall 350 series, 501 up

1шт.

20

364805R91

BODY, w/cover, element, and screens (for tractors with liquefied petroleum gas burning engine)

1шт.

ATTACHMENT, air cleaner extension pipe (see attachments)

1шт.

ATTACHMENT, pre-cleaner (see attachments)

1шт.

ATTACHMENT, pre-screener (see attachments)

1шт.
