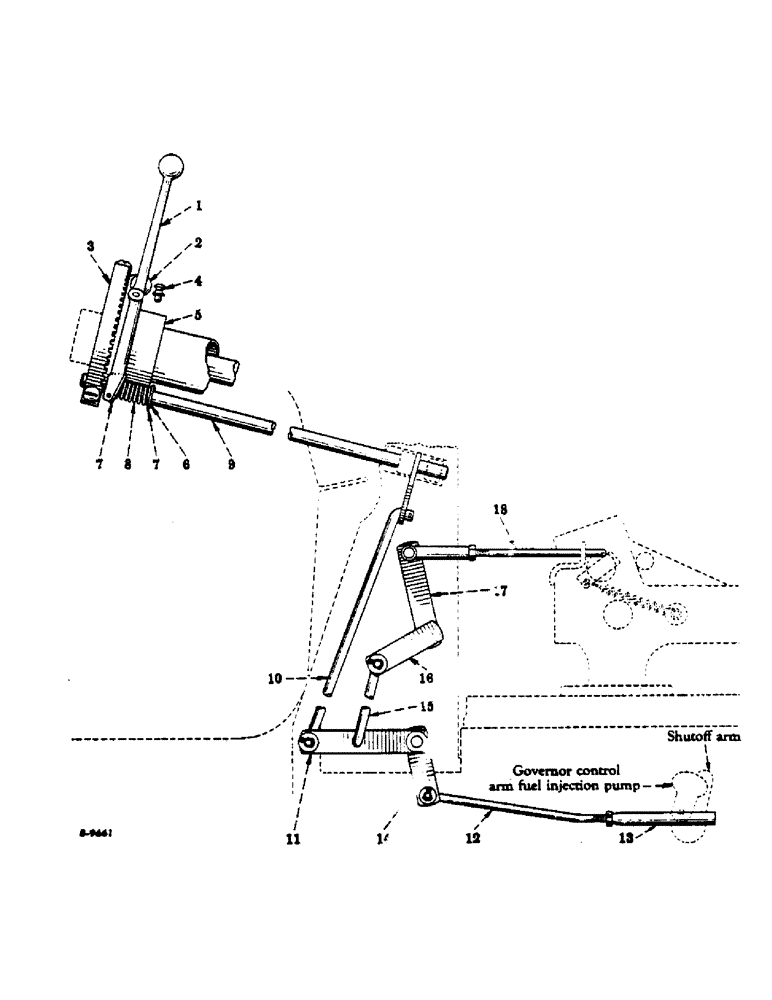

Запчасти Case IH 350 (172) - CHASSIS, ENGINE SPEED AND AIR RESTRICTION VALVE CONTROLS, FOR DIESEL ENGINE TRACTORS (12) - CHASSIS

1

362065R1

HANDLE

engine speed control (not used on tractors equipped with cotton picker mounting parts)

1шт.

17047R1

LOCK PIN,5/32" x 7/8", Slotted

Pin, 5/32" x 7/8", Slotted

1шт.

1

364160R1

HANDLE, engine speed control (for tractors equipped with cotton picker mounting parts) (not illustrated)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

364159R1

HUB, engine speed control (for tractors equipped with cotton picker mounting parts)

1шт.

17047R1

LOCK PIN,5/32" x 7/8", Slotted

Pin, 5/32" x 7/8", Slotted

1шт.

2

362066R2

KEY, engine speed control handle

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 3/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

362064R1

SECTOR, engine control

1шт.

120571

SCREW

machine, slotted-truss-hd., 1/4-20NC x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

110161

FITTING, lubrication, straight, drive type, 3/16" (engine speed control sector bracket) (optional with 125617)

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (engine speed control sector bracket) (optional with 110161)

1шт.

5

362063R11

BRACKET, engine speed control sector w/110161 fitting, Farmall 350 series, Serial Range: 501-10785

1шт.

5

368727R1

BRACKET, engine speed control sector, Farmall 350 series, 10786 up

1шт.

138243

PIN

SCREW, cap, hex-socket-hd., 3/8-16UNC x 1-1/4"

1шт.

6

446220

WASHER

plain, 1/2" ID x 1-1/8" OD x no 14 ga

1шт.

7

363665R1

WASHER, engine speed control rod

2шт.

17283R1

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

2шт.

8

354746R1

SPRING

engine speed control handle

1шт.

9

362090R2

ROD, engine control, upper

1шт.

10

366785R1

ROD, engine control, center

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11034

WASHER,1/4"

plai, 11/32" ID x 11/16" OD x .065

2шт.

11

366786R11

ARM, engine control pivot shaft w/hub, RH

1шт.

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, 5/32" x 3/4", Slotted

1шт.

12

366789R1

ROD, engine speed control, front

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x .065

1шт.

13

366795R91

BALL JOINT

BALL, joint, adjustable

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

366788R11

SHAFT, pivot, engine speed control

1шт.

15

366817R1

ROD, air restriction valve, rear

1шт.

107762

WASHER,3/32" x 5/8"

PIN, roll, 3/32 x 5/8"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x .065

2шт.

16

366818R11

ARM, air restriction valve pivot shaft w/hub, LH

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

366819R11

SHAFT, air restriction valve pivot

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

496-21047

WASHER

plain, 1 /32" ID x 59/64" OD x .065

1шт.

18

366821R1

ROD, air restriction valve, front

1шт.

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, air restriction valve front rod

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

Q5013

PIN

std-hd., dld., 1/4 x 15/16

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.
