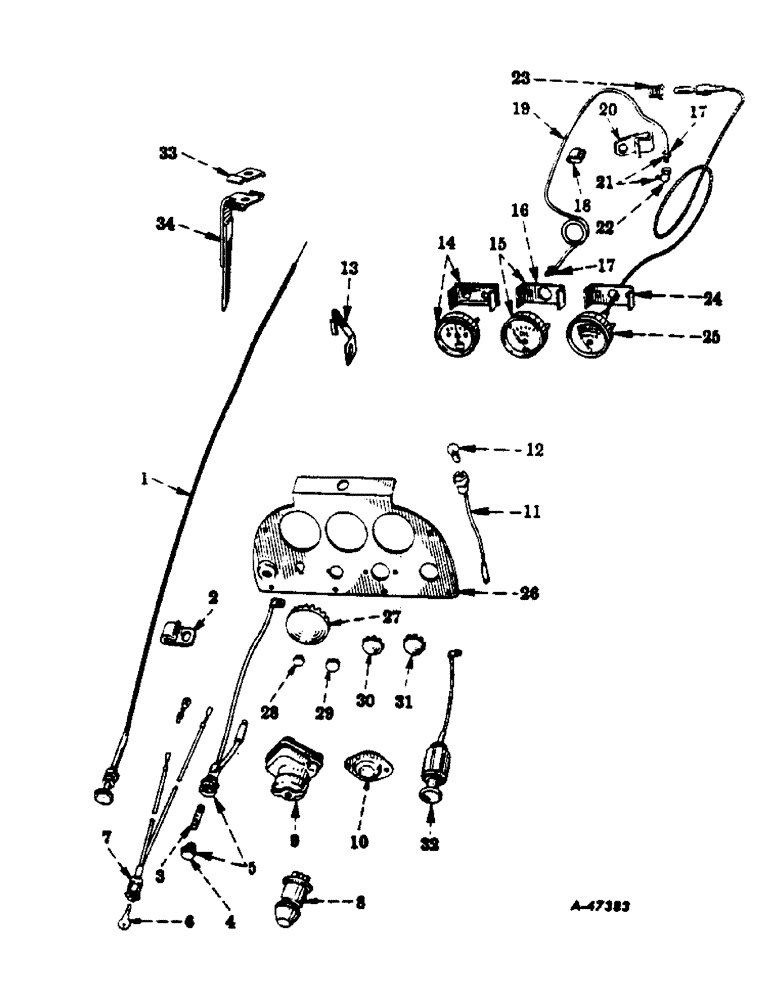

Запчасти Case IH 350 (166) - CHASSIS, ENGINE CONTROLS AND INSTRUMENTS, FOR FARMALL 350 SERIES TRACTORS (12) - CHASSIS

1

363709R93

CABLE

CONTROL, choke, w/nut, plunger, tubing and washer (for carbureted engine tractors)

1шт.

1

366797R92

CABLE

WIRE, shut off control (for diesel engine tractors)

1шт.

2

355097R1

CLIP, rear, choke control (on steering shaft rear bearing support mounting screw), Serial Range: 501-7334

1шт.

2

363812R1

CLIP, rear, choke control (on steering shaft rear bearing support mounting screw), 7335 up

1шт.

3

106653

FUSE

type AGC, 20 amp. (note A)

1шт.

3

455844

FUSE,25 Amp, Type 3AG

type AGN, 25 amp. (note A)

1шт.

3

10815V

FUSE

cartridge type (note A)

1шт.

3

9426333

FUSE,15 Amp, Type 3AG

cartridge type, 15 amp. (note A)

1шт.

4

356445R91

KNOB

fuse holder (note A)

1шт.

5

365515R91

FUSE CARTRIDGE

HOUSING, fuse, w/two cables, knob, 356445R91, nut and washer (note A)

1шт.

6

KEY, ignition lock switch (purchase locally)

1шт.

7

366313R91

SWITCH

ignition lock w/two cables and two keys (for tractors equipped with battery ignition) (note A)

1шт.

365502R1

NUT

ignition lock switch mounting

1шт.

7

367168R91

SWITCH, ignition lock w/two keys, mounting nut, and two terminal screws (not illustrated) (note B)

1шт.

8

SWITCH, heater control, assembly, (special, for diesel engine tractors) (refer to intake manifold air heater unit)

1шт.

9

363130R91

SWITCH

lighting (6 volt), assembly (for components see list of parts under details of "Lighting Switch") (note A)

1шт.

9

363131R91

SWITCH

lighting (12 volt), assembly (for components see list of parts under details of "Lighting Switch") (note A)

1шт.

10

366316R91

SWITCH

push button starting (IH) assembly (for components see list of parts under details of "Push Button Starting Switch") (optional with 366317R91) (note A)

1шт.

10

366317R91

IGNITION SWITCH

SWITCH, push button starting (Indak Mfg. Corp) assembly (optional with 366316R91) (note A) (composed of (2) nut 120611, (2) screw 131958, (2) screw 132903, (1) switch (NSS), (2) washer 120217, (2) washer 121841)

1шт.

11

362001R91

SOCKET

instrument light, w/cable (note A)

1шт.

12

125588

BULB,#55, Type C-2R, 6V

LAMP, no. 55 (6 volt) (note A)

1шт.

12

A14553

BULB

LAMP, no. 57 (12 volt) (note A)

1шт.

13

363364R1

CLIP, front, choke control

1шт.

181354

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

360053R91

INDICATOR

charge, w/clamp, six nuts and six washers (note A)

1шт.

15

362039R93

GAUGE

oil pressure, w/clamp, 60805D, two nuts, 103089 and two washers, 125750 (for carbureted engine tractors)

1шт.

15

362177R93

INDICATOR

GAUGE, oil pressure, w/clamp 60805D, two nuts, 103089 and two washers, 125750 (for diesel engine tractors) (Replaces 362117R93)

1шт.

16

60805D

CLAMP, oil pressure indicator

1шт.

372632A1

SPRING

hex., no. 12-24NC

2шт.

125750

WASHER, lock, external-tooth, no. 12

2шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi-duty tube fitting, brs.,. 1/8" OD tubing

2шт.

18

TAPE, wrap around (use plastic electrical tape)

1шт.

19

363012R11

PIPE, oil pressure indicator, w/two nuts, 36092D (for carbureted engine tractors)

1шт.

19

367251R11

PIPE, oil pressure indicator, w/two nuts, 36092D (not illustrated) (for diesel engine tractors)

1шт.

20

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, heat indicator cable and oil pressure pipe

1шт.

102635

NUT,3/8"-16, G5

(Note C) 3/8"-16, G5

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(Note C) Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note C) 3/8"

1шт.

21

36637DX

CONNECTOR, ELEC

ELBOW, 36637D, w/nut, 36092D

1шт.

22

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

male pipe, hi-duty tube fitting, brs., 90 degrees, 1/8" OD tubing

1шт.

23

51510D

BUSHING

reducing, heat indicator

1шт.

24

50417D

CLAMP, heat indicator

1шт.

103089

hex., no. 12-24NC WASHER, lock, external-tooth, no. 12

2шт.

25

353868R91

INDICATOR

heat, assembly (composed of (1) bushing 51510D, (1) clamp 50417D, (1) indicator (NSS), (2) nut 103089, (2) washer 125750)

1шт.

26

366309R1

PANEL, instrument

1шт.

362720R91

SCREW, instrument panel, w/washer

6шт.

27

432578

PLUG, button, chr-pltd., 2-3/32" (used in charge indicator hole on tractors without starting and lighting system) (note B)

1шт.

28

432466

BEVEL PINION

PLUG, button, chr-pltd., 17/32" (used in fuse housing hole on tractors without starting and lighting system) (note B)

1шт.

29

432600

PLUG, button chr-pltd., 23/32" (used in lighting and starting system) (note B)

1шт.

30

142094

HOLE PLUG BUTTON,1'

PLUG, button, chr-pltd., 1" (used in starting switch hole on tractors without starting and lighting system) (note B)

1шт.

31

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, chr-pltd., (used to plug hole on tractors without cigarette lighter) 29/32"

1шт.

32

361999R91

LIGHTER, cigarette (6 volt) assembly (special) (for components see list of parts under details of "Cigarette Lighter") (note A)

1шт.

32

362000R91

LIGHT

ER, cigarette (12 volt) assembly (special) (for components see list of parts under details of "Cigarette Lighter") (note A)

1шт.

33

32596D

FASTENER

CLAMP, shut off control wire (for diesel engine tractors)

1шт.

120611

NUT,#10 - 32

sq., cd-pltd., no. 10-32NF

1шт.

NLS

NO LONGER SERVICED

machine fil-hd., no. 10-32NF x 5/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

34

367248R11

BRACKET, shut off control wire (for diesel engine tractors)

1шт.
