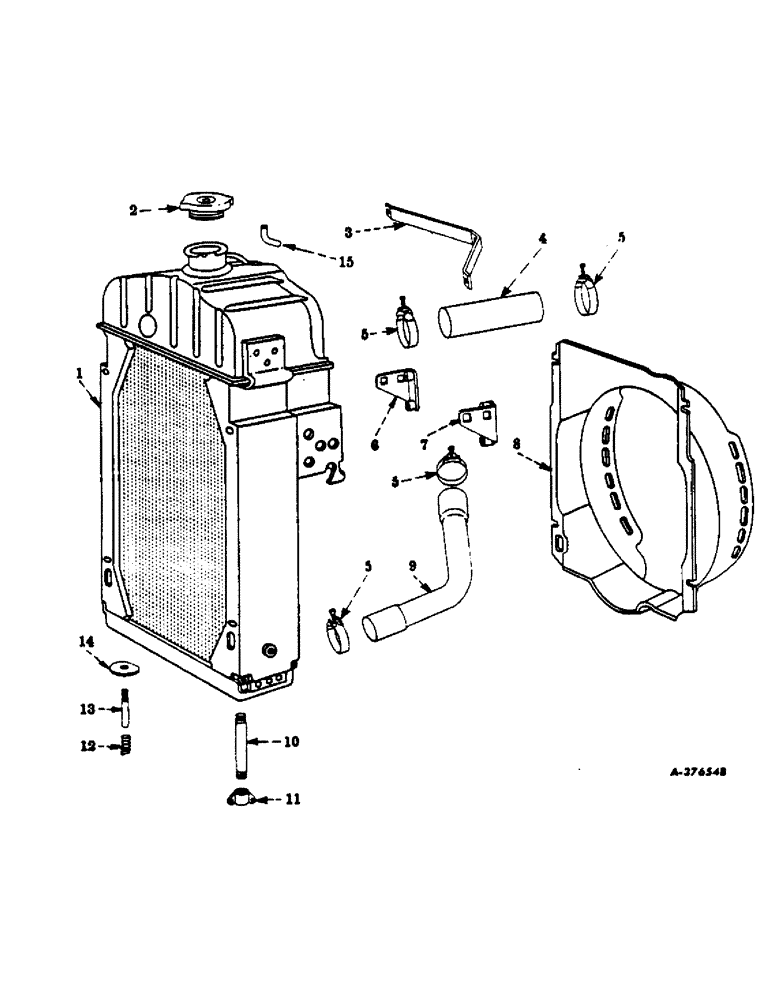

Запчасти Case IH 350 (160) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS

1

361704R93

RADIATOR, assembly (composed of (1) cap 361705R91, (1) radiator 361703R93 (NSS), (2) screw 362664R91, (2) stud 357890R2)

1шт.

2

361705R91

COVER

CAP, radiator filler (will work for 362323R91)

1шт.

3

362832R1

BRACE, radiator

1шт.

109084

NUT,1/4"-20, G5

2шт.

451062

NUT, lock, hex., 3/8-24NF

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

51538D

STUD, radiator brace (illustrated with "water pump")

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

361707R1

HOSE, radiator inlet, 1-3/4" I.D. x 6-1/2" long x 3 ply

1шт.

5

357870R91

CLAMP

hose (strap-type), w/clip and screw (range, 3/4 to 4" OD hose)

4шт.

6

361710R21

BRACKET, hood and grille anchor, R.H., w/two nut 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

362662R91

NUT

speed grip, side hood fastener screw (note A)

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, side hood fastener screw (note B)

2шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

361709R21

BRACKET, hood and grille anchor, L.H., w/two nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

362662R91

NUT

speed grip, side hood fastener screw (note A)

2шт.

363865R91

NUT, floating cage, side hood fastener screw (note B)

2шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

362830R11

HOUSING, fan, w/extension

1шт.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

machine, 1/4-20NC x 4-3/4"

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

362833R1

RADIATOR HOSE,1.50" ID x 9.25", SAE 20R4, SAE 20R2, CLASS R, GRADE 1

Outlet (for carbureted engine tractors) 1.50" ID x 9.25", SAE 20R4, SAE 20R2, CLASS R, GRADE 1

1шт.

9

366690R1

RADIATOR HOSE,1.50" ID x 7.44", SAE 20R4, Class R, Grade 1

Outlet (Not illustrated) (For diesel engine tractors) 1.50" ID x 7.44", SAE 20R4, Class R, Grade 1

1шт.

10

219326

LUBE NIPPLE,Nipple, 3/8" NPT x 5"

NIPPLE, pipe, 3/8 x 5" (radiator drain)

1шт.

11

13047DA

PLUG

CAP, radiator drain pipe

1шт.

12

67205D

SPRING

radiator hold-down

2шт.

13

357890R2

STUD

radiator mounting

2шт.

14

18464DA

GASKET

PAD, radiator

2шт.

17081R1

NUT

lock, hex., cd-pltd., 7/16-20NF

2шт.

Q1515

WASHER

plain, 1/2" I.D. x 7/8" O.D. x no. 14 ga

4шт.

15

274141R1

HOSE, overflow pipe connecting (used on radiators with two-piece overflow pipes)

1шт.
