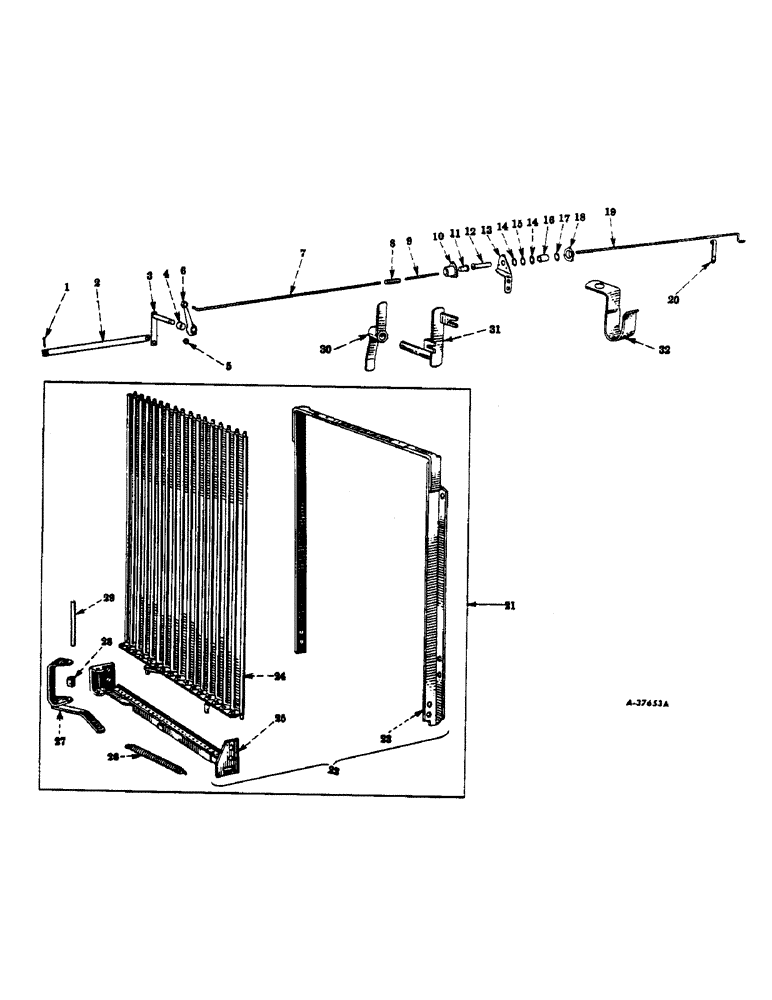

Запчасти Case IH 350 (158) - CHASSIS, RADIATOR SHUTTER AND CONTROLS, FOR TRACTORS EQUIPPED WITH RADIATOR SHUTTER (12) - CHASSIS

1

53055D

CLEVIS PIN,1/4" x 1"

PIN, radiator shutter control link, front

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x no. 16 ga

1шт.

2

363615R1

LINK, radiator shutter control, front (for carbureted engine tractors)

1шт.

2

368454R1

LINK, radiator shutter control, front (for diesel engine tractors)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

W6185

PIN, std-hd., dld., 5/16 x 9/16"

1шт.

3

363616R91

ARM, radiator shutter control bellcrank, w/shaft

1шт.

4

55754D

SPACER,1/2" X-Strng Pipe x 5/8"

radiator shutter bellcrank arm

1шт.

5

48869D

KEY, radiator shutter control bellcrank arm

1шт.

6

8934D

ARM, radiator shutter control bellcrank

1шт.

109084

NUT,1/4"-20, G5

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

363619R1

ROD, radiator shutter control rod, front (for carbureted engine tractors)

1шт.

7

368459R1

ROD, radiator shutter control rod, front

1шт.

17265R1

JAM NUT

jam, hex., 5/16-18NC (L.H. thd)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

8

69579DA

COUPLING, radiator shutter control rod

1шт.

9

363618R1

ROD, radiator shutter control, center (for carbureted engine tractors)

1шт.

9

368457R1

ROD, radiator shutter control, center (for diesel engine tractors)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

363391R2

RETAINER, radiator shutter control rod front sleeve

1шт.

11

363390R1

SLEEVE, front, radiator shutter control rod

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

1шт.

12

363385R1

SLEEVE, rear, radiator shutter control rod

1шт.

13

363684R1

BRACKET, radiator shutter control

1шт.

103026

NUT,3/8"-24, G5

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

363402R1

WASHER, thrust, radiator shutter control

2шт.

15

363386R91

RETAINER, w/balls (optional with 364378R91)

1шт.

15

364378R91

RETAINER, w/balls (optional with 363386R91)

1шт.

16

363387R1

SLEEVE, outer, radiator shutter control

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

17

363388R1

WASHER, felt, radiator shutter control

1шт.

18

363389R2

RETAINER, radiator shutter control felt washer

1шт.

103088

NUT,#10-32

hex., no. 10-32NF

3шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

machine, rd-hd., no. 10-32NF x 1/2"

3шт.

118873

WASHER, lock, light, no. 10

3шт.

19

363682R1

ROD, radiator shutter control rear

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

1шт.

20

363683R1

SUPPORT, radiator shutter control rod rear (for carbureted engine tractors)

1шт.

20

368458R1

SUPPORT, radiator shutter control rod rear (for diesel engine tractors)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no 16 ga

1шт.

21

48820DA

SHUTTER, radiator, assembly

1шт.

22

51622D

UNIT, shutter, assembly (composed of (1) frame 51623DA, (4) nut 109084, (4) scre 114337, (1) shutter 51621D, (1) tie bar 51618D, (4) washer 103319)

1шт.

23

51623DA

FRAME, and bearing bar

1шт.

24

51621D

SHUTTERS, w/operating bar

1шт.

25

51618D

TIE BAR, bottom, and bearing bar

1шт.

109084

NUT,1/4"-20, G5

4шт.

114337

SCREW, machine, slotted-rd-hd., 1/4-20NC x 1/2"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

37730D

SPRING, bellcrank and operating link

1шт.

27

51620D

BELLCRANK, w/link

1шт.

28

55328D

SPACER, bellcrank pin

1шт.

29

51619D

PIN, bellcrank

1шт.

112526

PIN, cotter, 1/16 x 3/8"

2шт.

30

368455R91

BELLCRANK, radiator shutter control (for diesel engine tractors)

1шт.

106630

FITTING

PIN, cotter, 1/8 x 7/8"

1шт.

350515R1

WASHER

plain, 21/32" ID x 1" OD x 16 ga

2шт.

31

368199R91

SUPPORT, bellcrank (for diesel engine tractors)

1шт.

32

368460R1

CLIP, fuel filter hose support (for diesel engine tractors)

1шт.
