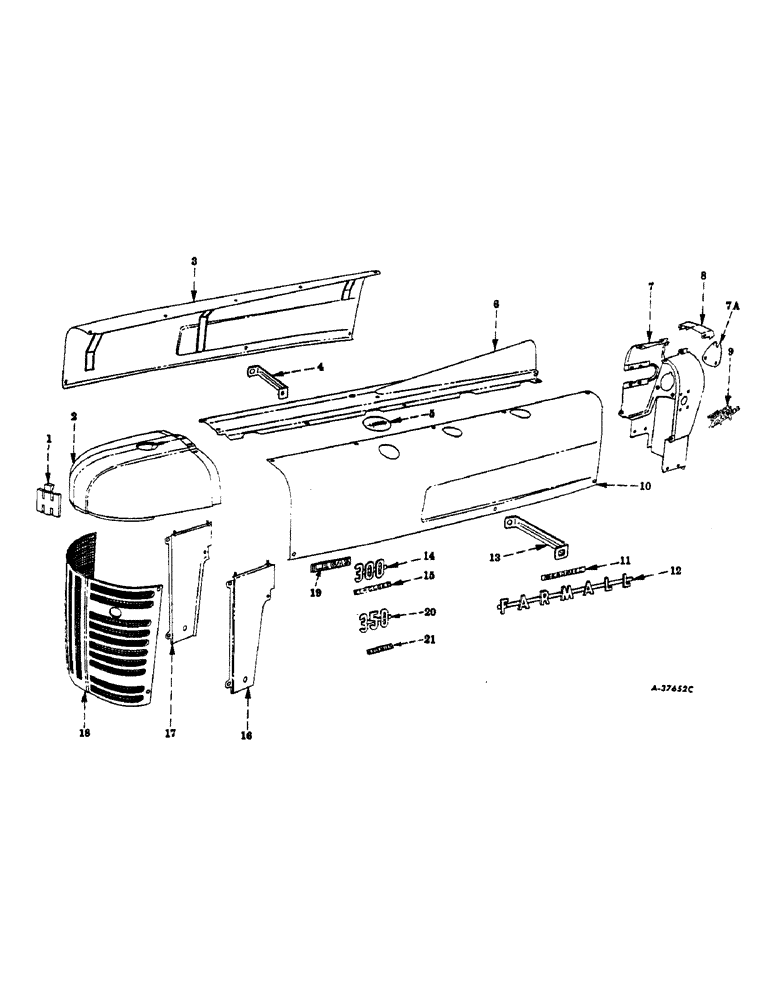

Запчасти Case IH 350 (154) - CHASSIS, HOOD AND RADIATOR GRILLE (12) - CHASSIS

1

362397R2

PRODUCT GRAPHIC

EMBLEM, hood "IH" (optional with 365371R1)

1шт.

1

365371R1

EMBLEM, hood "IH" (optional with 362397R2)

1шт.

363284R2

CLIP

FASTENER, tabular clip (will work for 362309R1)

2шт.

2

361499R31

HOOD, front, w/four nut, 363885R91

1шт.

362594R91

NUT

speed grip, side hood fastener screw (note A)

4шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16-18 (note B)

4шт.

3

362574R21

HOOD, RH side, w/brackets (for all gasoline burning engine tractors except hi-clear models)

1шт.

3

362575R91

HOOD, RH side, w/brackets (for hi-clear-gasoline burning engine)

1шт.

3

363096R21

HOOD, RH side, w/brackets (for all distillate or kerosene burning engine tractors except hi-clear models)

1шт.

3

363097R91

HOOD, RH side, w/brackets (for hi-clear-distillate or kerosene burning engine)

1шт.

3

364055R11

HOOD, RH side, w/brackets (for all tractors with liquefied petroleum gas burning engine except hi-clear models) (not illustrated)

1шт.

3

364056R11

HOOD, RH side, w/brackets (for 300 hi-clear tractors with liquefied petroleum gas burning engine) (not illustrated)

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, side hood fastener, w/washer (5/16-24NF thread) (note A)

7шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

side hood fastener, w/washer (5/16-18NC thread) (note B)

7шт.

3

366707R11

HOOD, RH side w/brackets (not illustrated) (for diesel burning engine tractors - except hi-clear models)

1шт.

3

366708R91

HOOD, RH side w/brackets (not illustrated (for hi-clear diesel burning engine tractors)

1шт.

4

361540R21

BRACKET, hood sheet support, RH, w/nut, 363885R91

1шт.

362662R91

NUT

speed grip, side hood fastener screw (note A)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage (5/16NC-18) (note B)

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

656830R92

COVER, exhaust pipe opening, w/clip and two rivets (used on tractors equipped with cotton picker type spark arrester or orchard type exhaust)

1шт.

6

361538R21

CHANNEL, hood center, w/four nuts, 363885R91 (for tractors without liquefied petroleum gas burning engine)

1шт.

6

364059R21

CHANNEL, hood center, w/four nuts, 363885R91 (not illustrated) (for tractors with liquefied petroleum gas burning engine)

1шт.

6

364062R2

CHANNEL, hood center (rear) (not illustrated) (for tractors with liquefied petroleum gas burning engine)

1шт.

362663R91

NUT

side hood fastener screw (note A)

4шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, (5/16NC-18) (note B)

4шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, hood center channel fastener (NF thd.-5/8" long), w/ washer (note A)

2шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

hood center channel fastener (NC thd.) w/washer (note B)

2шт.

363509R91

SCREW, hood center channel fastener (NF thd.-1" long), w/washer (note A)

2шт.

364495R91

SCREW

hood center channel fastener (NC thd.-1" long), w/washer (note B)

2шт.

7

361547R11

SHROUD, instrument panel and reservior, w/four nut, 362594R91 and plug, 432582 (will work for 362876R92) (order 364413R93), Farmall 300 series, Serial Range: 501-19054

1шт.

362594R91

NUT

speed grip, side hood and housing channel fastener screw

4шт.

432582

PLUG, button, 2-1/4" (hydra-touch control valve lever opening plug) (not used on tractors equipped with hydra-touch system)

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

instrument panel and reservior shroud, w/washer (5/16-18NC thread) (note B) (3 used on tractors equipped with radiator shutter)

4шт.

7

361547R24

SHROUD, instrument panel and reservior, w/four nut, 363885R91, and plug, 365451R1 and plug, 432582 (for carbureted engine tractors), Farmall 300 series, 19055 up, Farmall 350 series, 501 up

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16NC-18 (note B)

4шт.

187309

PLUG, instrument panel and reservior housing

1шт.

7

367103R91

SHROUD, instrument panel and reservior, w/four nuts, 363885R91 and plug, 142020, plug, 187309, and plug 432582 (for diesel burning engine tractors)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16NC-18

4шт.

142020

PLUG, button (for air heater control switch hole)

1шт.

187309

PLUG, instrument panel and reservior housing (for hydra-touch valve indexing bushing hole)

1шт.

432582

PLUG, button, 2-1/4" (hydra-touch control valve lever opening plug) (not used on tractors equipped with hydra-touch system)

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

instrument panel and reservior shroud, w/washer (5/16-18NC)

4шт.

7a

364412R1

COVER, tachometer opening (for tractors w/o tachometer), Farmall 300 series 19055 up Farmall 350 series, 501 up

1шт.

362720R91

SCREW, mach., rd-hd., cross-recess, w/internal tooth lock washer (no. 10-24 x 1/2")

2шт.

8

361548R1

CHANNEL, instrument panel housing

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

instrument panel housing fastener screw, w/washer (5-16-18NC thread) (note B)

2шт.

9

362394R1

PLATE, name. "Torque Amplifier" (for tractors equipped with torque amplifier

2шт.

363784R1

FASTENER

tabular clip (will work for 362309R1)

4шт.

10

362572R21

HOOD, LH side, w/brackets and shield (for all tractors without liquefied petroleum gas burning engine except hi-clear models)

1шт.

10

362573R91

HOOD, LH side, w/brackets and shield (for hi-clear tractors without liquefied petroleum gas burning engine)

1шт.

10

364053R11

HOOD, LH side, w/brackets and shield (for all tractors with liquefied petroleum gas burning engine except hi-clear models) (not illustrated)

1шт.

10

364054R11

HOOD, LH side, w/brackets and shield (for hi-clear tractors with liquefied petroleum gas burning engine) (not illustrated)

1шт.

10

366704R11

HOOD, LH side, w/brackets and shield (for diesel burning engine tractors except hi-clear models) (not illustrated)

1шт.

10

366705R91

HOOD, LH side, w/brackets and shield (for hi-clear diesel burning engine tractors) (not illustrated)

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, side hood fastener, w/washer (5/16-24NF thread) (note A)

7шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

side hood fastener, w/washer (5/16-18NC thread) (note B)

7шт.

11

362317R1

PLATE, name, "McCormick" (Farmall 300 series)

2шт.

11

366685R1

PRODUCT GRAPHIC

PLATE, name, "McCormick" (Farmall 350 series)

2шт.

363784R1

FASTENER

tabular clip (will work for 362309R1)

6шт.

12

362315R2

PRODUCT GRAPHIC

"Farmall" Decal

2шт.

363784R1

FASTENER

tubular clip (will work for 362309R1) (8 used with 362315R1) (plate)

14шт.

13

361539R21

BRACKET, hood sheet support, LH, w/nut, 363885R91

1шт.

362662R91

NUT

side hood fastener screw (note A)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage (5/16NC-18) (note B)

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

362396R1

PLATE, number, "300" (Farmall 300 series)

2шт.

363784R1

FASTENER

tubular clip (will work for 362309R1)

4шт.

15

362357R1

PLATE, name, "Hi-Clear" (for high clearance tractors)

2шт.

363784R1

FASTENER

tubular clip (will work for 362885R1)

4шт.

16

361545R21

SHEET, side, radiator grille, LH, w/two nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

362594R91

NUT

speed grip, radiator grille fastener screw (note A)

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage (5/16-18) (note B)

2шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, radiator grille side fastener, w/washer (5/16-24NF thread) (note A)

2шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

radiator grille side sheet fastener, w/washer (5/16-18NC thread) (note B)

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

361546R21

SHEET, side, radiator grille, RH, w/two nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

362594R91

NUT

speed grip, radiator grille fastener screw (note A)

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage (5/16-18) (note B)

2шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, radiator grille side sheet fastener, w/washer (5/16-24NF thread) (note A)

2шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

radiator grille side sheet fastener, w/washer (5/16-16NC thread) (note B)

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

361541R12

GRILLE, radiator

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, radiator grille fastener, w/washer (note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

radiator grille fastener, w/washer (note B)

4шт.

19

363708R1

PLATE, name, "L.P. Gas" (for tractors equipped with liquefied petroleum gas burning engine)

2шт.

363784R1

FASTENER

tubular clip (will work for 362309R1)

4шт.

20

366679R1

PLATE, number, "350" (Farmall 350 series)

2шт.

363784R1

FASTENER

tubular clip

4шт.

21

362319R1

PLATE, name, "Diesel"

2шт.

363784R1

FASTENER

tubular clip

4шт.

364413R93

PACKAGE, service, shroud, instrument panel and reservoir (consists of shroud, 361547R24, and cover, 364412R1 and two screws, 362720R91), Farmall 300 series, Serial Range: 501-19054

1шт.
