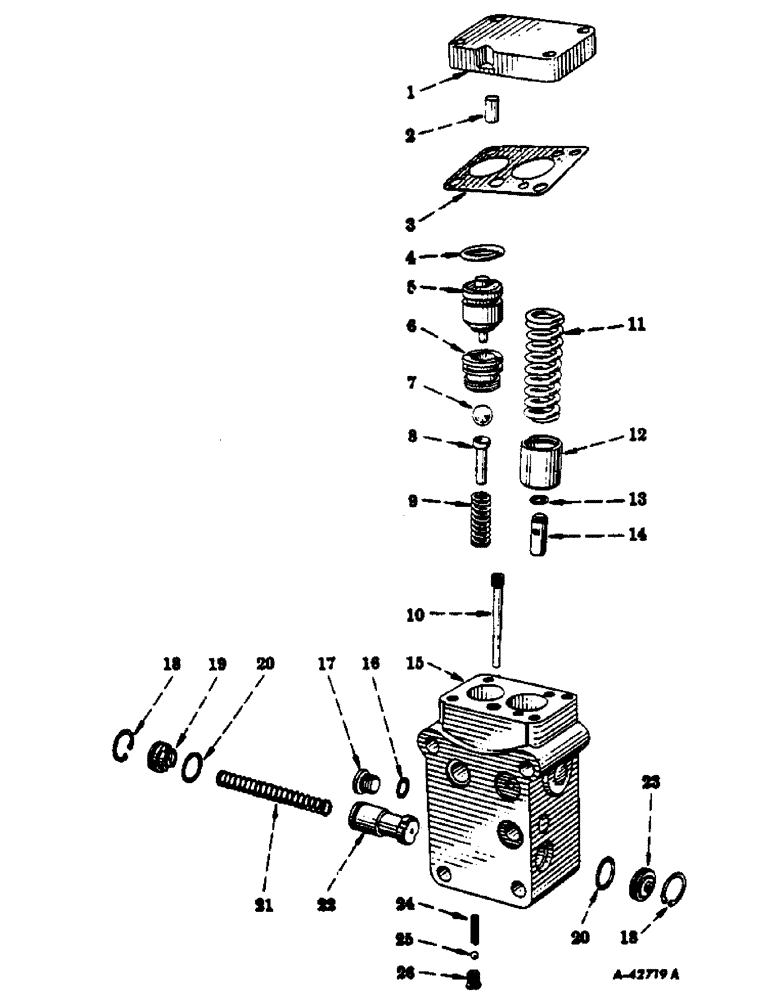

Запчасти Case IH 350 (291) - HYDRAULIC SYSTEM, REGULATOR, SAFETY AND FLOW CONTROL VALVE (07) - HYDRAULIC SYSTEM

364841R93

VALVE, regulator, safety, and flow control, assembly

1шт.

1

366666R91

PACKAGE, service, regulator, safety, and flow control valve housing cover (used w/housing, 364844R1 (NSS) (see note) (composed of (1) cover 360629R21, (1) gasket 360630R1, (1) piston 366638R91, (1) seal 352024R2, (1) seat 366665R1)

1шт.

1

360629R21

COVER

regulator, safety, and flow control valve housing (used w/housing, 364844R2 (NSS) (see note)

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

141239

AXLE PIN,3/8" x 11/16"

PIN, dowel, 3/8 x 11/16" (used w/housing, 364844R1 (NSS) (see note)

1шт.

3

360630R1

GASKET

regulator, safety, and flow control valve housing cover

1шт.

4

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING, seal, regulator valve piston (will work for 352024R2)

1шт.

5

352940R21

PISTON ASSY.

PISTON, regulator valve, w/retainer, rod and spring (used with housing, 364844R1 (NSS) (see note) (order package, 366650R91)

1шт.

5

366638R91

PISTON

regulator valve, w/retainer, rod and spring (used w/housing, 364844R2 (NSS) (see note)

1шт.

6

360628R1

SEAT

regulator valve (used w/housing, 364844R1 (NSS) (see note) (order package, 366650R91)

1шт.

6

366665R1

FITTING

SEAT, regulator valve (used w/housing, 364844R2 (NSS) (see note)

1шт.

7

17018R1

BALL,9/16" Dia

1шт.

8

350084R2

SEAT

RIDER, regulator valve ball

1шт.

9

352026R2

SPRING

regulator valve ball rider

1шт.

10

353853R41

ORIFICE

PLUG AND SCREEN, safety valve orifice (optional with 355372R93)

1шт.

10

355372R93

VENT

PLUG AND SCREEN, safety valve orifice (optional with 353853R41)

1шт.

11

360626R2

SPRING

safety valve

1шт.

12

360627R1

VALVE

RETAINER, safety valve spring

1шт.

13

354854R2

RING

snap, safety valve piston

1шт.

14

361023R1

PISTON

safety valve

1шт.

15

364842R93

1шт.

HOUSING, regulator, safety, and flow control valve, assembly (when replacing housing, 364844R1 (NSS) (see note) (package, 366650R91, should also be ordered), Farmall 350 series, 1778 up (composed of (1) housing 364844R21 (NSS), (1) plug 360623R1 (NSS), (2) plug 361445R1 (NSS), (1) plug 364845R1, (1) ring 364839R1, (1) valve 367832R1 (NSS)

1шт.

15

367974R91

PACKAGE, service regulator, safety, and flow control valve housing, 364842R93, and spring, 367833R1, Farmall 300 series, Farmall 350 series, 501 to 1777, Farmall 350 series, 1778 up

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, regulator, safety and flow control valve housing plug

1шт.

17

364845R1

PLUG, regulator, safety and flow control valve housing

1шт.

18

364838R1

SNAP RING,0.938", Int, #93

Ring, Snap, , flow control valve 0.938", Int, #93

2шт.

19

364848R11

RETAINER

w/pin, flow control valve spring

1шт.

20

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

RING, seal, flow control valve spring retainer

2шт.

21

364847R1

SPRING

flow control valve, Farmall 300 series, Farmall 350 series, Serial Range: 501-1777

1шт.

21

367833R1

SPRING

flow control valve, Farmall 350 series, 1778 up

1шт.

22

377204R1

VALVE

flow control (NSS) (order housing, assembly) (Replaces DASHPART)

1шт.

23

364846R1

RETAINER

flow control valve

1шт.

24

365348R1

SPRING

auxiliary, safety valve

1шт.

25

16006R1

BALL

chrome steel, grade 2, 3/16" dia.

1шт.

26

365347R1

SEAL, auxiliary, safety, valve

1шт.

366650R91

PACKAGE

service, regulator valve piston (will work for piston, 352940R21, and seat, 360628R1) (composed of (1) gasket 360630R1, (1) piston 366638R91, (1) seal 352042R2, (1) seat 366665R1

1шт.
