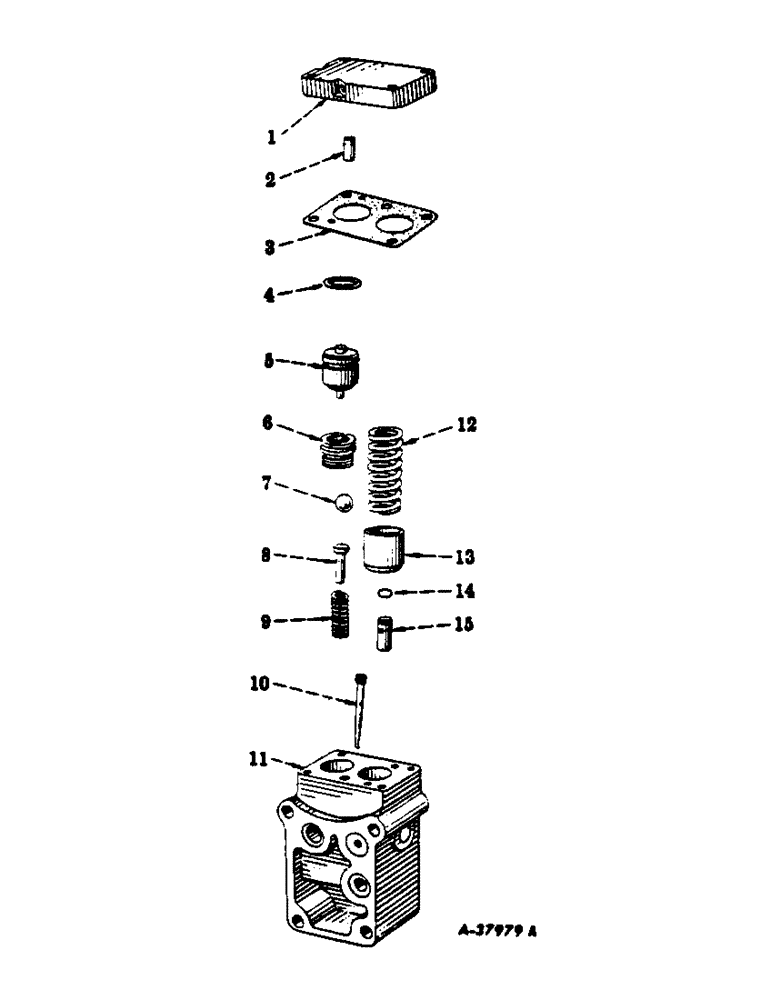

Запчасти Case IH 350 (289) - HYDRAULIC SYSTEM, REGULATOR & SAFETY VALVE (07) - HYDRAULIC SYSTEM

360621R92

VALVE

regulator and safety, assembly

1шт.

1

366666R91

PACKAGE, service, regulator & safety valve housing cover, complete (used w/housing, 360622R1 (NSS) (see note) (composed of (1) cover 360629R21, (1) gasket 360630R1, (1) piston 366638R91, (1) seal 352024R2, (1) seat 366665R1)

1шт.

1

360629R21

COVER

regulator and safety valve housing (used w/housing, 360622R2 (NSS) (see note)

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

141239

AXLE PIN,3/8" x 11/16"

PIN, dowel, 3/8 x 11/16" (used w/housing, 360622R1 (NSS) (see note)

1шт.

3

360630R1

GASKET

regulator and safety valve housing

1шт.

4

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING, seal, regulator valve piston (will work for 352024R2)

1шт.

5

352940R21

PISTON ASSY.

PISTON, regulator valve, w/retainer, rod and spring (used w/housing, 360622R1 (NSS) (see note) (order, package 366650R91)

1шт.

5

366638R91

PISTON

regulator valve, w/retainer, rod and spring (used w/housig, 360622R2 (NSS) (see note)

1шт.

6

360628R1

SEAT

regulator valve (used w/housing, 360622R1 (NSS) (see note) (order package, 366650R91)

1шт.

6

366665R1

FITTING

SEAT, regulator valve (used w/housing, 360622R2 (NSS)

1шт.

7

17018R1

BALL,9/16" Dia

1шт.

8

350084R2

SEAT

RIDER, regulator valve ball

1шт.

9

352026R2

SPRING

regulator valve ball rider

1шт.

10

353853R41

ORIFICE

PLUG AND SCREEN, safety valve orifice (optional with 355372R93)

1шт.

10

355372R93

VENT

PLUG AND SCREEN, safety valve orifice (optional with 353853R41)

1шт.

11

360622R21

HOUSING, regulator and safety valve, w/two plugs and plug, 362392R2 (when replacing housing, 360622R1 (NSS) (see note) (package, 366650R91, should also be ordered)

1шт.

362392R1

PLUG, regulator and safety valve housing (optional with 365857R1)

1шт.

365857R1

PLUG

regulator and safety valve housing (optional with 362392R1)

1шт.

12

360626R2

SPRING

safety valve

1шт.

13

360627R1

VALVE

RETAINER, safety valve spring

1шт.

14

354854R2

RING

snap, safety valve piston

1шт.

15

361023R1

PISTON

safety valve

1шт.

366650R91

PACKAGE

service, regulator valve piston (see note) (will work for piston, 352940R21, and seat, 360628R1) (composed of (1) gasket 360630R1, (1) piston 366638R91, (1) seal 352042R2, (1) seat 366665R1)

1шт.
