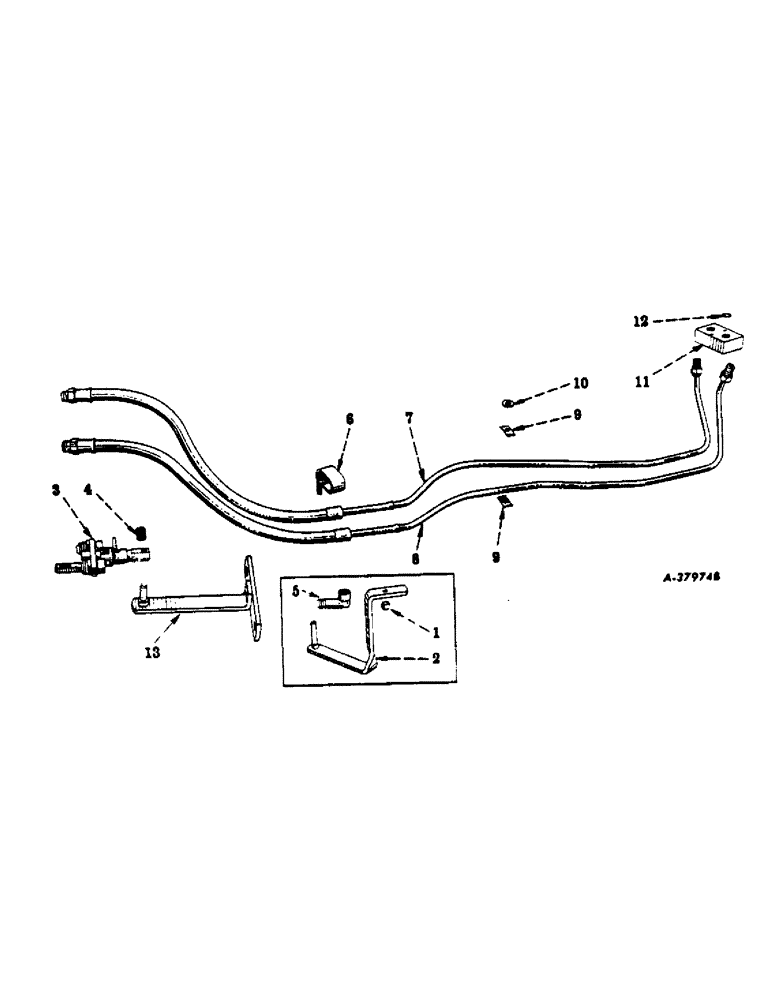

Запчасти Case IH 350 (275) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, REMOTE CONTROL ADAPTER (07) - HYDRAULIC SYSTEM

363804R92

PACKAGE, remote control break-away adapter (attaches to right front junction block) (for tractors equipped with hydra-touch system (double or triple valve) (this may be ordered as a complete package or may be assembled from parts stock)

1шт.

1

353212R1

SPACER, break-away coupling bracket (Farmall 300 series)

1шт.

2

363359R21

BRACKET, break-away coupling, w/pin (Farmall 300 series)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

(Used with rear frames, 360553R1 or R2 (NSS), Farmall 300 series, 501 to 9312 Hex, 7/16"-14 x 4", G5

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 4" (used with rear frames, 360553R3 (NSS), Farmall 300 series, 9313 up, Farmall 350 series, 501 up

1шт.

3

364311R91

COUPLING, front section, hydraulic break-away, assembly (for components see list of parts under detail of "Break-away and Self-sealing Couplings") (will work for 353215R91)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" ID x 1-1/16" OD x no 13 ga

1шт.

19849H

WASHER, plain, 33/64" ID x 1-3/8" OD x no 11 ga

2шт.

4

353213R2

SPRING

break-away coupling bracket

1шт.

5

363628R1

ELBOW, street, break-away coupling (Farmall 300 series)

2шт.

6

363721R1

BRACKET, rear, remote control adapter tube support

1шт.

7

363718R91

TUBE, w/hose, inner, remote control adapter

1шт.

8

363717R91

TUBE, w/hose, outer, remote control adapter

1шт.

9

363720R1

BRACKET, front, remote control adapter tube support

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

22828D

SPACER, remote control adapter tube support bracket front

1шт.

11

363719R1

BLOCK, junction, remote control

1шт.

103026

NUT,3/8"-24, G5

(see note) 3/8"-24, G5

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

4шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

181385

BOLT,Hex, 3/8" - 24 x 3", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3"

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8" (see note)

2шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, remote control junction block

2шт.

13

368188R11

BRACKET, break-away coupling, w/pin (Farmall 350 series)

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/8 x 11NC x 1-3/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
