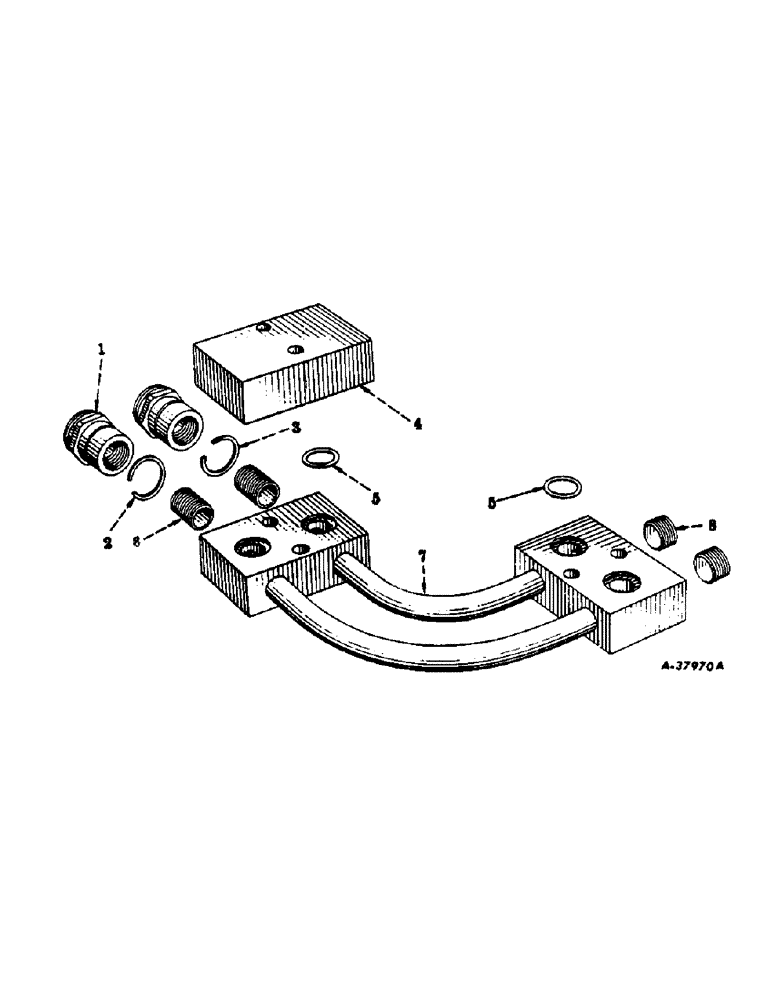

Запчасти Case IH 350 (273) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, AUXILIARY JUNCTION BLOCK (07) - HYDRAULIC SYSTEM

363802R91

PACKAGE, auxiliary junction block (for tractors equipped with hydra-touch system, double or triple valve) (this may be ordered as a complete package or assembled from parts stock)

1шт.

1

353217R92

COUPLING

male, self-sealing, assembly (for components see list of parts under detail of "Break-away and Self-sealing Coupling")

2шт.

2

363463R1

RING, snap, self-sealing male coupling (black) (not serviced)

1шт.

3

108493R1

RING, snap, self-sealing male coupling (white) (not serviced)

1шт.

4

363722R1

SPACER, auxiliary junction block

1шт.

5

363264R1

SEAL

RING, seal, auxiliary junction block

4шт.

6

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, pipe, close, 1/2 x 1-1/2"

2шт.

7

363120R91

BLOCK, auxiliary junction, w/tubes

1шт.

103026

NUT,3/8"-24, G5

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

4шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

181385

BOLT,Hex, 3/8" - 24 x 3", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

2шт.

8

362356R3

PLUG, auxiliary junction block (will work for 444703) (optional with 365241R1)

2шт.

8

365241R1

PLUG, auxiliary junction block (optional with 362356R3)

2шт.
