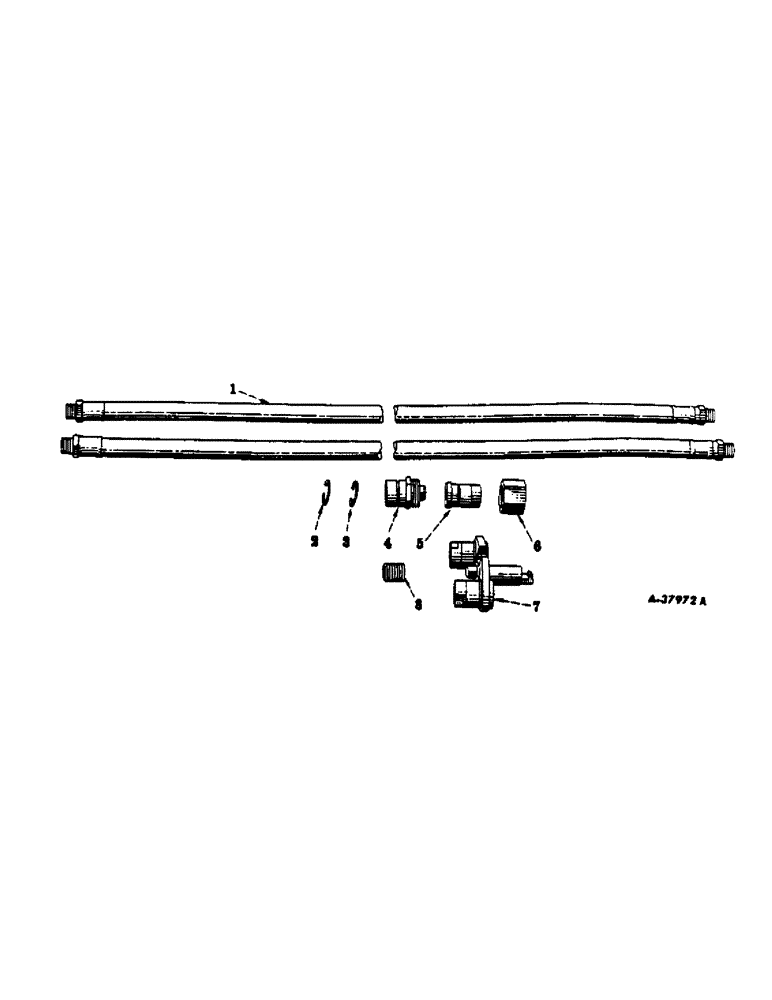

Запчасти Case IH 350 (272) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, HOSE EXTENSION PARTS (07) - HYDRAULIC SYSTEM

1

357961R91

HOSE

hydraulic cylinder, 1/2" ID x 60" (A only)

2шт.

1

363133R91

HOSE, hydraulic cylinder, 1/2" ID x 66" (C only)

2шт.

1

357962R91

HOSE

hydraulic cylinder, 1/2" ID x 96" (B only)

2шт.

2

363463R1

RING, snap, self-sealing male coupling (black) (no longer supplied for service) (A and B only)

2шт.

(C only)

1шт.

3

108493R1

RING, snap, self-sealing male coupling (white) (no longer supplied for service) (A and B only)

2шт.

(C only)

1шт.

4

353217R92

COUPLING

male, hydraulic self-sealing, assembly (for components see list of parts under detail of "Break-away and Self-sealing Coupling") (A and B only)

4шт.

(C only)

2шт.

5

353218R91

COUPLING

female, hydraulic self-sealing, assembly (for components see list of parts under detail of "Break-away and Self-sealing Coupling") (A and B only)

4шт.

6

357965R2

NUT

union, self-sealing coupling (white) (will work for 363462R1) (A and B only)

4шт.

7

353216R91

COUPLING

rear section, hydraulic break-away assembly (for components see list of parts under detail of "Break-away and Self-sealing coupling") (C only)

1шт.

8

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, pipe, close, 1/2 x 1-1/2" (A and B only)

2шт.
