Запчасти Case IH 350 (270) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, HYDRAULIC CYLINDER & PARTS & FAST-HITCH EQUIPMENT (07) - HYDRAULIC SYSTEM

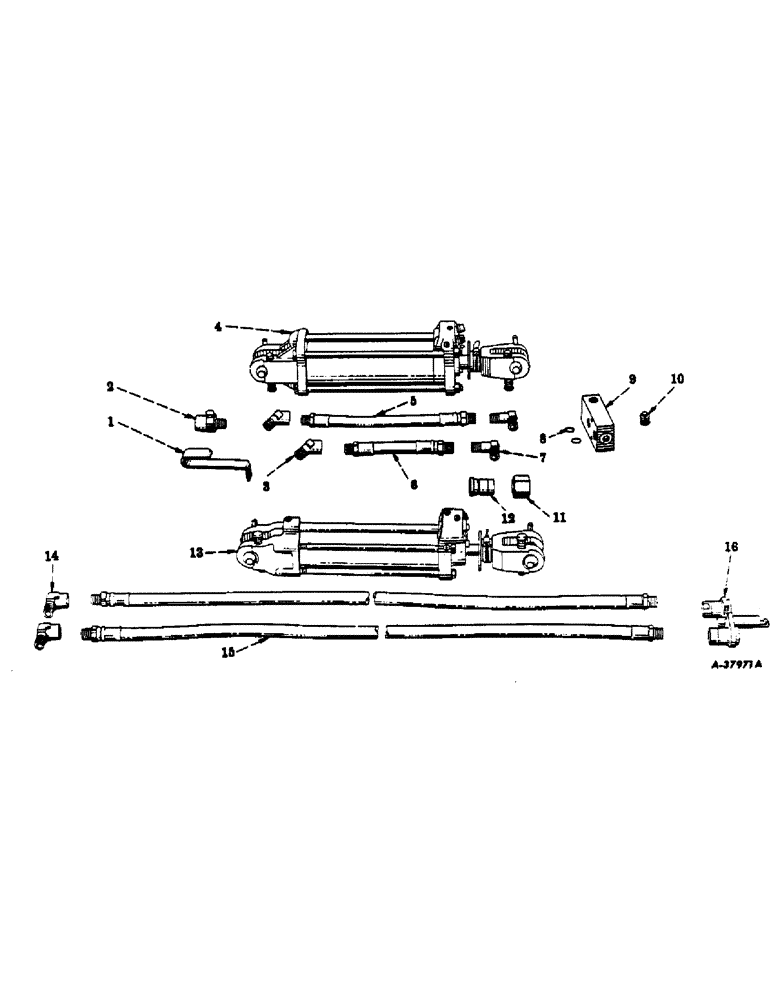

Схема запчастей Case IH 350 - (270) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, HYDRAULIC CYLINDER & PARTS & FAST-HITCH EQUIPMENT (07) - HYDRAULIC SYSTEM
11
1
6
15
16
5
4
9
8
3
13
14
7
12
10
2

Артикул

Название

Примечание

Количество

1

362922R1

BRACKET, hose support (D only)

1шт.

2

362904R91

VALVE, adjustable drop retarding, assembly (for components see list of parts under detail of "adjustable drop retarding valve") (D only)

1шт.

3

444496

ELBOW, street, automotive pipe, 45 degrees, brs., 1/2" (D only)

2шт.

4

360997R91

CYLINDER, hydraulic (3-1/2 x 8") assembly (for components see list of parts under detail of "hydraulic cylinders") (A, C, and D only)

1шт.

5

363632R91

HOSE

check valve to cylinder, 1/2" ID x 13-3/4" (D only)

1шт.

6

363633R91

HOSE

rear junction block to cylinder, 1/2" ID x 9" (D only)

1шт.

7

362916R1

ELBOW, male, fast-hitch cylinder hose (D only)

2шт.

8

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve (D only)

2шт.

9

362705R91

VALVE

check, assembly (for components see list of parts under detail of "check vavle") (D only)

1шт.

187227

SCREW, cap, hex-hd., 3/8-24NF x 3-1/8" (D only)

2шт.

10

143981

PLUG

pipe, sq-hd., cd-pltd., stl., 1/2" (D only)

1шт.

11

357965R2

NUT

union, self-sealing coupling (white (A and B only)

1шт.

(D only)

2шт.

12

353218R91

COUPLING

female, hydraulic self-sealing, assembly (for components see list of parts under detail of "Break-away and Self-Sealing Coupling") (A and B only)

2шт.

(D only)

4шт.

13

360994R91

CYLINDER

hydraulic (2-1/2 x 8") assembly (for components see list of parts under detail of "Hydraulic Cylinders") (B and D only)

1шт.

14

364148R1

ELBOW

street, cylinder hose (1/2" x 90 degrees) (will work for 444484) (D only)

2шт.

15

355565R92

HOSE

hydraulic cylinder, 1/2" ID x 40-1/2" (A, B, and D only)

2шт.

15

362784R91

HOSE

hydraulic cylinder, 1/2" ID x 112" (C only)

2шт.

16

353216R91

COUPLING

break-away rear section, assembly (for components see list of parts under detail of "Break-away and Self-sealing Coupling") (C only)

1шт.

Выбрано товаров: 20
