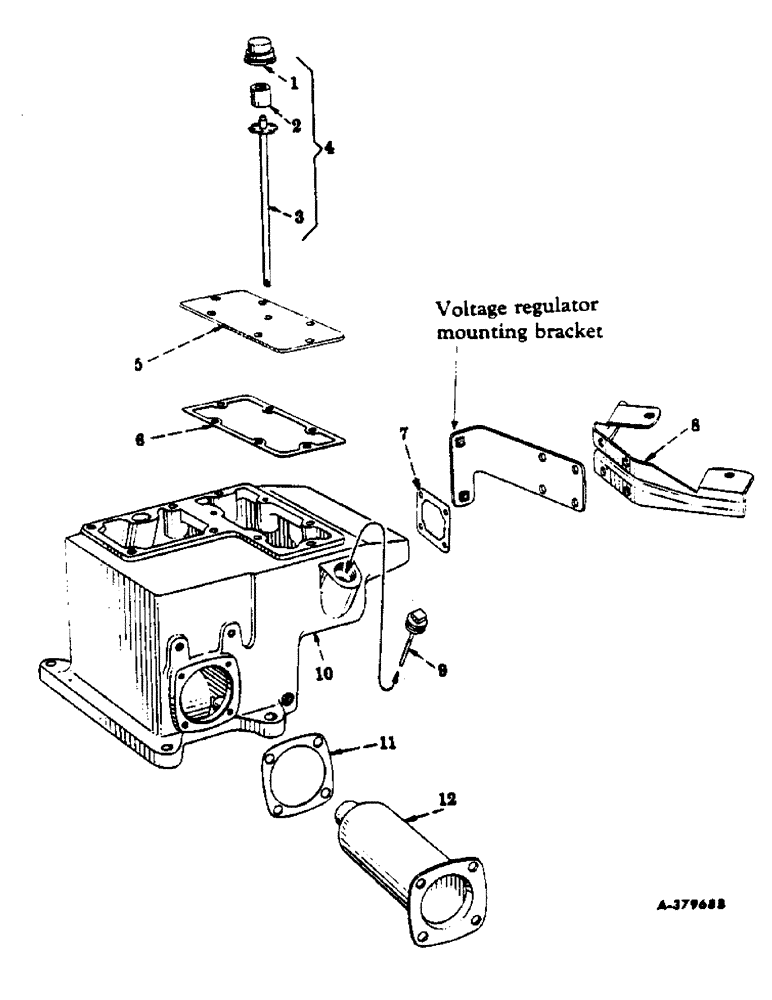

Запчасти Case IH 350 (266) - HYDRAULIC SYSTEM, HYDRA-TOUCH SYSTEM, RESERVOIR UNIT (07) - HYDRAULIC SYSTEM

1

362349R1

CAP, breather (A, B, and C only)

1шт.

2

362350R1

ELEMENT, air filter (A, B, and C only)

1шт.

3

362351R91

PIPE, hydraulic breather, w/support (A, B, and C only)

1шт.

4

362348R91

BREATHER, hydraulic (includes cap, 362349R1, element, 362350R1 and pipe, 362351R91) (A, B, and C only)

1шт.

5

361442R2

PLATE, reservoir top cover (A, B, and C only)

1шт.

6

361443R2

GASKET

reservoir top cover plate (A, B, and C only)

1шт.

7

362448R1

GASKET, reservoir end (A, B, and C only)

1шт.

8

365916R1

BRACKET, junction block front support, Farmall 300 series, 30085 up, Farmall 350 series, 501 up (B, C, D, and E only)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(B, C, D, and E only) Hex, 3/8"-16 x 1", G5

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8", Farmall 300 series, 501 to 30084 (B and C only)

4шт.

8

365917R91

PACKAGE, service, junction block front support bracket (will work for 361773R1), Farmall 300 series, 501 to 30084 (consists of (1) bracket 365916R1, (2) grommet 365919R1, (4) nut 365922R1, (2) screw 365918R1, (4) screw 179848) (B, C, D, and E only)

1шт.

9

361605R91

PLUG, reservoir filler, w/oil gage (A, B, and C only)

1шт.

10

361520R11

RESERVOIR, hydraulic, w/plug, 103879, and plug, 143999 (order 364071R91), Farmall 300 series, 501 to 18161 (A, B, and C only)

1шт.

10

361520R21

RESERVOIR, hydraulic, w/plug, 103879, and plug, 443999, Farmall 300 series, 18162 up, Farmall 350 series, 501 up (A, B, and C only)

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (drain plug) (A, B, and C only)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4" (A, B, and C only)

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Farmall 300 series, 18162 up, Farmall 350 series, 501 up (A, B, and C only) 7/16"

3шт.

11

361441R1

GASKET

oil strainer flange (A, B, and C only)

1шт.

12

361435R91

FILTER

STRAINER, oil, w/screen (A, B, and C only)

1шт.

179814

SPACER

(A, B, and C only) Hex, 5/16"-18 x 5/8", G5

4шт.

365843R1

FLUID, tractor touch-control (one quart can) (A, B, and C only)

1шт.

365622R1

TUBE

FLUID, tractor touch-control (one gallon can) (A, B, and C only)

1шт.

364071R91

PACKAGE, service, hydraulic reservoir (will work for 361520R11) (consists of gasket, 361443R2, reservoir, 361520R21, and two screws, 179860), Farmall 300 series, 501 to 18161 (A, B, and C only)

1шт.
