Запчасти Case IH 350 (303) - ATTACHMENTS, PRE-SCREENER, SPECIAL Attachments

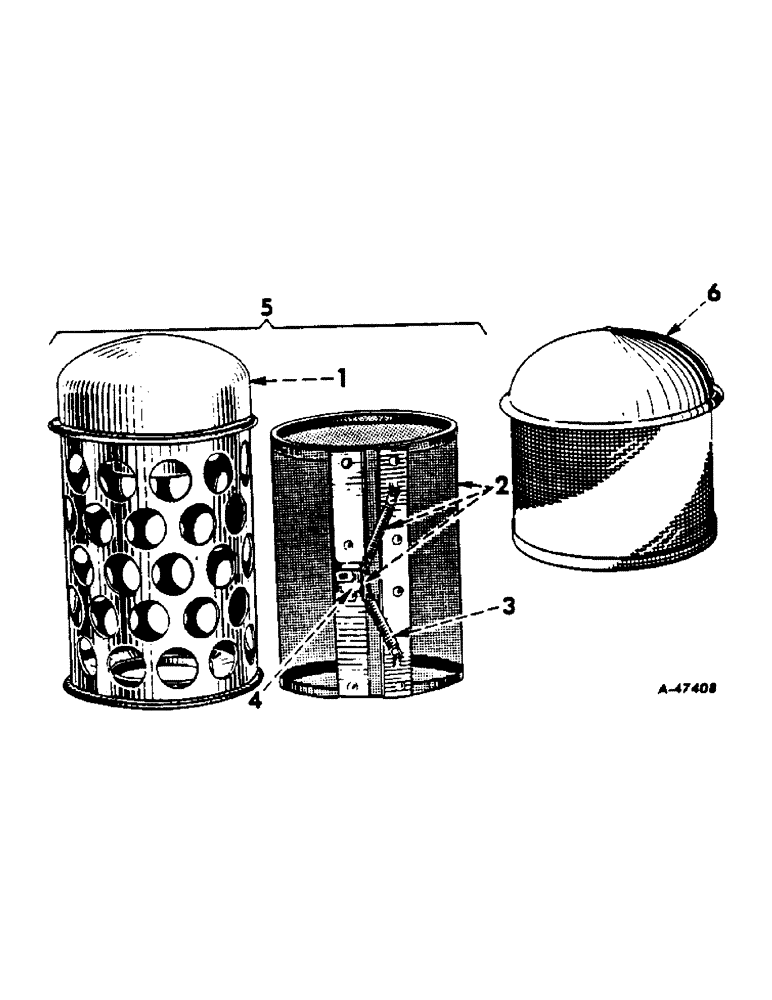

Схема запчастей Case IH 350 - (303) - ATTACHMENTS, PRE-SCREENER, SPECIAL Attachments
4
6
2
3
1
5

Артикул

Название

Примечание

Количество

1

353634R92

BODY

pre-screener

1шт.

2

353637R91

SCREEN

pre-screener, w/clip, 353758R1 and two springs, 353639R1

1шт.

3

353639R1

VALVE SPRING

SPRING, tension, screen lock

2шт.

4

353758R1

CLIP

screen lock spring

1шт.

5

353411R92

FILTER ASSY

PRE-SCREENER, air cleaner (optional w/367721R91)

1шт.

6

367721R91

SCREEN

PRE-SCREENER, air cleaner (optional w/353411R92)

1шт.

Выбрано товаров: 6
