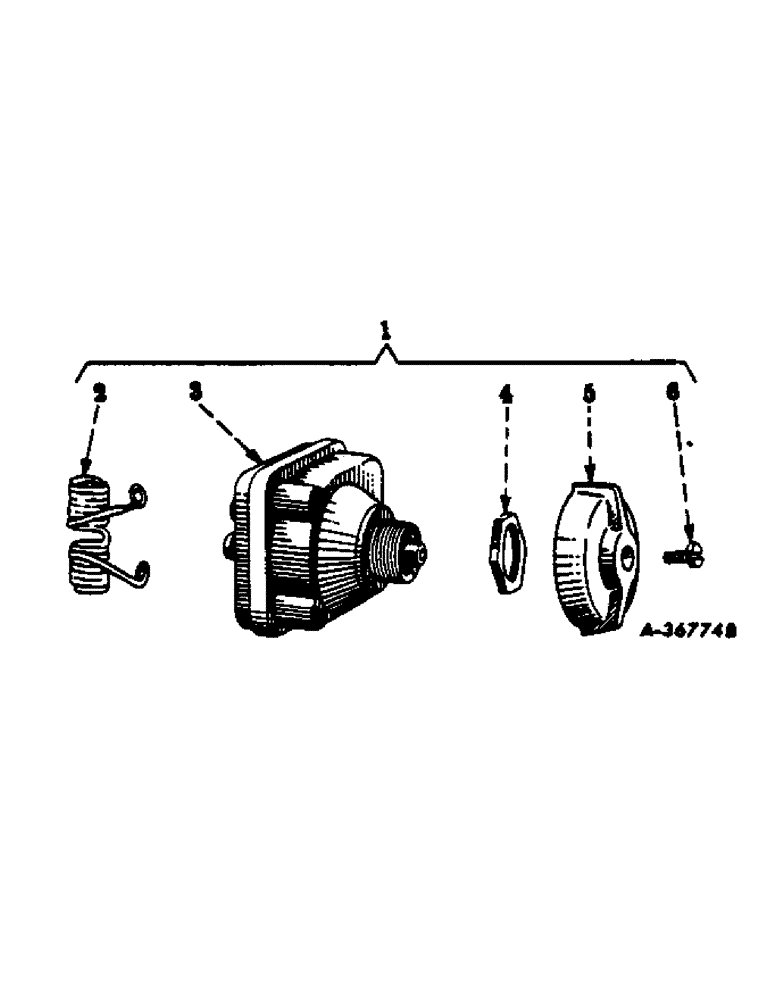

Запчасти Case IH 350 (144) - ELECTRICAL SYSTEM, DIESEL ENGINE, LIGHT SWITCH, DELCO-REMY, FOR TRACTORS EQUIPPED W/LIGHTING SYSTEM (06) - ELECTRICAL SYSTEMS

1

363131R91

SWITCH

lighting (12 volt), assembly (Mfr. 1994043)

1шт.

2

COIL, resistance, lighting switch dimmer (12 volt) (Mfr. 1877830)

1шт.

SCREW, dimmer coil attaching (Mfr. 1882994)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

3

SWITCH, lighting (not serviced separately - order switch assembly)

1шт.

SCREW, terminal (3/8" long) (Mfr. 1882994)

4шт.

141706

WASHER

lock, internal-tooth, 11/16"

1шт.

WASHER, lock, terminal screw (Mfr. 1873844)

4шт.

4

NUT, mounting, lighting switch (Mfr. 1882012)

1шт.

5

KNOB, lighting switch (Mfr. 1930685)

1шт.

6

SCREW, mounting, lighting switch knob (Mfr. 1864099)

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.
