Запчасти Case IH 350 (120) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING AND LIGHTING SYSTEM, FOR FARMALL 350 SERIES TRACTORS (06) - ELECTRICAL SYSTEMS

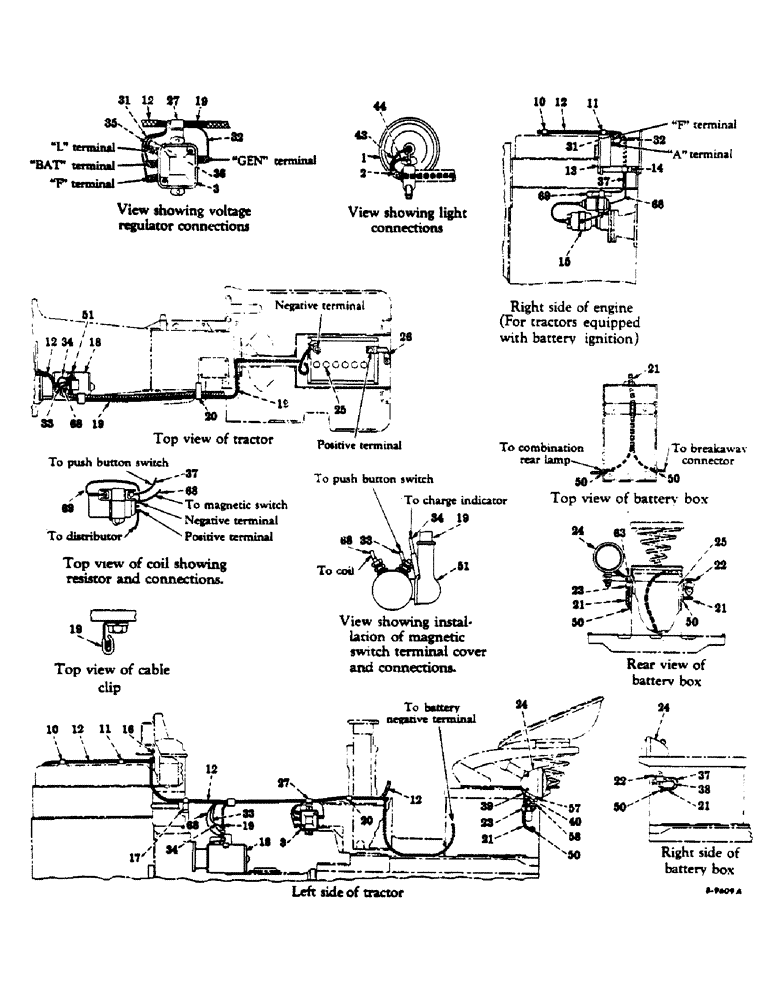

Схема запчастей Case IH 350 - (120) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING AND LIGHTING SYSTEM, FOR FARMALL 350 SERIES TRACTORS (06) - ELECTRICAL SYSTEMS
2
39
12
3
34
11
24
65
50
25
25
18
58
19
12
51
37
68
19
21
69
23
34
63
12
50
38
26
17
27
33
24
68
43
16
21
10
12
68
18
21
14
44
37
50
69
21
36
16
31
21
32
19
33
22
57
40
22
13
35
51
32
12
37
6
20
50
34
20
23
68
1
15
50
12
1
19
18
24
31
27
33

Артикул

Название

Примечание

Количество

1

357884R94

LAMP

LIGHT, sealed beam assembly (for components see list of parts under details of "Headlights")(A only)

2шт.

1

357885R94

LAMP

LIGHT, sealed beam, assembly (for components see list of parts under details of "Headlights")(B only)

2шт.

102378

NUT, hex., cd-pltd., 1/2-13NC

2шт.

102384

HYDRAULIC VALVE

SPARE PART WASHER, lock, medium, cd-pltd., 1/2"

2шт.

2

362011R91

HARNESS

HARNESS, headlight cable, w/four cables

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

SCREW, cap, hex-hd., 7/16-14NC x 5/8" (ground screw in control valve column)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

360898R91

REGULATOR

REGULATOR, voltage, assembly (for components see list of parts under details of "Voltage Regulator")(A only)

1шт.

3

360899R91

REGULATOR

REGULATRO, voltage, assembly (for components see list of parts under details of "Voltage Regulator")(B only)

1шт.

179788

SHEET

SCREW, cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

125588

BULB,#55, Type C-2R, 6V

LAMP, no. 55 (instrument panel)(A only)

1шт.

4

A14553

BULB

LAMP, no. 57 (instrument panel)(B only)

1шт.

5

360053R91

INDICATOR

INDICATOR, charge, w/clamp, 6 nuts and 6 washers

1шт.

6

432281

HOLE PLUG BUTTON,29/32"

PLUB, button, cr-pltd., (used to plug hole on tractors without cigarette lighter) 29/32"

1шт.

7

366313R91

SWITCH

SPARE PART SWITCH, ignition lock, w/2 cables and 2 keys (note A)

1шт.

365502R1

NUT

NUT, mounting

1шт.

125793

WASHER, LOCK, Int Tooth, 13/16"

1шт.

8

363130R91

SWITCH

SWITCH, lighting, assembly (for components see list of parts under details of "Lighting Switch")(A only)

1шт.

8

363131R91

SWITCH

SWITCH, lighting, assembly (for components see list of parts under details of "Lighting Switch")(B only)

1шт.

9

365515R91

FUSE CARTRIDGE

HOUSING, fuse, w/2 cables, 356445R91 knob, nut and washer (illustrated with "Engine Controls and Instruments")

1шт.

10

362123R1

CLIP

CLIP, cable harness (on valve cover rear stud)

1шт.

11

362123R1

CLIP

CLIP, cable harness (on valve cover front stud)

1шт.

12

366314R91

SPARE PART HARNESS, cable, w/7 cables (A only)

1шт.

12

368883R91

CABLE

HARNESS, cable, w/8 cable (B only)

1шт.

13

GENERATOR, assembly (for components see list of parts under details of "Generator and Connections")

1шт.

14

362667R1

CLIP

CLIP, ignition and starting switch to coil cable (on generator bracket front mounting bolt)

1шт.

15

DISTRIBUTOR, assembly (refer to "Battery Ignition Unit") (note A)

1шт.

16

362123R1

CLIP

CLIP, cable harness (on steering shaft center bearing bracket lower mounting bolt)

1шт.

17

362123R1

CLIP

CLIP, cable harness on hood sheet support bracket attaching screw

1шт.

18

361982R91

SPARE PART MOTOR, cranking, assembly (for components see list of parts under details of "Cranking Motor") (A only)

1шт.

18

104218A2R

REMAN-STARTER

Remanufactured Starting Motor

1шт.

18

104218A1C

CORE-STARTER

Return Number, Starting Motor

1шт.

18

368570R91

SPARE PART MOTOR, cranking (B only)

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

366196R91

CABLE

CABLE, battery to solenoid switch, w/356062R91 bolt and 364910R1 cover

1шт.

20

362666R1

CLIP

CLIP, cable harness and battery to solenoid switch cable (on hydra-touch control valve column front mounting bolt, LH)

1шт.

21

366459R91

CABLE

SPARE PART HARNESS, rear light and break-away connector socket w/6 cables

1шт.

22

362002R92

SOCKET

SOCKET, electrical break-away connector, w/cap, 2 screws and spring

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

368387R1

SPACER, break-away connector

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable harness (on rear light mounting bracket upper bolt)

1шт.

24

361985R93

LAMP

LIGHT, combination rear light and tail, assembly (for components see list of parts under details of "Combination Rear Light and Tail Light")(A only)

1шт.

24

361986R93

LAMP

LIGHT, combination rear light and tail (12 volt) assembly (for components see list of parts under details of "Combination Rear Light and Tail Light")(B only)

1шт.

102378

NUT, hex., cd-pltd., 1/2-13NC

1шт.

102384

HYDRAULIC VALVE

SPARE PART WASHER, lock, medium, cd-pltd., 1/2"

1шт.

25

354210R91

SPARE PART BATTERY, (Globe-Union, wet charged) (optional with 355196R93)(A only)

1шт.

25

355196R93

SPARE PART BATTERY, (Auto-Lite, wet charged)(optional with 354210R91)(A only)

1шт.

25

368879R91

BATTERY

BATTERY, (Auto-Lite, wet charged)(B only)

1шт.

26

358987R92

CABLE

STRAP, battery to ground, w/356062R91 bolt

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

190256

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 4-1/2"

1шт.

364410R1

SPACER,1/2" Pipe x 1 3/8"

SPACER, ground strap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

363118R1

SPARE PART CLIP, cable harness (on voltage regulator upper mounting bolt between regulator foot and bracket)

1шт.

28

CLIP (NSS), cable harness, Serial Range: (welded-shroud)

1шт.

29

CLIP (NSS), cable harness, Serial Range: (welded-shroud)

1шт.

30

CABLE, push button starting switch to coil (black)(order 366314R91 harness)(note A)(A only)

1шт.

30

CABLE, push button starting switch to resistor battery (black) (B only)

1шт.

30

CABLE, junction block to magneto short circuiting terminal (black)(order 366314R91 harness)(A only)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SPARE PART SCREW, mach., slt-fil-hd., cd-pltd., no. 10-32NF x 5/16" (note B)(A only)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, (Note B) (A only) #10

1шт.

31

CABLE, voltage regulator "F" terminal to generator "F" terminal (yellow)(order 366314R91 harness)(A only)

1шт.

31

CABLE, voltage regulator "F" terminal to generator "F" terminal (yellow)(order 368883R91 harness)(B only)

1шт.

32

CABLE, voltage regulator "GEN" terminal to generator "A" terminal (light blue)(order 366314R91 harness)(A only)

1шт.

32

CABLE, voltage regulator "GEN" terminal to generator "A" terminal (light blue)(order 368883R91 harness)(B only)

1шт.

33

CABLE, push button starting switch to solenoid switch (orange) (order 366314R91 harness)(A only)

1шт.

33

CABLE, push button starting switch to solenoid switch (orange) (order 368883R91 harness)(B only)

1шт.

34

CABLE, charge indicator to solenoid switch (red)(order 366314R91 harness)(A only)

1шт.

34

CABLE, charge indicator to solenoid switch (red)(order 368883R91 harness)(B only)

1шт.

35

CABLE, charge indicator to voltage regulator "BAT" terminal (gray)(order 366314R91 harness)(A only)

1шт.

35

CABLE, charge indicator to voltage regulator "BAT" terminal (gray)(order 368883R91 harness)(B only)

1шт.

36

CABLE, voltage regulator "L" terminal to fuse housing cable terminal (light green)(order 366314R91 harness)(A only)

1шт.

36

CABLE, voltage regulator "L" terminal to fuse housing cable terminal (light green)(order 368883R91 harness)(B only)

1шт.

37

CABLE, lighting switch to break-away connector socket (black) (order 366459R91 harness)

1шт.

38

CABLE, break-away connector to ground bolt (pink)(order 366459R91 harness)

1шт.

39

CABLE, lighting switch to combination rear light and tail light (black)(order 366459R91 harness)

1шт.

40

CABLE, combination rear light and tail light to ground bolt (pink)(order 366459R91 harness)

1шт.

41

CABLE, fuse housing to regulator "L" terminal cable terminal (order 365515R91 housing)

1шт.

42

CABLE, fuse housing to lighting switch (order 365515R91 housing)

1шт.

43

CABLE, lighting switch to headlight (black)(order 362011R91 harness)

2шт.

44

CABLE, headlight to ground (pink)(order 362011R91)

2шт.

45

CABLE, instrument panel light to lighting switch (order 362011R91 socket)

1шт.

46

362668R1

SPARE PART CLIP, cable harness and battery cable (on hydraulic junction block mounting bolt)(for tractors equipped with hydra-touch system)(triple valve)(A only)

1шт.

47

363850R91

SPARE PART MAGNETO, assembly (for components see list of parts under details of "Magneto")(note B)(A only)

1шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, (Notes B and C) (A only) Jam, 3/8"-24, G5

1шт.

NLS

NO LONGER SERVICED

(Lower) (Note B) (A only) Hex, 3/8"-16 x 1 1/2", G5

1шт.

179846

LEVER

BOLT (SPREADER), hex-hd., 3/8-16NC x 1-7/8" (Upper) (Not used on tractors equipped with hydra-touch system) (Note B) (A only)

1шт.

365739R1

SPARE PART STUD, hydraulic pump (will work for 324445D)(notes B and C)(A only)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note B) (A only) 3/8"

2шт.

24523D

WASHER

WASHER, magneto mounting screw (note B)(A only)

2шт.

120930

WASHER

WASHER, lock, external-tooth, 3/8" (notes B and C)(A only)

1шт.

48

367168R91

SPARE PART SWITCH, magneto ignition, w/2 keys, mounting nut and 2 terminal screws (note B)(A only)

1шт.

49

367166R91

SPARE PART CABLE, magneto ignition switch to junction block (black)(note B) (A only)

1шт.

50

52118D

GROMMET

GROMMET, cable harness

2шт.

51

364910R1

BOOT

COVER, solenoid terminal

1шт.

52

TAPE, electrical, plastic (used to tape cable harness and battery to solenoid switch cable together)

1шт.

53

366316R91

SWITCH

SWITCH, starting, push button, assembly (1H)(for components see list of parts under details of "Push Button Starting Switch") (optional with 366317R91)

1шт.

53

366317R91

IGNITION SWITCH

SWITCH, starting, push button, assembly (Indak MFG Corp.) (optional with 366316R91)(composed of (2) nut 120611, (2) screw 131958, (2) screw 132903, (1) switch (NSS), (2) washer 120217, (2) washer 121841)

1шт.

54

365501R1

TERMINAL CONNECTOR

TERMINAL, line connector (note A)

2шт.

55

366456R1

SPARE PART BODY, connector, short (note A)

2шт.

56

362001R91

SOCKET

SOCKET, instrument panel light, w/cable

1шт.

57

49069D

SPACER

SPACER, headlight or rear light

3шт.

58

350920R1

CLAMP

CLAMP, headlight or rear light

3шт.

59

361994R1

SPARE PART PIPE, support, headlight

2шт.

60

361989R91

SPARE PART BRACKET, support, headlight, LH

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

SCREW, mach., cr-rec-truss-hd., w/washer

4шт.

61

361992R91

SPARE PART BRACKET, support, headlight, RH

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

SCREW, mach, cr-rec-truss-hd., w/washer

4шт.

62

367165R91

SPARE PART CABLE, magneto ignition switch to ground cable (black)(note B) (A only)

1шт.

63

361995R12

SPARE PART BRACKET, support, rear light

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

64

367166R91

SPARE PART CABLE, push button starting switch to charge indicator (black) (note B)(A only)

1шт.

65

42915D

BLOCK

BLOCK, junction (note B)(A only)

1шт.

132919

SCREW,Sl Rnd Hd, #10 - 32 x 7/8"

SCREW, mach., slt-rd-hd., cd-pltd., no. 10-32NF x 7/8"(A only)

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

SPACER, junction block (A only)

1шт.

66

CABLE, ignition switch to charge indicator (black)(order 366313R91 switch)(note A)

1шт.

67

CABLE, ignition switch to push button starting switch (black) (order 366313R91 switch)(note A)(B only)

1шт.

68

CABLE, solenoid switch to coil (B only)

1шт.

69

CABLE, resistor to coil (B only)

1шт.

106653

FUSE

FUSE, type AGC, 20 amp (A only)

1шт.

455844

FUSE,25 Amp, Type 3AG

FUSE, type AGN, 25 amp (A only)

1шт.

10815V

FUSE

FUSE, cartridge type, 10 amp (B only)

1шт.

9426333

FUSE,15 Amp, Type 3AG

FUSE, cartridge type, 15 amp (B only)

1шт.

368869R91

SPARE PART

1шт.

PACKAGE, conversion, 12 volt electrical equipment (used to equip tractors with 12 volt electrical system)(consists of (1) baffle 263303R1, (1) cable 357929R92, (1) cable 358317R1, (1) clamp 368840R91, (1) coil 43039D, (1) cranking motor 368871R91, (1) fan 90426H, (1) fuse 120151, (1) generator 282653R91, (1) pulley 368591R1, (1) retainer 368594R1, (1) voltage regulator 360899R1)(A only)

1шт.

Выбрано товаров: 131
