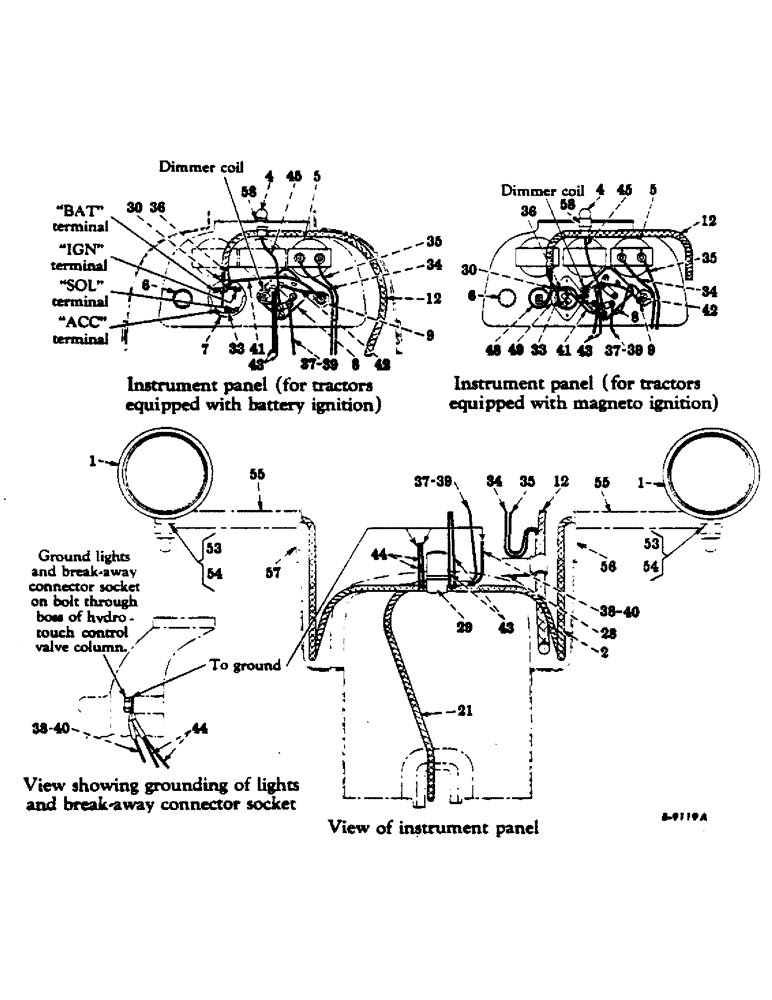

Запчасти Case IH 350 (115) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING AND LIGHTING SYSTEM, FOR FARMALL 300 SERIES TRACTORS (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
357884R94
LAMP
LIGHT, sealed beam, assembly (6 volt) (for components see list of parts under details of "Headlights)(A only)
2шт.
179854
SCREW,Hex, 7/16" - 14 x 5/8"
SCREW, cap, hex-hd., 7/16-14NC x 5/8" (ground screw in control valve column)
1шт.
3
360898R91
REGULATOR
REGULATOR, voltage, assembly (6 volt) (for components see list of parts under details of "Voltage Regulator") (A only)
1шт.
3
360899R91
REGULATOR
REGULATOR, voltage, assembly (12 volt) (for components see list of parts under details of "Voltage Regulator") (B only)
1шт.
179789
BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
SCREW, cap, hex-hd., 1/4-20NC x 5/16"
2шт.
4
125588
BULB,#55, Type C-2R, 6V
LAMP, no. 55 (6 volt) (instrument panel) (A only)
1шт.
4
127934
BELT, TRANSMISSION
LAMP, no. 57 (12 volt) (instrument panel) (B only)
1шт.
6
432281
HOLE PLUG BUTTON,29/32"
PLUG, button, chr-pltd., (used to plug hole when tractor is not equipped with cigarette lighter) 29/32"
1шт.
7
300557R91
SWITCH
SWITCH, ignition lock and starting assembly (will work for 361998R93) assembly (not illustrated)
1шт.
7
361998R93
SWITCH
SWITCH, ignition lock and starting, assembly (for components see list of parts under details of "Ignition Lock and Starting Switch") (note A) (order 300557R91)
1шт.
8
363130R91
SWITCH
SWITCH, lighting, assembly (6 volt) (for components see list of parts under details of "Lighting Switch") (A only)
1шт.
8
363131R91
SWITCH
SWITCH, lighting, assembly (12 volt) (for components see list of parts under details of "Lighting Switch") (B only)
1шт.
9
362669R91
HOUSING
HOUSING, fuse, w/two cables, knob, 356445R91, nut and washer (illustrated with Engine Controls and Instruments) (A only)
1шт.
14
362667R1
CLIP
CLIP, ignition and starting switch to coil cable (on generator bracket front mounting bolt)
1шт.
16
362123R1
CLIP
CLIP, cable harness (on steering shaft center bearing bracket lower mounting bolt)
1шт.
17
362123R1
CLIP
CLIP, cable harness (on hood sheet support bracket screw)(will work for 363441R1)
1шт.
181356
BOLT,Hex, 3/8" - 24 x 5/8", Gr 5
BOLT, Hex, 3/8"-24 x 5/8", G5, Full Thd
1шт.
18
361982R91
SPARE PART MOTOR, cranking, assembly (6 volt) (for components see list of parts under details of "Cranking Motor")(A only)
1шт.
18
366667R91
MOTOR, cranking, assembly (12 volt) (not illustrated) (for components see list of parts under details of "Cranking Motor") (will work for 364693R91) (B only)
1шт.
19
366196R91
CABLE
CABLE, battery to solenoid switch, w/bolt, 356062R91, and cover, 364910R1 (will work for 362018R92) (A only)
1шт.
19
366197R91
CABLE
CABLE, battery to solenoid switch, w/bolt, 356062R91, and cover, 364910R1 (will work for 364714R92) (B only)
1шт.
20
362666R1
CLIP
CLIP, cable harness and battery to solenoid switch cable (on hydra-touch control valve column front mounting bolt, LH)(A only)
1шт.
20
362666R1
CLIP
CLIP, cable harness and battery to solenoid switch cable (on fuel tank bracket attaching screw) (B only)
1шт.
21
362012R92
HARNESS
HARNESS, rear light and break-away connector socket, w/six cables
1шт.
22
362002R92
SOCKET
SOCKET, electrical break-away connector, w/cap, two screws, and spring
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd
2шт.
23
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, rear light cable harness (on rear light mounting bracket upper bolt)
1шт.
24
361985R93
LAMP
LIGHT, combination rear light and tail, assembly (6 volt) (for components see list of parts under details of "Combination Rear Light and Tail Light") (A only)
1шт.
24
361986R93
LAMP
LIGHT, combination rear light and tail, assembly (12 volt) (for components see list of parts under detail of "Combination Rear Light and Tail Light") (B only)
1шт.
25
354210R91
SPARE PART BATTERY (GLOBE-UNION), (6 volt, wet charged) (optional with 355196R93) (A only)
1шт.
25
355196R93
SPARE PART BATTERY (AUTO-LITE), (6 volt, wet charged) (optional with 354210R91) (A only)
1шт.
25
358907R91
SPARE PART BATTERY (AUTO-LITE), (12 volt) (optional with 360036R91) (not illustrated) (B only)
1шт.
25
360036R91
SPARE PART BATTERY (GLOBE-UNION), (12 volt) (optional with 358907R91) (not illustrated) (B only)
1шт.
109256
SCREW, cap, hex-hd., 1/2-13NC x 4-1/2" (used with rear frames, 360553R3, 9313 up (NSS)
1шт.
433142
BOLT
SCREW, cap, hex-hd., 7/16-14 NC x 4-1/2" (used with rear frames, 360553R2 (NSS), Serial Range: 501-9312
1шт.
364410R1
SPACER,1/2" Pipe x 1 3/8"
SPACER, ground strap (illustrated with battery box) (will work for 358285R1)
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, (For Washer, Lock, 7/16" screws), 501 to 9312 7/16"
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, (For Washer, Lock, 1/2" screws), 9313 up 1/2"
1шт.
27
363118R1
SPARE PART CLIP, cable harness (on voltage regulator mounting bolt between regulator foot and bracket) (A only)
1шт.
28
CLIP, cable harness (not serviced separately, Serial Range: welded-shroud)
1шт.
29
CLIP, cable harness (not serviced separately, Serial Range: welded-shroud)
1шт.
30
CABLE, ignition lock and starting switch "IGN" terminal to coil (black) (order 362019R91) (note A)
1шт.
30
CABLE, magneto ignition switch terminal to magneto short circuiting terminal (black) (order 362019R91) (note B)
1шт.
132100
SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"
SPARE PART SCREW, machine, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/16" (note B)
1шт.
31
CABLE, voltage regulator "F" terminal to generator "F" terminal (yellow) (order 362019R91)
1шт.
32
CABLE, voltage regulator "GEN" terminal to generator "A" terminal (light blue) (order 362019R91)
1шт.
33
CABLE, ignition lock and starting switch "SOL" terminal to solenoid switch (orange) (order 362019R91) (note A)
1шт.
33
CABLE, push button starting switch terminal to solenoid switch (orange) (order 362019R91) (note B)
1шт.
35
CABLE, charge indicator to voltage regulator "BAT" terminal (gray) (order 362019R91)
1шт.
36
CABLE, ignition lock and starting switch "BAT" terminal to voltage regulator "L" terminal (light green) (order 362019R91) (note A)
1шт.
36
CABLE, push button starting switch terminal to voltage regulator "L" terminal (light green)(order 362019R91) (note B)
1шт.
37
CABLE, lighting switch to break-away connector socket (black) (order 362012R92)
1шт.
39
CABLE, lighting switch to combination rear light and tail light (black)(order 362012R92)
1шт.
40
CABLE, combination rear light and tail light to ground bolt (pink) (order 362012R92)
1шт.
41
CABLE, fuse housing to ignition lock and starting switch "BAT" cable (order 362669R91) (note A)
1шт.
41
CABLE, fuse housing to push button starting switch (order 362669R91) (note B)
1шт.
46
362668R1
SPARE PART CLIP, cable harness and battery cable (on hydraulic junction block mounting bolt)(for tractors equipped with hydra-touch system)(triple valve)
1шт.
47
363850R91
SPARE PART MAGNETO, assembly (for components see list of parts under details of "magneto")(note B)
1шт.
179843
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
(Lower) (Note B) Hex, 3/8"-16 x 1 1/2", G5
1шт.
179846
LEVER
BOLT (SPREADER), hex-hd., 3/8-16NC x 1-7/8" (Upper) (Not used on tractors equipped with hydra-touch system) (Note B)
1шт.
365739R1
SPARE PART STUD, hydraulic pump (will work for 32445D) (see notes B and C) (A only)
1шт.
48
54207DB
SWITCH
SWITCH, magneto ignition, assembly (for components see list of parts under details of "Magneto Ignition Switch") (note B)
1шт.
49
255357R91
SWITCH
SWITCH, push button starting, assembly (for components see list of parts under details of "Push Button Starting Switch") (note B)
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd
2шт.
52
362666R1
CLIP
CLIP, cable harness and battery to solenoid switch cable (not illustrated)(on fuel filter bracket attaching screw) (B only)
1шт.
52
TAPE, plastic electrical (use to tape cable harness and battery to solenoid switch cable) (A only)
1шт.
362593R91
CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"
SCREW, headlight support, bracket, w/washer (note D)
4шт.
362664R91
SCREW,Truss HD, 5/16" - 18 x 5/8"
SCREW, machine, cross-recess-truss-hd., w/washer (note E)
4шт.
362593R91
CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"
SCREW, headlight support bracket, w/washer (note D)
4шт.
362664R91
SCREW,Truss HD, 5/16" - 18 x 5/8"
SCREW, machine, cross-recess-truss-hd., w/washer (note E)
4шт.
