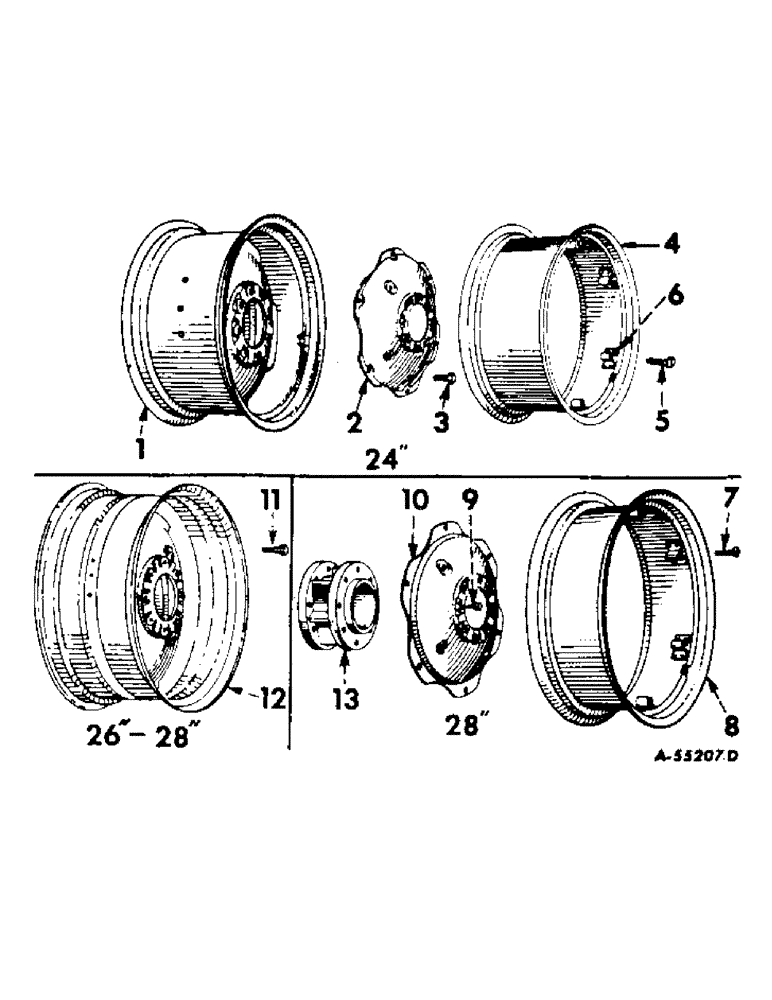

Запчасти Case IH 340 (186) - WHEELS, REAR WHEELS, INTERNATIONAL 330, 340 AND 340 DIESEL (11) - WHEELS

1

364346R92

WHEEL

ASSEMBLY, rear (disc type, W/12-24 rim for 13-24 or 14-24 tires) (2 for unit A)

1шт.

1

365480R91

WHEEL

ASSEMBLY, rear (disc type, W/16-24 rim for 14-24 tires) (2 for unit A)

1шт.

1

376196R91

WHEEL

ASSEMBLY, rear (disc type, W/12-24 rim for 13.6/12-24 or 16.9/14-24 tires) (60 x 64" thread) (2 for unit A)

1шт.

2

369485R1

DISC, rear wheel (2 for unit A)

1шт.

3

368114R1

BOLT,Hex, 9/16" - 18 x 1.78"

rear wheel mounting (16 for unit A) (for tractors with 24" wheels and slidable rear wheel hub)

1шт.

NUT, 9/16NF cd-pltd.

16шт.

WASHER, 9/16" cd-pltd. lock

16шт.

4

369486R92

RIM ASSEMBLY, rear wheel (W12-24 rim for 12-24, 13-24 or 14-24 tire) (2 for unit A)

1шт.

4

369487R92

RIM ASSEMBLY, rear wheel (W16-24 rim for 14-24 tire) (2 for unit A)

1шт.

5

372981R1

BOLT (MACHINE),Sq Hd, 5/8" - 18 x 2 1/2"

BOLT, rear wheel rim clamp (8 for unit A)

1шт.

352777R1

NUT

5/8" cd-pltd.

8шт.

WASHER, 5/8" cd-pltd. heavy lock

8шт.

369730R1

WASHER

21/32 x 1-5/6 x .134 cd-pltd.

8шт.

6

3680075R92

PACKAGE, rear wheel clamp (8 for unit A)

1шт.

7

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp (12 for unit A)

1шт.

352777R1

NUT

rear wheel rim clamp bolt

12шт.

WASHER, 5/8" cd-pltd. heavy lock

12шт.

369730R1

WASHER

21/32 x 15/16" x 10 ga.

12шт.

8

361700R91

RIM

ASSEMBLY, rear wheel (W10-28 rim for 12.4/11-28 tire) (2 for unit A; 4 for unit B)

1шт.

8

363988R91

RIM

ASSEMBLY, rear wheel (W12-28 rim for 13.6/12-28 or 14.9/13-28 tire) (2 for unit A)

1шт.

9

364451R1

BOLT,9/16" - 18 x 1 7/32"

rear wheel mounting (16 for unit A)

1шт.

9

364895R1

BOLT,9/16" - 18 x 1.59"

rear wheel mounting (16 for unit B)

1шт.

10

364724R1

DISC, rear wheel (2 for unit A; 4 for unit B)

1шт.

11

368114R1

BOLT,Hex, 9/16" - 18 x 1.78"

rear wheel mounting (16 for unit A)

1шт.

11

375143R1

BOLT,Hex, 3/16" - 18 x 1.92" Thd L

rear wheel mounting (16 for unit A) Grove tractors

1шт.

NUT, 9/16NF cd-pltd.

16шт.

WASHER, 9/16" cd-pltd. lock

16шт.

12

376197R91

WHEEL ASSY.

WHEEL ASSEMBLY, rear (disc type, W/12-28 rim for 13.6/12-28 or 14.9/13-28 tires) (60 and 64" tread) (2 for unit A)

1шт.

12

375141R91

WHEEL ASSEMBLY, rear (disc type, DW16-26 rim for 16.9/14-26 or 18/4/15-26 tires) (2 for unit A) (Grove tractors)

1шт.

12

375142R91

WHEEL ASSEMBLY, rear (disc type, DW/18-26 rim for 18.4/15.26 tires) (2 for unit A) (Grove tractors)

1шт.

364894R91

PACKAGE, dual rear wheel mounting bolt (unit B) (for tractors with W10-28 rims) (consists of 16 bolts, 364895R1 and two studs, 364896R1)

1шт.

367864R91

PARTS ACCESSORY, dual wheel spacer (unit B) (see note C)

1шт.

13

367865R1

SPACER, dual rear wheel (2 for unit B)

1шт.

SCREW, 9/16NF x 1-3/4" hex-hd. cap

16шт.

WASHER, 9/16" lock

16шт.
