Запчасти Case IH 340 (217) - HYDRAULIC SYSTEM, HYDRA-TOUCH CONTROL VALVE (07) - HYDRAULIC SYSTEM

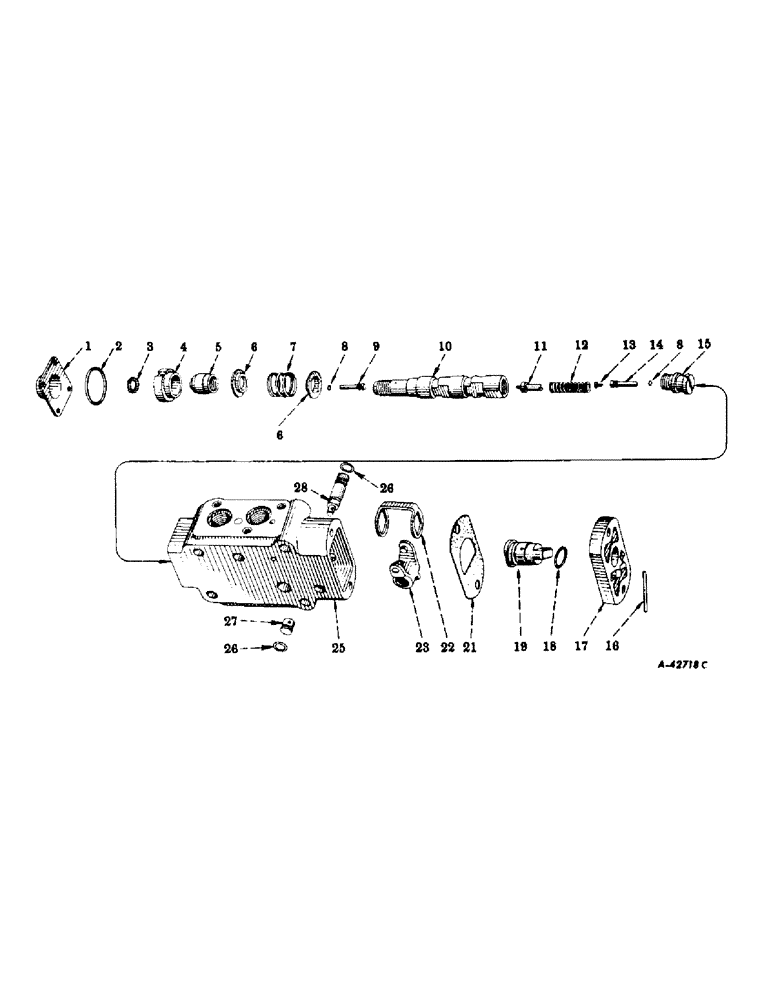

Схема запчастей Case IH 340 - (217) - HYDRAULIC SYSTEM, HYDRA-TOUCH CONTROL VALVE (07) - HYDRAULIC SYSTEM
4
26
19
10
15
3
6
14
5
7
26
23
6
21
8
12
2
16
17
1
27
25
8
9
13
18
11
28
22

Артикул

Название

Примечание

Количество

365981R92

VALVE ASSEMBLY, hydra-touch control (used in double and triple valve positions) International 330

1шт.

365985R92

VALVE ASSEMBLY, hydra-touch control (used in single valve position) (service note, T except the control valve lever shaft and yoke assembly is reversed 180deg.. This assembly position is not illustrated here.) International 330

1шт.

371061R92

VALVE ASSEMBLY, hydra-touch control (used in double or triple valve positions) 340 Series

1шт.

371062R92

VALVE ASSEMBLY, hydra-touch control (used in single valve position) (service note, This valve is same as 371061R91 except the control valve lever shaft and yoke assembly is reversed 180deg.. This assembly position is not illustrated here.) 340 Series

1шт.

371067R92

1шт.

VALVE ASSEMBLY, hydra-touch control (used in single valve position, on tractors with power steering and engine driven pump) (service note, This valve is same as 371061R91 except the control valve lever shaft and yoke assembly is reversed 180deg.. This assembly position is not illustrated here.) 340 Series

1шт.

1

360607R1

CAP

control valve

1шт.

SCREW, 1/4 x 1/2" cd-pltd. hex-hd. cap

4шт.

2

360610R1

O-RING,1.609" ID x 0.139" Width

control valve cap (1-5/8 x 1-7/8 x 1/8")

1шт.

3

360606R1

SPRING,Extension, 0.174" OD x 1.90" L

garter

1шт.

4

360609R1

SLEEVE, garter spring (optional with 374012R91)

1шт.

4

374012R91

SLEEVE ASSEMBLY, garter spring (optional with 360609R1)

1шт.

5

360605R1

RETAINER, unlatching piston lower

1шт.

6

360595R1

RETAINER, control valve centering spring

2шт.

7

360594R2

SPRING

control valve centering

1шт.

8

361300R1

O-RING,0.145" ID x 0.07" Width

unlatching piston (5/32 x 9/32 x 1/16")

2шт.

9

361024R1

PISTON

unlatching lower

1шт.

10

VALVE, control (not serviced separately) order body reference no. 25)

1шт.

11

360600R1

VALVE

unlatching

1шт.

12

360601R1

SPRING

unlatching valve

1шт.

13

362164R11

VENT

PLUG and SCREEN ASSEMBLY, control valve orifice

1шт.

14

360596R1

PISTON

unlatching upper

1шт.

15

360604R2

RETAINER, unlatching piston upper (has 9/16-18UNF thread)

1шт.

15

374335R1

RETAINER, unlatching piston upper (has 3/4-16NF thread)

1шт.

16

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

17

360617R11

COVER ASSEMBLY, control valve body

1шт.

SCREW, 3/8 x 1-1/8" hex-hd cap

2шт.

18

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

control valve indexing bushing (11/16 x 7/8 x 3/32")

1шт.

19

360619R1

BUSHING, control valve indexing (used with valves, 365981R92 and 365985R92)

1шт.

19

370697R1

BUSHING, control valve indexing (used with valves, 371061R92 and 371062R92 and 371067R92)

1шт.

21

360620R1

GASKET

control valve cover

1шт.

22

360611R1

GUIDE

control valve

1шт.

23

360612R11

YOKE ASSEMBLY, control valve (optional with 365265R11)

1шт.

23

365265R11

YOKE ASSEMBLY, control valve (optional with 360612R11)

1шт.

25

365986R92

BODY w/FIVE PLUGS, retainer, 360604R2 and valve assembly, control valve (used with valves, 365981R92 and 365985R92)

1шт.

25

371068R92

BODY w/SEVEN PLUGS, retainer, 360604R2 and valve assembly, control valve (used with valves, 371061R92 and 371062R92)

1шт.

25

371071R92

BODY w/FIVE PLUGS, retainer, 374335R1 and valve assembly, control valve (used with valve, 371067R92)

1шт.

26

355967R1

O-RING,0.364" ID x 0.003" Width

control valve lever shaft (3/8 x 1/2 x 1/16")

2шт.

27

360615R1

BUSHING

control valve lever shaft

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

28

360614R1

SHAFT

control valve lever

1шт.

Выбрано товаров: 41
