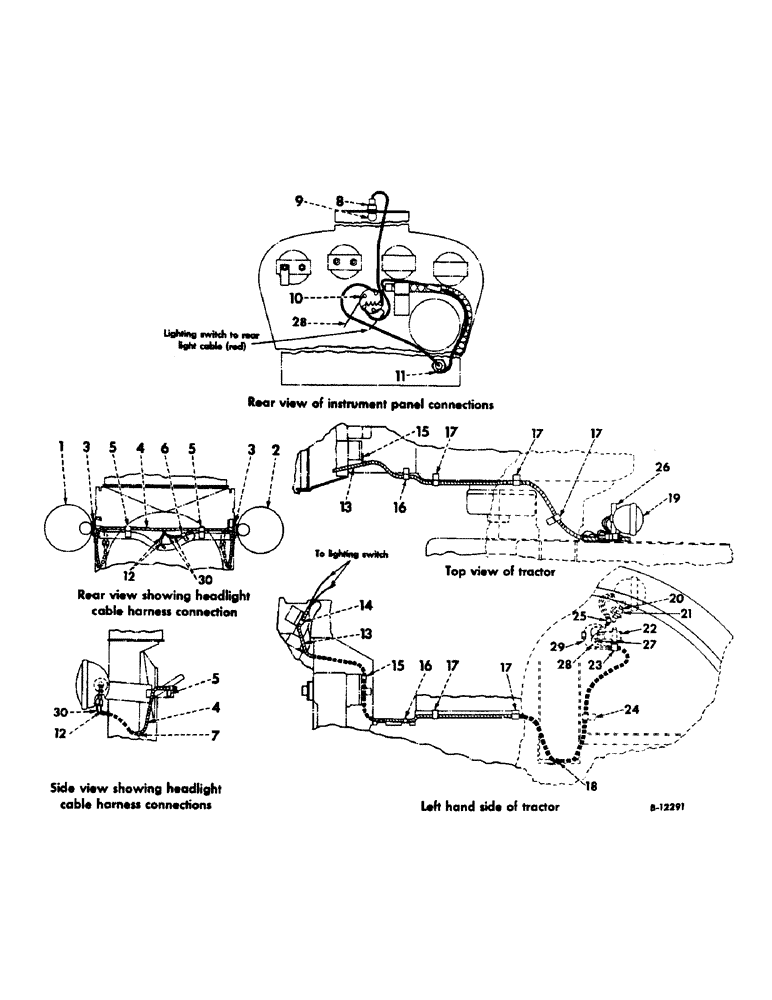

Запчасти Case IH 340 (107) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, INTERNATIONAL 340 TRACTORS W/ORCHARD FENDERS (06) - ELECTRICAL SYSTEMS

1

370709R91

HEADLIGHT ASSEMBLY, LH, sealed beam (guide) (optional with 374207R91) (for components see list of parts under details of "headlight")

1шт.

1

374207R91

HEADLIGHT ASSEMBLY, LH, sealed beam (Dietz) (optional with 370709R91) (for components see list of parts under details of "headlight")

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

2

370711R91

HEADLIGHT ASSEMBLY, RH, sealed beam (guide) (optional with 374208R91) (for components see list of parts under details of "headlight")

1шт.

2

374208R91

HEADLIGHT ASSEMBLY, RH, sealed beam (Dietz) (optional with 370711R91) (for components see list of parts under details of "headlight")

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

3

370307R1

SEAT

headlight mounting ball

2шт.

4

370314R91

HARNESS ASSEMBLY, headlight cable

1шт.

5

362121R1

CLIP

headlight cable harness

2шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

6

42915D

BLOCK

headlight cable harness junction

1шт.

SCREW, no. 10 x 7/8" rd-hd. mach.

1шт.

WASHER, no. 10 lock

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

7

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

headlight cable harness

2шт.

8

363838R91

CABLE

SOCKET ASSEMBLY, instrument light

1шт.

9

125588

BULB,#55, Type C-2R, 6V

instrument light (no. 55-6 volt)

1шт.

10

371464R91

SWITCH

ASSEMBLY, lighting (6 volt)

1шт.

11

370311R91

FUSE CARTRIDGE

HOUSING ASSEMBLY, fuse (Illustrated with "engine controls and instruments")

1шт.

106653

FUSE

20 amp.

1шт.

12

CABLE, headlight to ground (pink) (order harness, 370314R91)

1шт.

13

373988R91

HARNESS ASSEMBLY, rear light and break-away connector socket cable

1шт.

14

355097R1

CLIP, cable harness (on fuel tank and rear cowl support)

1шт.

15

355097R1

CLIP, cable harness (on hydra-touch valve cover upper LH mounting bolt)

2шт.

16

355098R1

CLIP, cable harness (on rear frame cover LH, second bolt from front)

1шт.

17

363842R1

CLIP, cable harness (on LH seat support mounting bolt)

2шт.

18

253313R1

CLIP, cable harness (on top of LH axle housing inner rear bolt)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

19

374213R91

LAMP

REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination (Dietz) (6-volt) (for components see list of parts under details of "combination rear light and tail light") (optional with 374881R91)

1шт.

19

374881R91

LAMP

REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination (guide) (6-volt) (for components see list of parts under details of "combination rear light and tail light") (optional with 374213R91)

1шт.

NUT, 1/2"

1шт.

20

365503R1

SPACER

rear light

1шт.

21

350920R1

CLAMP

rear light

1шт.

22

362002R92

SOCKET

ASSEMBLY, electrical break-away connector

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 1/2" hex.-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

23

362121R1

CLIP

cable harness (on break-away connector lower mounting bolt)

1шт.

24

355097R1

CLIP, rear light cable harness (on fender)

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable harness (on light bracket)

1шт.

26

66724DB

POST ASSEMBLY, rear light

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 3/4" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

27

CABLE, break-away connector socket to ground (pink) (order harness, 373988R91)

1шт.

28

CABLE, break-away connector socket to lighting switch (black) order harness, 373988R91)

1шт.

29

CABLE, lighting switch, rear light terminal to line connector (red) (order harness, 373988R91)

1шт.

30

CABLE, headlight to junction block (black) (order harness, 370314R91)

2шт.
