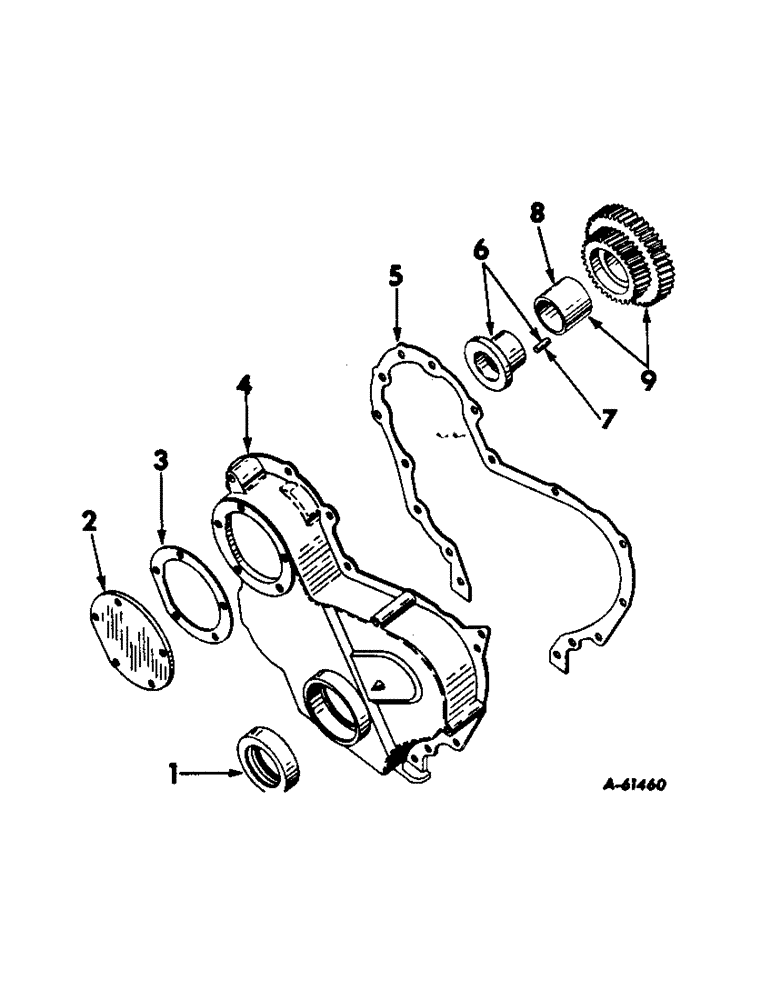

Запчасти Case IH 340 (025) - DIESEL ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

OIL SEAL, crankshaft

1шт.

2

278269R1

COVER ASSY

COVER, injection pump gear

1шт.

SCREW, 5/16 x 9/16" hex-hd. cap

5шт.

WASHER, 5/16" lock

5шт.

3

278270R1

GASKET

injection pump gear cover

1шт.

4

308407R11

COVER W/TWO INSERTS, 319917R1 assembly, crankcase front

1шт.

SCREW, 5/16 x 1" hex-hd. cap

13шт.

SCREW, 5/16 x 2-1/2" hex-hd cap

2шт.

WASHER, 5/16" lock

15шт.

5

308408R1

GASKET

crankcase front cover

1шт.

6

367580R11

HUB

SHAFT ASSEMBLY, idler gear

1шт.

SCREW, 1/2 x 2-1/2" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

7

NLS

NO LONGER SERVICED

idler gear shaft dowel

1шт.

8

367578R1

BUSHING

idler gear

1шт.

9

278263R11

PINION

GEAR ASSEMBLY, idler

1шт.
