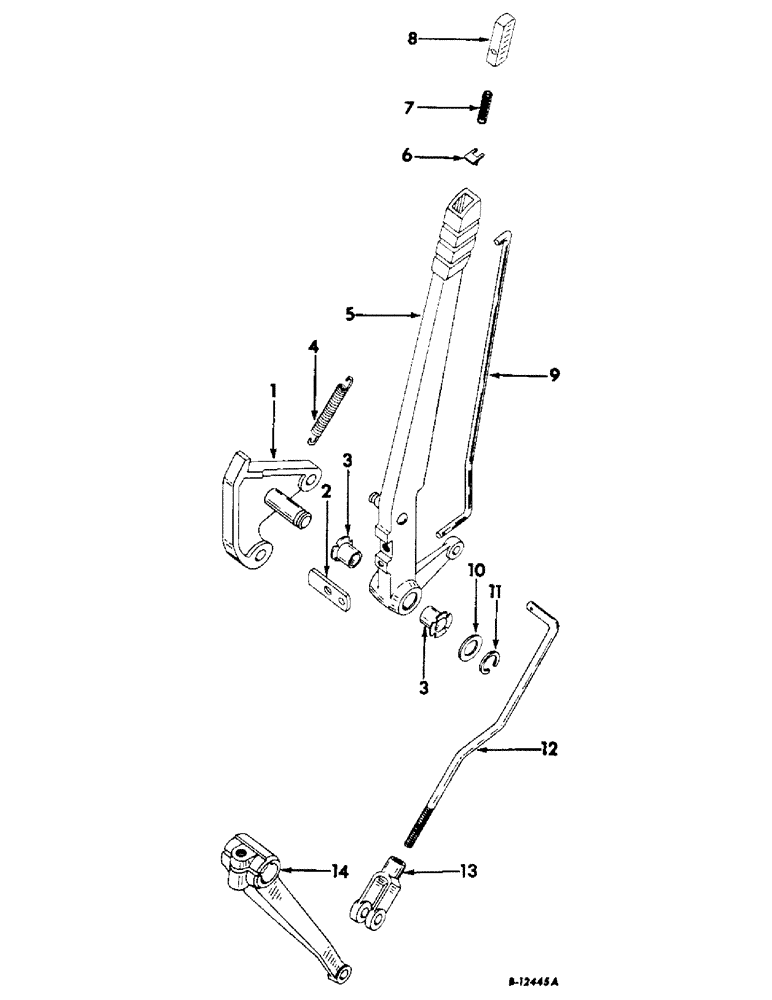

Запчасти Case IH 340 (145) - REAR FRAME & DRIVING MECHANISM, IND. POWER TAKE-OFF, LEVER & CONTROLS, INTL 340 SERIES GROVE TRAC. Rear Frame & Driving Mechanisms

1

377737R11

BRACKET ASSEMBLY, pivot shaft

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4" cap

2шт.

2

373688R1

PAWL, control handle

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

WASHER, 9/32 x 5/8" x .065

1шт.

3

373445R1

BUSHING,22.25mm ID x 22.99mm L

BEARING, control handle pivot

2шт.

4

255297R1

SPRING, control handle retaining

1шт.

5

377735R11

HANDLE ASSEMBLY, control

1шт.

6

373447R1

PLATE, control handle button spring

1шт.

7

373448R1

SPRING

control handle

1шт.

8

373449R1

BUTTON

control handle

1шт.

9

377736R1

ROD, control handle

1шт.

10

370451R1

WASHER

control handle

1шт.

11

373522R1

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, , control handle #87, .668" Dia, E-Type

1шт.

12

377738R1

ROD, control

1шт.

PIN, 3/16 x 1" cotter

1шт.

WASHER, 17/32 x 1-1/16" x .095

1шт.

13

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2" adjustable rod end

1шт.

NUT, 1/2 NF jam

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2" rod end

1шт.

PIN, 1/4 x 3/4" cotter

1шт.

14

377739R1

LEVER, cross shaft

1шт.

NLS

NO LONGER SERVICED

no. 15 Woodruff

1шт.

SCREW, 7/16 x 2" cap

1шт.
