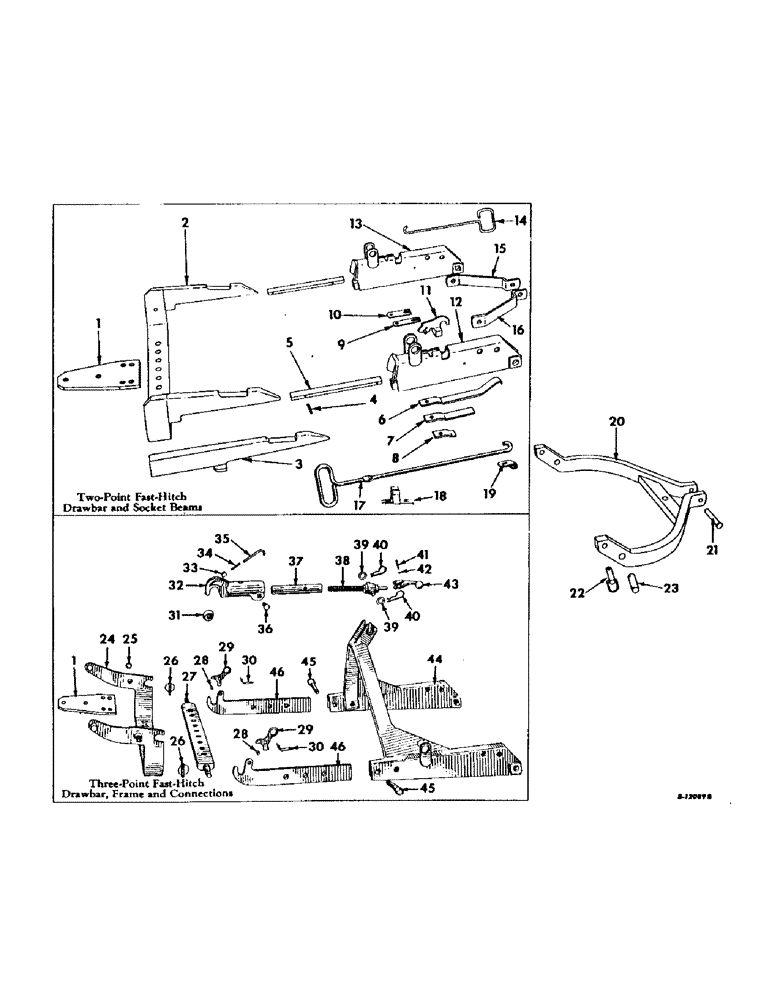

Запчасти Case IH 340 (248) - DRAWBARS AND HITCHES, 2-PT & 3-PT FAST-HITCH W/TRACTION CONTROL & TEL-A-DEPTH, BAIL & CONNECTIONS Drawbar & Hitches

1

364013R2

PLATE, drawbar extension (provides standardized power take-off hitch for tractors equipped with independent driven power take-off) (see note A)

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

2

523089R91

DRAWBAR (A and B only)

1шт.

2

520969R91

DRAWBAR (C and D only)

1шт.

3

521021R11

BEAM, coupling (use to adapt allied implements for use with fast-hitch by welding or drilling holes and bolting to the implement) (see note A) (A, B, C and D only)

1шт.

4

657196R1

PIN

1/4 x 2" roll (used with ref. 5) (see note A) (A, B, C and D only)

2шт.

5

523387R11

PLATE W/PIN ASSEMBLY, filler (see note A) (A, B, C and D only)

2шт.

Q1404

AXLE PIN

PIN, 1/4 x 2-1/4" dld. std-hd. (A, B, C and D only)

2шт.

PIN, 1/8 x 3/4" self-opening cotter (A, B, C and D only)

2шт.

6

522836R1

SPRING

beam socket leaf (long) (A, B, C and D only)

2шт.

7

522835R1

SPRING

beam socket leaf (medium) (A, B, C and D only)

2шт.

8

522834R1

VALVE SPRING

SPRING, beam socket leaf (short) (A, B, C and D only)

2шт.

SCREW, 1/2 x 1-3/4" hex-hd. cap (A, B, C and D only)

2шт.

9

522839R1

VALVE SPRING

SPRING, latch (A, B, C and D only)

2шт.

10

522840R1

SPRING

latch auxiliary (A, B, C and D only)

2шт.

SCREW, 3/8 x 1/2" hex-hd. cap (A, B, C and D only)

2шт.

11

523110R2

LATCH

coupling beam (A, B, C and D only)

2шт.

12

522814R91

SOCKET, RH beam (A, B, C and D only)

1шт.

13

522813R91

SOCKET, LH beam (A and B only)

1шт.

13

522815R91

SOCKET, LH beam (C and D only)

1шт.

14

520959R1

HOOK, latch (C and D only)

1шт.

15

523185R1

BRACE, LH drawbar stabilizer (see note A) (A and B only)

1шт.

15

523176R1

BRACE, LH drawbar stabilizer (see note A) (C and D only)

1шт.

NUT, 3/4" (A, B, C and D only)

2шт.

SCREW, 3/4" x 2" hex-hd. cap (A, C and D only)

1шт.

SCREW, 3/4 x 3-1/4" hex-hd. cap (A, C and D only)

1шт.

WASHER, 3/4" lock (A, B, C and D only)

2шт.

16

523186R1

BRACE, RH drawbar stabilizer (see note A) (A and B only)

1шт.

16

523176R1

BRACE, RH drawbar stabilizer (see note A) (C and D only)

1шт.

NUT, 3/4" (A, B, C and D only)

1шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap (A, B, C and D only)

1шт.

SCREW, 3/4 x 3-1/4" hex-hd. cap (A, B, C and D only)

1шт.

WASHER, 3/4" lock (A, B, C and D only)

1шт.

17

360378R2

HOOK, latch (A and B only)

1шт.

18

371557R91

BRACKET ASSEMBLY, latch hook spring clip (A and B only)

1шт.

19

523440R1

SUPPORT, latch hook (A and B only)

1шт.

20

523870R91

BAIL, hitch (A, B and E only)

1шт.

20

523869R91

BAIL, hitch (C, D and F only)

1шт.

21

523866R1

PIN

hitch point pivot (A, B, C and D only)

1шт.

1/4 x 1-1/4" self-opening cotter pin (A, B, C and D only)

1шт.

22

522841R11

PIN

pivot lock-out socket (A, B, C and D only)

1шт.

23

525469R11

PIN,25.4mm OD x 77.79mm L

ASSEMBLY, beam socket (A, B, C, D, E and F only)

2шт.

PIN, 5/16 x 1-1/2" cotter (A, B, C, D, E and F only)

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

(A, B, C, D, E and F only) 5/16" x 1 1/2", Coiled

2шт.

24

372473R11

CRADLE ASSEMBLY, drawbar (used on Farmall 340 series tractors with power take-off or swinging drawbar) (see note A) (E only)

1шт.

24

372472R11

CRADLE ASSEMBLY, drawbar (used on International 340 series tractors with power take-off or swinging drawbar) (see note A) (F only)

1шт.

SCREW, 3/4 x 4-1/2" hex-hd. cap (E and F only)

2шт.

25

372849R1

SPACER, cradle adapter loose (see note A) (E and F only)

2шт.

26

372907R91

LINCH PIN

PIN ASSEMBLY, drawbar (used only with drawbar, 370799R1) (see note A) (E and F only)

2шт.

27

370799R2

DRAWBAR (used on tractors without independent power take-off) (see note A) (E and F only)

1шт.

28

690693R1

PIN

1/2 x 1" roll (implement latch retainer) (E, F and G only)

2шт.

29

372460R11

LATCH

W/PIN, 17132R1 and pin, 690693R1, assembly, implement retainer (E, F and G only)

2шт.

PIN, 1/4 x 1" roll (E, F and G only)

2шт.

30

372461R1

SUPPORT

SPRING, implement retainer latch (E, F and G only)

2шт.

SCREW, 3/8 x 1/2" hex-hd. cap (E, F and G only)

2шт.

31

372469R1

BALL

implement attaching (E, F and G only)

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16" headed (E, F and G only)

1шт.

32

372466R1

HOUSING, upper link (E, F and G only)

1шт.

33

372471R1

LATCH, upper link (E, F and G only)

1шт.

PIN, 1/8 x 1/2" roll (E, F and G only)

1шт.

34

2063A

SPRING

upper latch link (E, F and G only)

1шт.

35

372470R1

EYE BOLT, upper link latch (E, F and G only)

1шт.

36

372468R1

BOLT, upper link housing (E, F and G only)

1шт.

NUT, 1/2" (E, F and G only)

1шт.

WASHER, 1/2" lock (E, F and G only)

1шт.

37

372838R2

SLEEVE, upper link screw housing (E, F and G only)

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, (E, F and G only) 1/4" x 7/8", Slotted

1шт.

38

373010R11

SCREW ASSEMBLY, upper link adjusting (E, F and G only)

1шт.

39

372465R1

WASHER

BEARING, upper link trunnion pivot (E, F and G only)

2шт.

40

520175R1

CLIP

PIN, quick attachable cotter (E, F and G only)

4шт.

41

373011R1

PIN, upper link adjusting screw handle (E, F and G only)

1шт.

42

373009R1

RING, adjusting screw handle pin, snap (E, F and G only)

1шт.

43

372949R1

HANDLE, upper link adjusting screw (E, F and G only)

1шт.

44

372447R92

FRAME ASSEMBLY, implement attaching (E, F and G only)

1шт.

45

517853R12

PIN

ASSEMBLY, drawbar attaching bar (used only with cradles, 372472R11 and 372473R11) (see note A) (E and F only)

2шт.

46

372459R1

BAR, implement attaching (E, F and G only)

2шт.

NUT, 3/4" (E, F and G only)

2шт.

SCREW, 3/4 x 2-3/4" hex-hd. cap (E, F and G only)

2шт.
