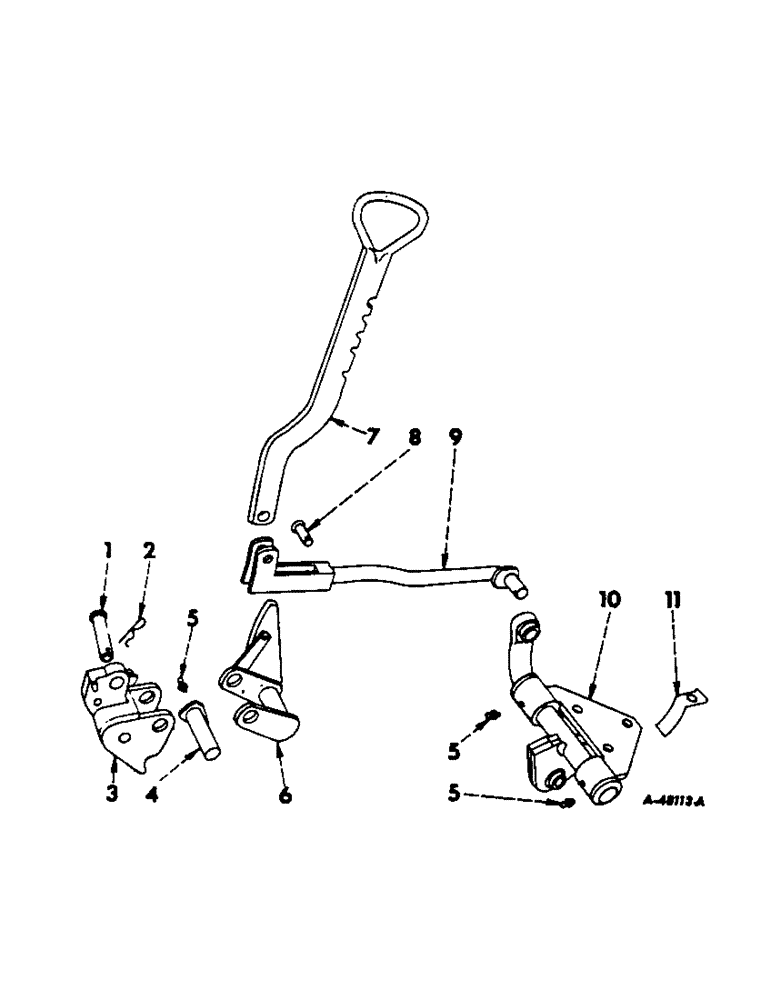

Запчасти Case IH 340 (246) - DRAWBARS AND HITCHES, 2-PT FAST-HITCH W/TRACTION CONTROL, TRACTION CONTROL, INTERNATIONAL 330 Drawbar & Hitches

1

523114R1

PIN,19.05mm OD x 93.66mm L

hitch vertical float lock

1шт.

2

520175R1

CLIP

PIN, quick-attachable (drawbar lock-out)

1шт.

3

523145R3

BELLCRANK, cylinder traction control

1шт.

4

523137R91

SHAFT ASSEMBLY, traction control pivot

1шт.

BOLT, 1/4 x 1/2" hex-hd. mach.

1шт.

5

110161

FITTING, 3/16" straight drive type lubrication (optional with 125617)

1шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 110161)

1шт.

6

523141R91

BRACKET, traction control cam

1шт.

7

522784R11

HANDLE, traction control adjusting

1шт.

8

522747R1

PIN

traction control lever

1шт.

PIN, 3/16 x 1" self-opening cotter

1шт.

9

522782R11

LINK, traction control

1шт.

PIN, 1/4 x 1-1/2" self-opening cotter

1шт.

Q3481

WASHER

1-1/32 x 1-1/2" x 16 ga.

1шт.

10

522804R92

BRACKET, bail pivot

1шт.

523433R1

BOLT

SCREW, bail pivot bracket cap

3шт.

523438R1

WIRE, bail pivot bracket (no. 16 ga. x 36")

1шт.

11

523131R1

GUARD, stop plate (on bail pivot bracket screw)

1шт.
