Запчасти Case IH 340 (242) - DRAWBARS AND HITCHES, FIXED DRAWBAR, INTERNATIONAL 340 SERIES GROVE TRACTOR Drawbar & Hitches

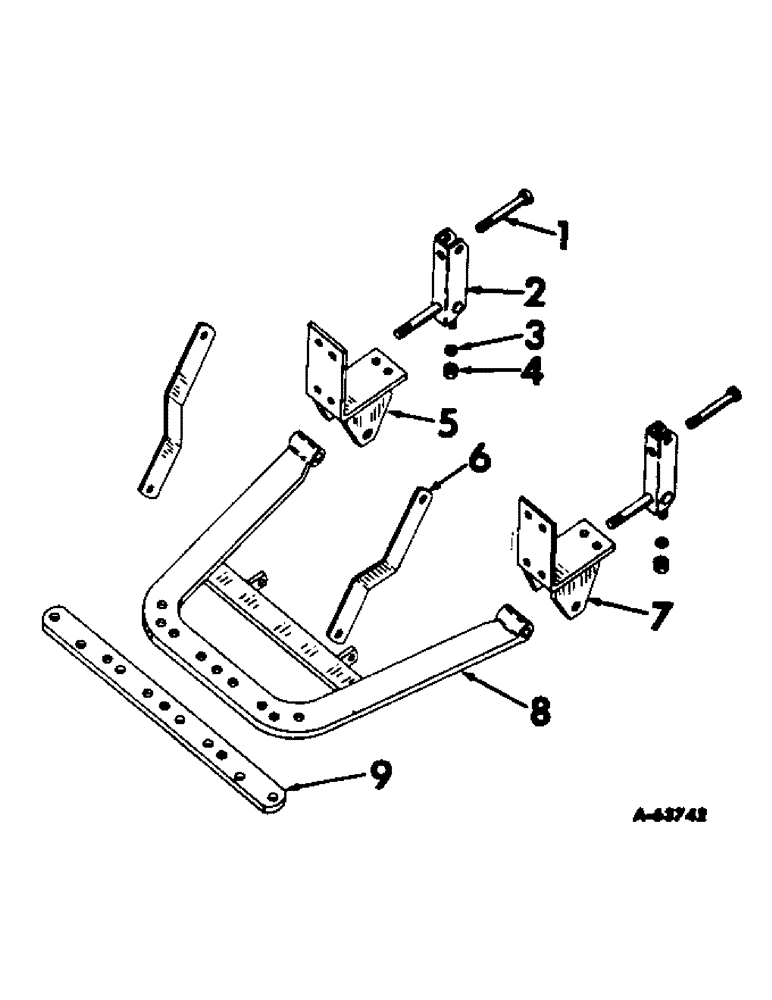

Схема запчастей Case IH 340 - (242) - DRAWBARS AND HITCHES, FIXED DRAWBAR, INTERNATIONAL 340 SERIES GROVE TRACTOR Drawbar & Hitches
9
4
1
2
6
5
8
3
7

Артикул

Название

Примечание

Количество

1

43685D

BOLT

drawbar attaching

2шт.

NUT, 3/4NF

4шт.

2

377482R11

CHANNEL ASSEMBLY, drawbar attaching

2шт.

3

Q1552

WASHER

drawbar eyebolt

2шт.

4

357790R1

NUT

drawbar eyebolt

2шт.

5

377485R91

SUPPORT ASSEMBLY, drawbar bracket LH

1шт.

NUT, 7/8NF

1шт.

SCREW, 7/8NF x 4-3/4" cap

1шт.

6

377481R1

BRACE, drawbar

2шт.

NUT, 3/4NF

2шт.

SCREW, 3/4NF x 1-3/4" cap

2шт.

SCREW, 3/4 x 1-1/2" cap

2шт.

7

377486R91

SUPPORT ASSEMBLY, drawbar bracket RH

1шт.

NUT, 7/8NF

1шт.

SCREW, 7/8NF x 4-3/4" cap

1шт.

8

377478R11

DRAWBAR ASSEMBLY

1шт.

9

57657D

BRACE, drawbar support

2шт.

Выбрано товаров: 17
