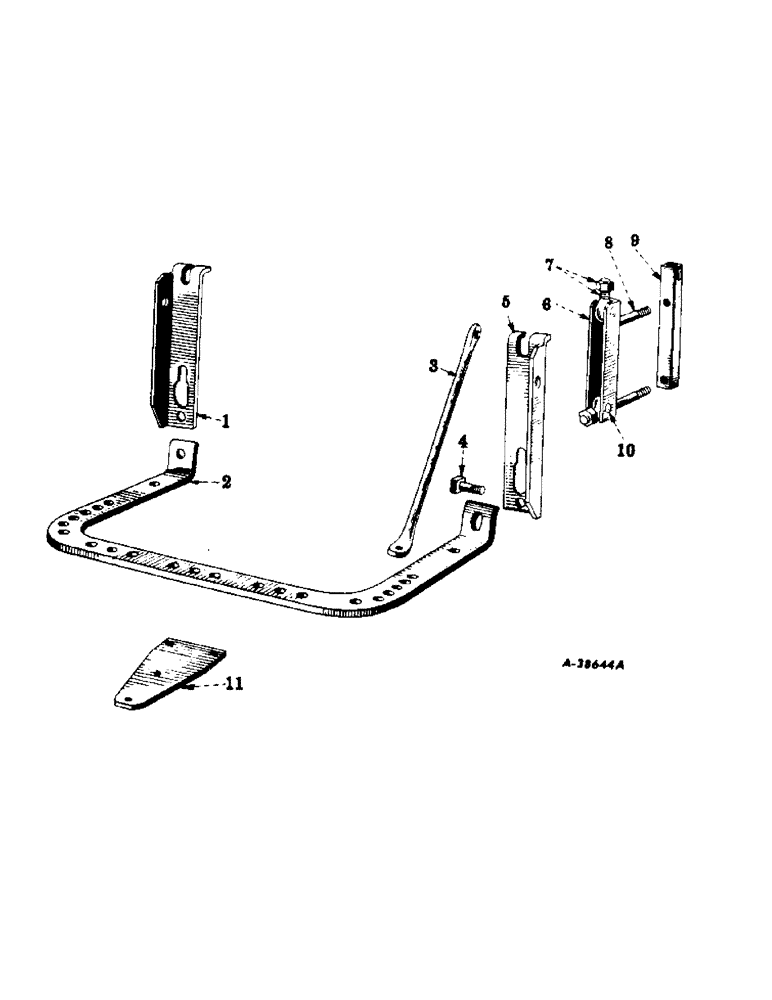

Запчасти Case IH 340 (241) - DRAWBARS AND HITCHES, FIXED DRAWBAR, INTERNATIONAL 330, 340 AND 340 DIESEL Drawbar & Hitches

1

363990R1

ANGLE, drawbar LH

1шт.

2

57227DB

DRAWBAR

1шт.

3

363992R1

BRACE, drawbar

2шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap

2шт.

SCREW, 3/4 x 1-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

drawbar pivot

2шт.

NUT, 3/4"

2шт.

WASHER, 3/4" lock

2шт.

5

363991R1

ANGLE, drawbar RH

1шт.

6

51716DXB

CHANNEL

ASSEMBLY, drawbar attaching, composed of (2) bolt 43685D, (1) channel 51716D (NSS), (2) eyebolt 48291DAX, (2) pin 43690D

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

EYEBOLT ASSEMBLY, drawbar

4шт.

357790R1

NUT

drawbar eyebolt

4шт.

Q1552

WASHER

25/32 x 1-1/4" x 10 ga.

4шт.

8

43685D

BOLT

drawbar attaching

4шт.

NUT, 3/4NF

4шт.

WASHER, 3/4" lock

4шт.

9

51715DA

CLAMP, drawbar attaching

2шт.

10

43690D

PIN

drawbar attaching channel

4шт.

11

66426D

PLATE, drawbar extension (provides standardized power take-off hitch for tractors equipped with independent or transmission driven power take-off)

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.
