Запчасти Case IH 340 (103) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, INTERNATIONAL 340 SERIES (06) - ELECTRICAL SYSTEMS

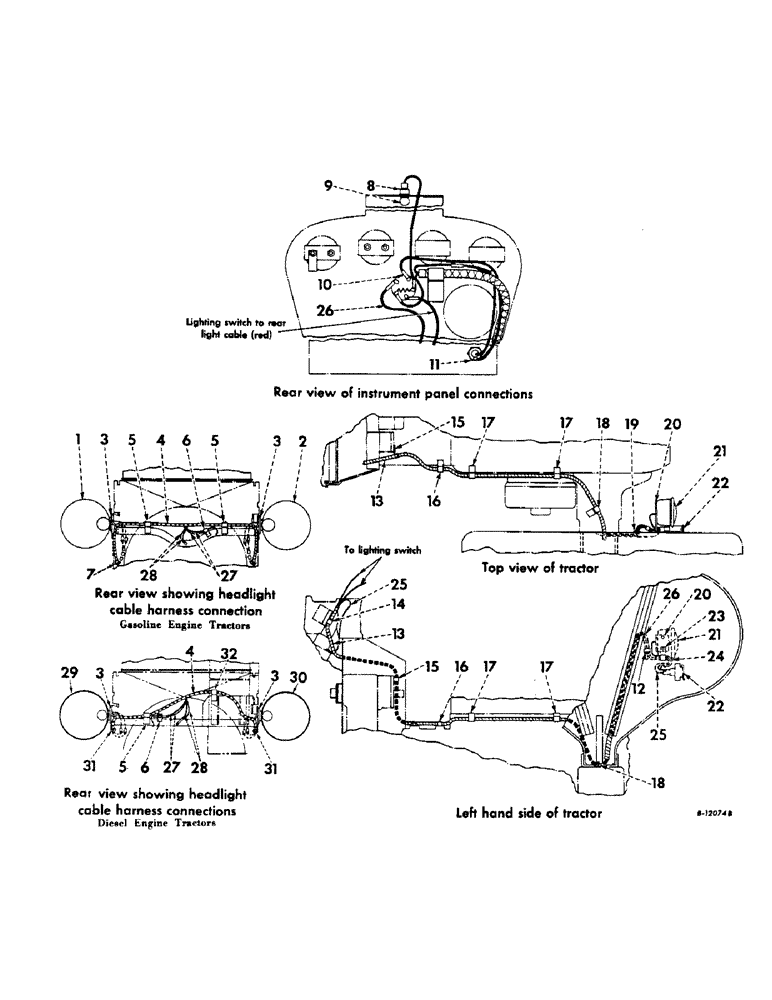

Схема запчастей Case IH 340 - (103) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, INTERNATIONAL 340 SERIES (06) - ELECTRICAL SYSTEMS
18
10
31
1
20
28
26
3
16
3
16
22
25
15
22
3
26
21
15
28
21
17
25
24
6
13
2
9
5
4
12
18
27
31
30
23
29
27
17
3
4
7
5
13
19
32
5
14
17
17
8
20
6
11

Артикул

Название

Примечание

Количество

1

370709R91

HEADLIGHT ASSEMBLY, LH, sealed beam (guide) (6 volt) (optional with 374207R91) (for components see list of parts under details of "headlight") (unit A)

1шт.

1

374207R91

HEADLIGHT ASSEMBLY, LH, sealed beam (Dietz) (6 volt) (optional with 370709R91) (for components see list of parts under details of parts under details of "headlight") (unit A)

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

2

370711R91

HEADLIGHT ASSEMBLY, RH, sealed beam (guide) (6 volt) (optional with 374208R91) (for components see list of parts under details of "headlight") (unit A)

1шт.

2

374208R91

HEADLIGHT ASSEMBLY, RH, sealed beam (Dietz) (6 volt) (optional with 370711R91) (for components see list of parts under details of "headlight") (unit A)

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

3

370307R1

SEAT

headlight mounting ball

2шт.

4

370314R91

HARNESS ASSEMBLY, headlight cable

1шт.

5

362121R1

CLIP

headlight cable harness

2шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

6

42915D

BLOCK

headlight cable harness junction

1шт.

SCREW, no. 10 x 7/8" rd-hd. mach.

1шт.

WASHER, no. 10 lock

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

7

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

headlight cable harness (unit A)

2шт.

8

363838R91

CABLE

SOCKET ASSEMBLY, instrument light

1шт.

9

125588

BULB,#55, Type C-2R, 6V

instrument light (no. 55-6 volt) (unit A)

1шт.

9

A14553

BULB

instrument light (no. 57-12 volt) (unit B)

1шт.

10

371464R91

SWITCH

ASSEMBLY, lighting (6 volt) (unit A)

1шт.

10

371465R91

KIT

SWITCH ASSEMBLY, lighting (12 volt) (unit B)

1шт.

11

370311R91

FUSE CARTRIDGE

HOUSING ASSEMBLY, fuse (Illustrated with "engine controls and instruments")

1шт.

106653

FUSE

20 amp. (unit A)

1шт.

10815V

FUSE

10 amp. (unit B)

1шт.

12

376749R1

BODY

connector

1шт.

13

370315R91

HARNESS ASSEMBLY, tail light and break-away connector socket cable

1шт.

14

355097R1

CLIP, cable harness (on fuel tank and rear cowl support)

1шт.

15

355097R1

CLIP, cable harness (on hydra-touch valve cover upper LH mounting bolt)

1шт.

16

355098R1

CLIP, cable harness (on rear frame cover LH, second bolt from front)

1шт.

17

363842R1

CLIP, cable harness (on LH seat support mounting bolt)

2шт.

18

253313R1

CLIP, cable harness (on top of LH axle housing inner rear bolt)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

19

363846R1

GROMMET

tail light and break-away connector socket cable harness

1шт.

20

370308R1

BRACKET, tail light

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

21

370716R91

TAIL LIGHT ASSEMBLY, (for components see list of parts under details of "tail light") (6 volt) (unit A)

1шт.

21

370306R91

TAIL LIGHT ASSEMBLY, (for components see list of parts under details of "tail light") (12 volt) (unit B)

1шт.

NUT, 1/4"

2шт.

WASHER, 1/4" lock

2шт.

22

362002R92

SOCKET

ASSEMBLY, electrical break-away connector

1шт.

NUT, 1/4"

2шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

23

362121R1

CLIP

cable harness (on tail light bracket lower mounting bolt)

1шт.

24

CABLE, tail light to break-away connector socket (see "tail light" for service)

1шт.

25

CABLE, break-away connector socket to ground (pink) (order harness, 370315R91)

1шт.

26

CABLE, break-away connector socket to lighting switch (black) (order harness, 370315R91)

1шт.

27

CABLE, headlight to junction block (black) (order harness, 370314R91)

2шт.

28

CABLE, headlight to ground (pink) (order harness, 370314R91)

1шт.

29

370299R91

HEADLIGHT

ASSEMBLY, LH, sealed beam (guide) (12 volt) (optional with 374181R91) (for components see list of parts under details of "headlight") (unit B)

1шт.

29

374181R91

LAMP

HEADLIGHT ASSEMBLY, LH, sealed beam (Dietz) (12 volt) (optional with 370299R91) (for components see list of parts under details of "headlight") (unit B)

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

30

370301R91

HEADLIGHT

ASSEMBLY, RH, sealed beam (guide) (12 volt) (optional with 374182R91) (for components see list of parts under details of "headlight") (unit B)

1шт.

30

374182R91

LAMP

HEADLIGHT ASSEMBLY, RH, sealed beam (Dietz) (12 volt) (optional with 370301R91) (for components see list of parts under details of "headlight") (unit B)

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

31

366460R1

CABLE CLIP

CLIP, headlight cable harness (unit B)

2шт.

32

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, headlight cable harness (on air cleaner bracket LH upper mounting bolt) (unit B)

1шт.

1/4 x 1/2" hex-hd. cap

1шт.

WASHER, 1/4" lock

1шт.
