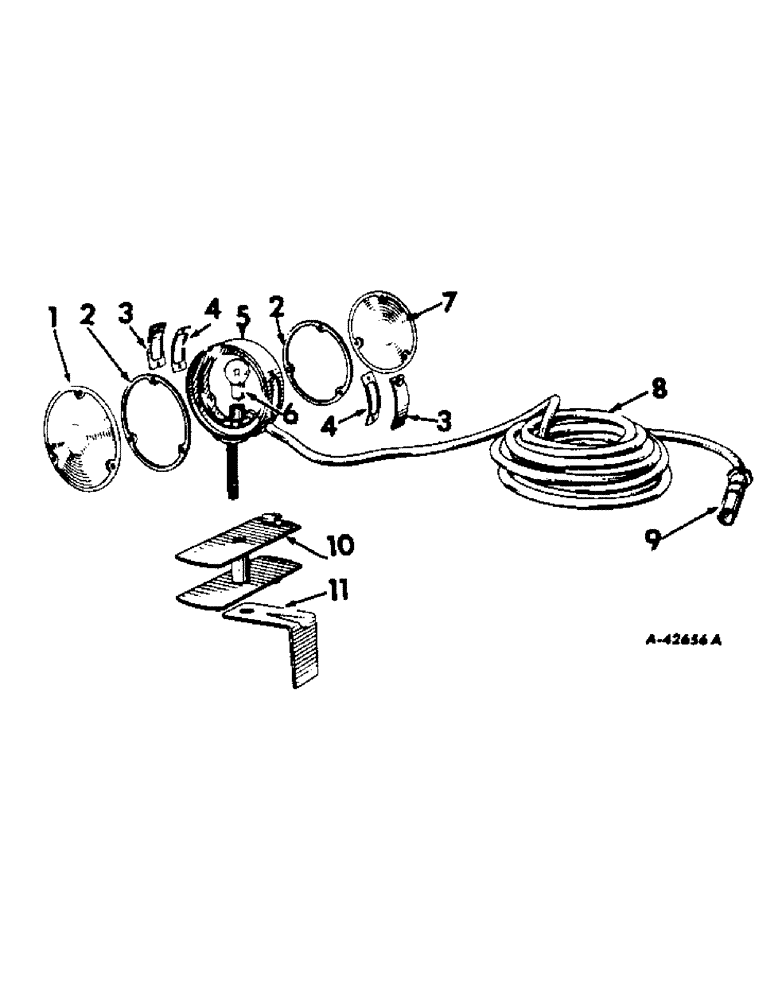

Запчасти Case IH 340 (087) - ELECTRICAL SYSTEM, SAFETY LIGHT (06) - ELECTRICAL SYSTEMS

367813R91

LIGHT ASSEMBLY, safety (6 volt)

1шт.

367814R91

LIGHT ASSEMBLY, safety (12 volt)

1шт.

1

120578R1

LENS, safety light (red)

1шт.

SCREW, no. 6 x 1/2" cd-pltd. slt-rd-hd. mach.

3шт.

2

120576R1

GASKET, safety light lens

2шт.

3

365754R1

LENS, safety light outlook

2шт.

SCREW, no. 6-20 x 5/16" cd-pltd. slt-rd-hd. tapping

4шт.

4

365755R1

GASKET, safety light outlook lens

2шт.

5

BODY, safety light (not serviced separately, order safety light assembly)

1шт.

NUT, 7/16" cd-pltd.

1шт.

WASHER, 7/16" cd-pltd. lock

1шт.

6

103642

GLAND,#1129, Type C-6, 6V

BULB, no. 1129 (6 volt)

1шт.

6

33686

BULB

no. 1141 (12 volt)

1шт.

7

120577R1

LENS, safety light (amber)

1шт.

SCREW, no. 6 x 1/2" cd-pltd. slt-rd-hd.

3шт.

8

365752R91

CABLE, safety light (22-ft.)

1шт.

9

364559R91

PLUG

break-away connector socket (for use with 21/64" OD cable)

1шт.

10

365753R91

SPOOL ASSEMBLY, safety light

1шт.

11

365756R1

BRACKET, safety light mounting

1шт.
