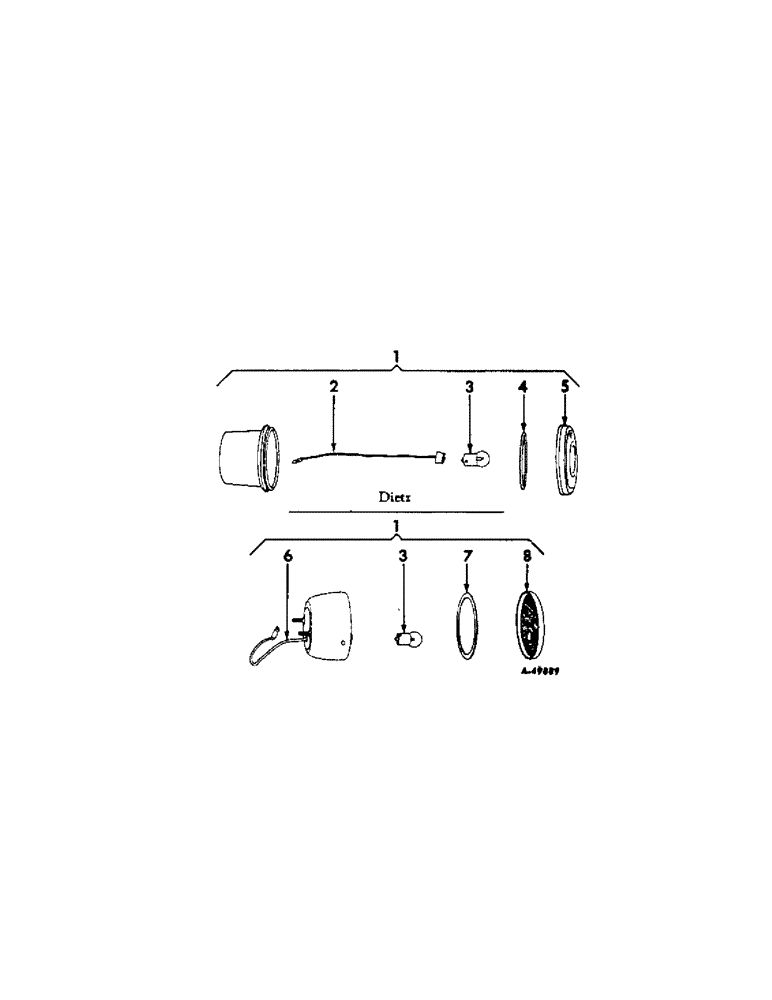

Запчасти Case IH 340 (082) - ELECTRICAL SYSTEM, TAIL LIGHT, INTERNATIONAL 340 SERIES (06) - ELECTRICAL SYSTEMS

1

370716R91

LIGHT ASSEMBLY, tail (6 volt)

1шт.

1

370306R91

LIGHT ASSEMBLY, tail (12 volt)

1шт.

2

371951R91

WIRE ASSEMBLY, tail light, Dietz

1шт.

3

86982698

LAMP

BULB, no. 63 (6 volt)

1шт.

3

142450

BULB,C2R, #67, 13.5V

no. 67 (12 volt)

1шт.

4

371950R1

O-RING, tail light lens, Dietz

1шт.

5

371949R1

LENS, tail light, Dietz

1шт.

6

371957R91

WIRING ASSEMBLY, tail light, grote

1шт.

6

371954R91

WIRING ASSEMBLY, tail light, guide

1шт.

7

81714R1

GASKET

tail light lens, grote

1шт.

7

137473R1

GASKET, tail light lens, guide

1шт.

8

157729R1

LENS

tail light, grote

1шт.

Item 8. Snap in lens (if needed) is 280579a1.

1шт.

SCREW, no. 8 x 5/8" slt-rd-hd-mach.

2шт.

8

137472R1

LENS, tail light, guide

1шт.

SCREW, no. 8 x 5/8" slt-pan-hd. tapping

2шт.
